Page 411

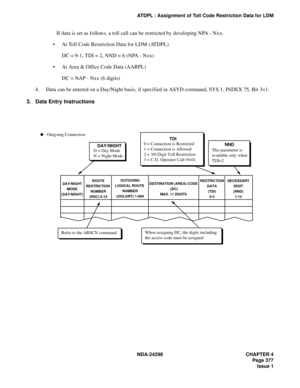

NDA-24298 CHAPTER 4 Page 377 Issue 1 ATDPL : Assignment of Toll Code Restriction Data for LDM If data is set as follows, a toll call can be restricted by developing NPA - Nxx. At Toll Code Restriction Data for LDM (ATDPL) DC = 9-1, TDI = 2, NND = 6 (NPA - Nxx) At Area & Office Code Data (AARPL) DC = NAP - Nxx (6 digits) 4. Data can be entered on a Day/Night basis, if specified in ASYD command, SYS 1, INDEX 75, Bit 3=1. 3. Data Entry Instructions NND This parameter is available only when TDI=2...
Page 412
CHAPTER 4 NDA-24298 Page 378 Issue 1 ATDPL : Assignment of Toll Code Restriction Data for LDM 4. Data Sheet DAY /N IG HT MODE (DAY/NIGHT) D/NROUTE RESTRICTION NUMBER (RSC) 0-15OUTGOING LOGICAL ROUTE NUMBER (OGLGRT) 1-899DESTINATION (AREA) CODE (DC) MAX. 11 DIGITSRESTRICTION DATA (TDI) 0-3NECESSARY DIGIT (NND) 1-12
Page 413
NDA-24298 CHAPTER 4 Page 379 Issue 1 ATDPN : Assignment of Toll Code Restriction Data for NDM ATDPN: Assignment of Toll Code Restriction Data for NDM 1. General This command assigns the area code of Toll Restriction - 3/6 digits for both an outgoing connection and a tandem connection. This data is written in the Network Data Memory (NDM) of the Network Control Node (NCN). The data assigned by this command is used in common within the Fusion Network. 2. Precautions 1. This command is used when...
Page 414
CHAPTER 4 NDA-24298 Page 380 Issue 1 ATDPN : Assignment of Toll Code Restriction Data for NDM If data is set as follows, a toll call can be restricted by developing NPA - Nxx. At Toll Code Restriction Data (ATDPN) DC = 9-1, TDI = 2, NND = 6 (NPA - Nxx) At Area & Office Code Data (AARPN) DC = NAP - Nxx (6 digits) 4. Data can be entered on a Day/Night basis, if specified by the ASYDN command, SYS 1, INDEX 75, Bit 3 = 1. 5. The rest of the parameter appearance depends on the data entered in TDM/OG...
Page 415

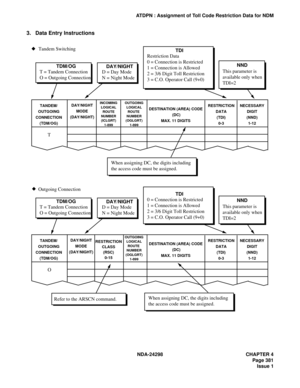

NDA-24298 CHAPTER 4
Page 381
Issue 1
ATDPN : Assignment of Toll Code Restriction Data for NDM
3. Data Entry Instructions
Tandem Switching
TANDEM/
OUTGOING
CONNECTION
(TDM/OG)DAY/NIGHT
MODE
(DAY/NIGHT)INCOMING
LOGICAL
ROUTE
NUMBER
(ICLGRT)
1-899OUTGOING
LOGICAL
ROUTE
NUMBER
(OGLGRT)
1-899
RESTRICTION
CLASS
(RSC)
0-15OUTGOING
LOGICAL
ROUTE
NUMBER
(OGLGRT)
1-899
DESTINATION (AREA) CODE
(DC)
MAX. 11 DIGITSNECESSARY
DIGIT
(NND)
1-12 RESTRICTION
DATA
(TDI)
0-3
T = Tandem Connection
O = Outgoing...
Page 416
CHAPTER 4 NDA-24298 Page 382 Issue 1 ATDPN : Assignment of Toll Code Restriction Data for NDM 4. Data Sheet (a) Tandem Connection (TDM/OG = T) TANDEM/ OUTGOING T/ODAY/NIGHT MODE (DAY/NIGHT) D/NINCOMING LOGICAL ROUTE NUMBER (ICLGRT) 1-899OUTGOING LOGICAL ROUTE NUMBER (OGLGRT) 1-899DESTINATION (AREA) CODE (DC) MAXIMUM 11 DIGITSRESTRICTION DATA (TDI) 0-3NECESSARY DIGIT (NND) 1-12 T
Page 417
NDA-24298 CHAPTER 4 Page 383 Issue 1 ATDPN : Assignment of Toll Code Restriction Data for NDM (b) Outgoing Connection (TDM/OG = O) TANDEM/ OUTGOING (TDM/OG)DAY/NIGHT MODE (DAY/NIGHT) D/NROUTE RESTRICTION NUMBER (RSC) 0-15OUTGOING LOGICAL ROUTE NUMBER (OGLGRT) 1-899DESTINATION (AREA) CODE (DC) MAX. 11 DIGITSRESTRICTION DATA (TDI) 0-3NECESSARY DIGIT (NND) 1-12 O
Page 418

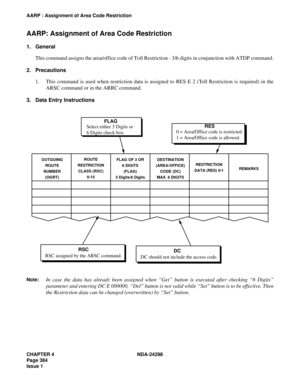

CHAPTER 4 NDA-24298 Page 384 Issue 1 AARP : Assignment of Area Code Restriction AARP: Assignment of Area Code Restriction 1. General This command assigns the area/office code of Toll Restriction - 3/6 digits in conjunction with ATDP command. 2. Precautions 1. This command is used when restriction data is assigned to RES E 2 (Toll Restriction is required) in the ARSC command or in the ARRC command. 3. Data Entry Instructions Note:In case the data has already been assigned when “Get” button is executed...
Page 419
NDA-24298 CHAPTER 4 Page 385 Issue 1 AARP : Assignment of Area Code Restriction 4. Data Sheet OUTGOING ROUTE NUMBER (OGRT)ROUTE RESTRICTION CLASS (RSC) 0 -15FLAG OF 3 OR 6 DIGITS (FLAG) 3 Digits/6 DigitsDESTINATION (AREA/OFFICE) CODE (DC) MAX. 6 DIGITSRESTRICTION DATA (RES) 0/1REMARKS
Page 420

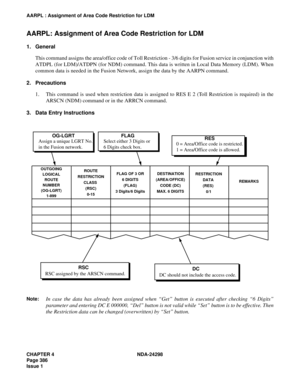

CHAPTER 4 NDA-24298 Page 386 Issue 1 AARPL : Assignment of Area Code Restriction for LDM AARPL: Assignment of Area Code Restriction for LDM 1. General This command assigns the area/office code of Toll Restriction - 3/6 digits for Fusion service in conjunction with ATDPL (for LDM)/ATDPN (for NDM) command. This data is written in Local Data Memory (LDM). When common data is needed in the Fusion Network, assign the data by the AARPN command. 2. Precautions 1. This command is used when restriction data is...
