NEC Neax 2400 Ipx Office Data Specification

NDA-24298 CHAPTER 4
Page 387
Issue 1
AARPL : Assignment of Area Code Restriction for LDM
4. Data Sheet
OUTGOING
LOGICAL
 ROUTE NUMBER
 (OG-LGRT)
1-899ROUTE
 RESTRICTION
 CLASS
(RSC)
 0 -15FLAG OF
3 OR 6 DIGITS
(FLAG)
3 Digits/6 DigitsDESTINATION
 (AREA/OFFICE)
 CODE
 (DC)
MAX. 6 DIGITSRESTRICTION DATA
 (RES)
0/1REMARKS

CHAPTER 4 NDA-24298
Page 388
Issue 1
AARPN : Assignment of Area Code Restriction for NDM
AARPN: Assignment of Area Code Restriction for NDM
1. General
This command assigns the area/office code of Toll Restriction - 3/6 digits for Fusion service in conjunction with
ATDPL (for LDM)/ATDPN (for NDM) command. This data is written in Network Data Memory (NDM) of the
Network Control Node (NCN).
2. Precautions
1. This command is used when restriction data is assigned to RES E 2 (Toll Restriction is required) in...

NDA-24298 CHAPTER 4
Page 389
Issue 1
AARPN : Assignment of Area Code Restriction for NDM

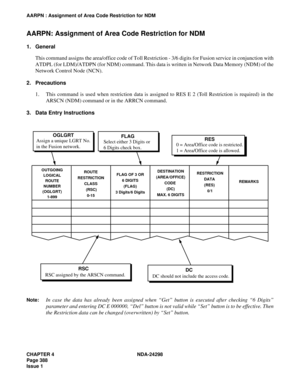

4. Data Sheet
OUTGOING
LOGICAL
 ROUTE NUMBER
 (OGLGRT)
1-899ROUTE
 RESTRICTION
 CLASS
(RSC)
 0 -15FLAG OF
3 OR 6 DIGITS
(FLAG)
3 Digits/6 DigitsDESTINATION
 (AREA/OFFICE)
 CODE
 (DC)
MAX. 6 DIGITSRESTRICTION DATA
 (RES)
0/1REMARKS

CHAPTER 4 NDA-24298
Page 390
Issue 1
APCR : Assignment of Primary Call Restriction Data
APCR: Assignment of Primary Call Restriction Data
1. General
This command assigns the restricted area code for LCR outgoing call.
2. Precautions
1. The restriction check by this command is to be executed prior to the ARSC/ATDP/AARP commands.
2. The restricted area code assigned in the PDC parameter can be numbers (0 - 9, * and #), the mask code
“X” which represents all kind of numbers (0 - 9, * and #), or “P” for a...

NDA-24298 CHAPTER 4
Page 391
Issue 1
APCR : Assignment of Primary Call Restriction Data

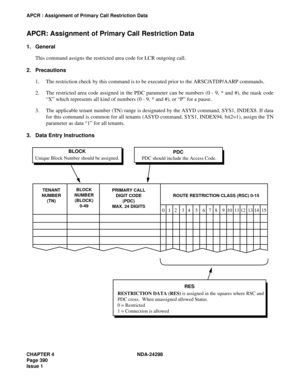

4. Data Sheet
Note:Restriction Data (RES) is assigned in the squares where BLOCK and RSC cross. When unassigned,
Restriction Data is set as “0” (Restricted Status). Allowed Status Data is “1,” and must be assigned to
allow the PDC to be dialed.
TENANT
NUMBER
(TN)BLOCK
NUMBER
(BLOCK)
 0 – 49PRIMARY CALL DIGIT CODE
(PDC)
 MAXIMUM 24 DIGITSROUTE RESTRICTION CLASS (RSC) 0 – 15
1234567891011111

CHAPTER 4 NDA-24298
Page 392
Issue 1
AEFR : Assignment of EPN Facility Restriction Data
AEFR: Assignment of EPN Facility Restriction Data
1. General
This command assigns the allowable connections among the RSC1 (Calling Party’s Restriction Class) and
RSC2 (Called Party’s Restriction Class).
2. Precautions
1. Data can be entered on a Day/Night basis, if specified in ASYD command, SYS1, INDEX75, Bit 4=1.
2. The applicable tenant number (TN) range is designated by the ASYD command, SYS1, INDEX8. If data
for...

NDA-24298 CHAPTER 4
Page 393
Issue 1
AEFR : Assignment of EPN Facility Restriction Data

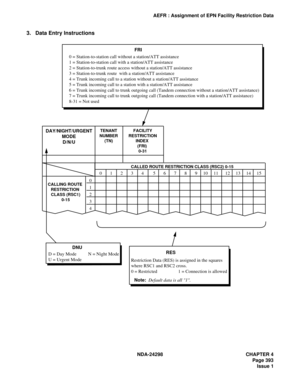

3. Data Entry Instructions
0       1       2       3       4        5       6       7       8       9     10     11      12     13     14     15
0
1
2
3
4
Restriction Data (RES) is assigned in the squares
where RSC1 and RSC2 cross.
0 = Restricted                  1 = Connection is allowedRES
DNU
D = Day Mode          N = Night Mode
U = Urgent Mode
FRI
0 = Station-to-station call without a station/ATT assistance
1...

CHAPTER 4 NDA-24298
Page 394
Issue 1
AEFR : Assignment of EPN Facility Restriction Data
4. Data Sheet

DAY/NIGHT/
URGENT MODE
D/N/UTENANT
NUMBER
(TN)FACILITY
 RESTRICTION
 INDEX
(FRI)
0 - 31
CALLED ROUTE RESTRICTION CLASS (RSC2) 0 – 15
012345 6 7 8 9101112131415
Calling
Route
Restriction
Class
(RSC1)
0 - 150
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

NDA-24298 CHAPTER 4
Page 395
Issue 1
ASFC : Assignment of Service Feature Restriction Class
ASFC: Assignment of Service Feature Restriction Class
1. General
This command assigns the Service Feature Restriction Class (SFC) for the Service Feature Index (SFI).
2. Precautions
1.Table 4-8 provides the service feature name that corresponds to the SFI. Since the service feature indicated
“-” in the table may not always be “Not used” index, do not enter RES = 1 for “-” for the indicated SFI to
prevent...

CHAPTER 4 NDA-24298
Page 396
Issue 1
ASFC : Assignment of Service Feature Restriction Class

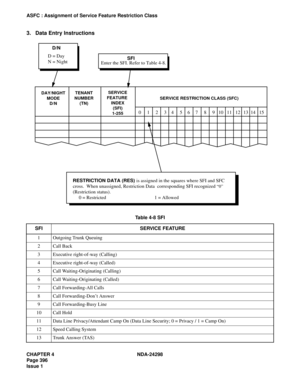

3. Data Entry Instructions
Table 4-8 SFI
SFI SERVICE FEATURE
1 Outgoing Trunk Queuing
2 Call Back
3 Executive right-of-way (Calling)
4 Executive right-of-way (Called)
5 Call Waiting-Originating (Calling)
6 Call Waiting-Originating (Called)
7 Call Forwarding-All Calls
8 Call Forwarding-Don’t Answer
9 Call Forwarding-Busy Line
10 Call Hold
11 Data Line Privacy/Attendant Camp On (Data Line Security; 0 = Privacy / 1 =...
