NDA-24298 CHAPTER 4 Page 397 Issue 1 ASFC : Assignment of Service Feature Restriction Class 14 System Message Detail Recording (SMDR) - Trunk Basis 15 - 16 Line Load Control 17-18 - 19 Individual Speed Calling (Speed Calling - Station/Group) 20 - 21 Off-Hook OG Queuing 22 - 23 Voice Mail Password Display Elimination 24 Emergency Call 25 Call Forward Outside - Local (0 = Restricted, 1 = Allowed) 26 Call Forward Outside - Long Distance (0 = Restricted, 1 = Allowed) 27 Account Codes/Authorization...
Page 432
CHAPTER 4 NDA-24298 Page 398 Issue 1 ASFC : Assignment of Service Feature Restriction Class 51 Boss-Secretary Features 52 Voice Call using an Access Code 53 Message Reminder using an Access Code 54 Priority Call 1 55 Priority Call 2 56 Priority Call 3 57 Priority Paging 58 Station-to-Station Station Message Detail Recording (SMDR) Call 59-61 - 62 Priority Outgoing Queue 63 Outgoing Queue Override 64-66 - 67 Call Park-Access and Answer 68 Call Park-Called 69 Automatic Message Waiting Lamp Off (for Hotel...
Page 433
NDA-24298 CHAPTER 4 Page 399 Issue 1 ASFC : Assignment of Service Feature Restriction Class 94Calling Party’s Number Display Reject to ISDN Line 95 Direct IC Call Restriction (for ACD only) 96 - 97 Send facility Message Requesting SID Information 98 Send facility Message Requesting ANI Information 99 Call Forward I’m Here (Destination) 100 Call Forward I’m Here (Origination) 101-102 - 103 Assignment of No Answer Timer for Blind Transfer to Station/Blind Transfer to Attendant 104Blind Transfer (Processing...
Page 434
CHAPTER 4 NDA-24298 Page 400 Issue 1 ASFC : Assignment of Service Feature Restriction Class 140Send Warning Tone to interrupted parties when THREE-WAY CALLING is established using Consultation Hold Enhancement 141-144 - 145 Internal Zone Page Answer 146 Analog Caller ID-Station 147 - 148 Personal Ringer 149-150 - 151 When CF-OUT SIDE is performed, Route Restriction Class of the station which has set CF-OUT SIDE is used 152 - 153 Analog Caller ID-Station (Single Mode) 154 - 155 Call Return 156-164 - 165...
Page 435
NDA-24298 CHAPTER 4 Page 401 Issue 1 ASFC : Assignment of Service Feature Restriction Class 4. Data Sheet DAY/ NI GH T MODE D/NTENANT NUMBER (TN)SERVICE FEATURE INDEX (SFI) 1-255SERVICE RESTRICTION CLASS 0123456789101112131415
Page 436
CHAPTER 4 NDA-24298 Page 402 Issue 1 ACFR : Assignment of Call Forwarding Restriction ACFR: Assignment of Call Forwarding Restriction 1. General This command assigns various kinds of trunk call forwarding restriction data on a tenant basis. 2. Precautions The applicable Tenant Number (TN) range is designated by the ASYD command, SYS1, INDEX8. If data for this command is common for all tenants (ASYD command, SYS1, INDEX92, bit5=1), assign TN parameter as data “1” for all tenants.
Page 437
NDA-24298 CHAPTER 4 Page 403 Issue 1 ACFR : Assignment of Call Forwarding Restriction 3. Data Entry Instructions 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1 2 3 4 5 1 RESTRICTION DATA (RES) is assigned in the squares where CCI and TSFI cross. 0 = Transfer service is restricted. 1 = Transfer service is allowed.RES CCI 0 = Attendant Call 1 = LDN (C.O. Line) 2 = FX 3 = WATS 4 = Tie Line 5 = CCSA 6 = Recall 7 =...
Page 438
CHAPTER 4 NDA-24298 Page 404 Issue 1 ACFR : Assignment of Call Forwarding Restriction 4. Data Sheet TENANT NUMBER (TN)TRANSFER SERVICE FEATURE INDEX (TSFI) 1 – 15CALL CATEGORY INDEX (CCI) 0 – 15 0123456789101112131415 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Page 439
NDA-24298 CHAPTER 4 Page 405 Issue 1 ATNR : Assignment of Tenant Restriction Class Data ATNR: Assignment of Tenant Restriction Class Data 1. General This command assigns the tenant restriction data for each objective situation. 2. Precautions 1. Data can be entered on a Day/Night basis, if specified in ASYD command, SYS1, INDEX75, bit 2=1. 2. The applicable Tenant Number (TN) range is designated by the ASYD command, SYS1, INDEX8. If data for this command is common for all tenants (ASYD command, SYS1,...
Page 440

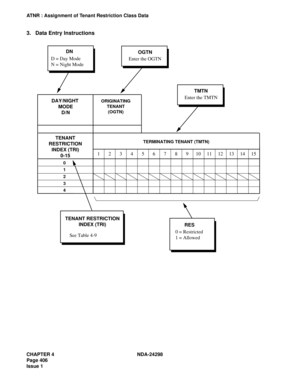

CHAPTER 4 NDA-24298 Page 406 Issue 1 ATNR : Assignment of Tenant Restriction Class Data 3. Data Entry Instructions 1 2 3 4 5 6 7 8 9 101112131415 OGTN Enter the OGTN DAY/NIGHT MODE D/N TENANT RESTRICTION INDEX (TRI) 0-15ORIGINATING TENANT (OGTN) TERMINATING TENANT (TMTN) 0 1 2 3 4 DN D = Day Mode N = Night Mode TMTN Enter the TMTN 0 = Restricted 1 = AllowedRES TENANT RESTRICTION INDEX (TRI) See Table 4-9
