NEC Neax 2400 Ipx Office Data Specification

NDA-24298 CHAPTER 4
Page 407
Issue 1
ATNR : Assignment of Tenant Restriction Class Data
4. Data Sheet
DAY/NIGHT MODE
D/NORIGINATING
TENANT
(OGTN)
TENANT
RESTRICTION
INDEX
(TRI)
0 - 15TERMINATING TENANT
(TMTN)
123456789101112131415
0
1
2
3
4
5
6
7
8-15

CHAPTER 4 NDA-24298
Page 408
Issue 1
AABD : Assignment of Speed Calling Restriction Data
AABD: Assignment of Speed Calling Restriction Data
1. General
This command assigns the Speed Calling system Restriction Data. This data is added to the Service Feature
Class of an individual station assigned to the Speed Calling system in order to restrict it from originating calls.
2. Precautions
1. The Abbreviated Digit Codes (ADC) should already be assigned by the ASPD command.
2.  The Speed Calling Override...

NDA-24298 CHAPTER 4
Page 409
Issue 1

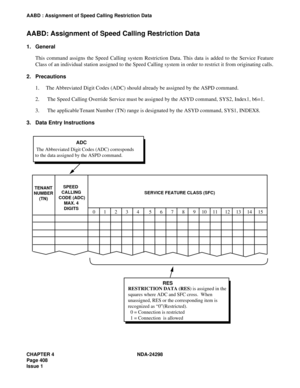

AABD : Assignment of Speed Calling Restriction Data
4. Data Sheet
Note:Restriction Data (RES) is assigned in the squares where SFC and ADC cross.
TENANT
 NUMBER
(TN)SPEED
CALLING CODE
 (ADC)
MAX. 4 DIGITSSERVICE FEATURE CLASS
(SFC)
0123456789101112131415

CHAPTER 4 NDA-24298
Page 410
Issue 1
ASDT : Assignment of Station Data
ASDT: Assignment of Station Data
1. General
This command assigns/deletes the physical station data.
2. Precautions
1. This command is used for Business application. The AAST/AGST commands are used for Hotel applica-
tion.
2. The ASTN command may be used to change the station number.
3. The ASCL command may be used to change the Class (TEC, RSC, and/or SFC) of the station.
4. The applicable tenant number (TN) range is designated by...

NDA-24298 CHAPTER 4
Page 411
Issue 1
ASDT : Assignment of Station Data

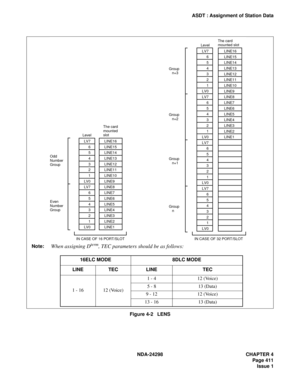

Figure 4-2   LENS
LV7
6
5
4
3
2
1
LV0
LV7
6
5
4
3
2
1
LV0LV7
6
5
4
3
2
1
LV0
LV7
6
5
4
3
2
1
LV0
LV7
6
5
4
3
2
1
LV0
LV7
6
5
4
3
2
1
LV0 LevelLevelLINE16
LINE15
LINE14
LINE13
LINE12
LINE11
LINE10
LINE9
LINE8
LINE7
LINE6
LINE5
LINE4
LINE3
LINE2
LINE1 The card
mounted
slot
LINE16
LINE15
LINE14
LINE13
LINE12
LINE11
LINE10
LINE9
LINE8
LINE7
LINE6
LINE5
LINE4
LINE3
LINE2
LINE1 The card
mounted slot
Odd
Number
Group
Even
Number
GroupGroup...

CHAPTER 4 NDA-24298
Page 412
Issue 1

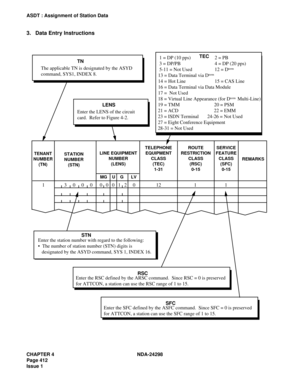

ASDT : Assignment of Station Data
3. Data Entry Instructions
1                3     0     0     0      0   0   0   1   2     0                 12                           1                       1
Enter the station number with regard to the following:
  The number of station number (STN) digits is
   designated by the ASYD command, SYS 1, INDEX 16.STN
Enter the RSC defined by the ARSC command.  Since RSC = 0 is preserved
for ATTCON, a station can use the RSC range...

NDA-24298 CHAPTER 4
Page 413
Issue 1
ASDT : Assignment of Station Data
4. Data Sheet
TENANT
NUMBER
(TN)STATION
NUMBER
(STN)LINE EQUIPMENT
NUMBER
(LENS)TELEPHONE
EQUIPMENT
CLASS
(TEC)
1 – 31ROUTE
RESTRICTION
CLASS
(RSC)
0 – 15SERVICE
FEATURE
CLASS
(SFC)
0 – 15REMARKS
MG U G LV

CHAPTER 4 NDA-24298
Page 414
Issue 1

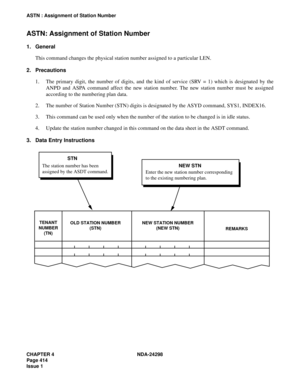

ASTN : Assignment of Station Number
ASTN: Assignment of Station Number
1. General
This command changes the physical station number assigned to a particular LEN.
2. Precautions
1. The primary digit, the number of digits, and the kind of service (SRV = 1) which is designated by the
ANPD and ASPA command affect the new station number. The new station number must be assigned
according to the numbering plan data.
2. The number of Station Number (STN) digits is designated...

NDA-24298 CHAPTER 4
Page 415
Issue 1
ASCL : Assignment of Station Class Data
ASCL: Assignment of Station Class Data
1. General
This command changes the Telephone Equipment Class (TEC), Route Restriction Class (RSC), and Service
Feature Restriction Class (SFC), without changing the station number.
2. Precautions
1. The station class data (TEC, RSC and SFC) can be changed by the ASCL command, even if the station to
be changed is in busy status. (Conversation is in progress.) When the station becomes idle,...

CHAPTER 4 NDA-24298
Page 416
Issue 1

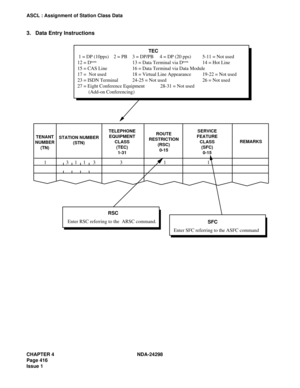

ASCL : Assignment of Station Class Data
3. Data Entry Instructions
1                3     1     1      3                    3 1 1
Enter RSC referring to the  ARSC command.RSC
Enter SFC referring to the ASFC commandSFC
STATION NUMBER
(STN)TELEPHONE
EQUIPMENT
CLASS
(TEC)
1-31ROUTE
RESTRICTION
(RSC)
0-15SERVICE
FEATURE
CLASS
(SFC)
0-15REMARKS TENANT
NUMBER
(TN)
TEC
 1 = DP (10pps)    2 = PB   3 = DP/PB     4 = DP (20 pps) 5-11 = Not used
12 = D
term13 = Data Terminal...
