NEC Neax 2400 Ipx Office Data Specification

NDA-24298 CHAPTER 4
Page 477
Issue 1
ADRTL : Assignment of Dterm Display Route Data for LDM
4. Data Sheet
ROUTE
NUMBER
(RT)CHARACTER
DISPLAY TYPE
(TYPE)
1, 2DISPLAY FOR TRUNK CLASS ON Dterm
(DISP)REMARKS

CHAPTER 4 NDA-24298
Page 478
Issue 1
ADRTN : Assignment of Dterm Display Route Data for NDM
ADRTN: Assignment of Dterm Display Route Data for NDM
1. General
This command changes the display of trunk class information on the D
term instead of the Trunk Class (TCL)
designation of the ARTD command.
This data is written in Network Data Memory (NDM) of the Network Control Node (NCN).
2. Precautions
1. The Route Class information is displayed on all D
terms of all nodes in the Fusion Network.
2. The data...

NDA-24298 CHAPTER 4
Page 479
Issue 1

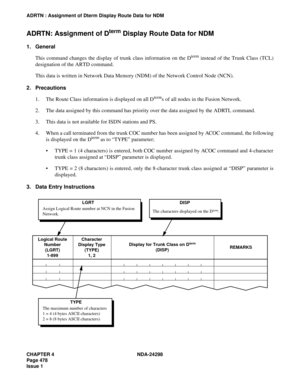

ADRTN : Assignment of Dterm Display Route Data for NDM
4. Data Sheet
LOGICAL ROUTE
NUMBER
(LGRT)
1-899CHARACTER
DISPLAY TYPE
(TYPE)
1, 2DISPLAY FOR TRUNK CLASS ON Dterm
(DISP)REMARKS

CHAPTER 4 NDA-24298
Page 480
Issue 1
AICD : Assignment of Intercom Data
AICD: Assignment of Intercom Data
1. General
This command assigns the data related to the Automatic/Annual Intercom service feature.
2. Precautions
1. Up to 16 stations may be assigned to one Intercom group.
2. Only D
term(s) can have the Automatic/Manual Intercom service feature applied.
3. A maximum number of Intercom groups within a Module Group (MG) is 50 groups, and each group is
given a unique Group ID Number (G-ID).
4. Prior...

NDA-24298 CHAPTER 4
Page 481
Issue 1
AICD : Assignment of Intercom Data

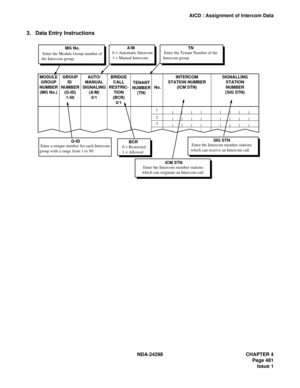

3. Data Entry Instructions
 Enter the Module Group number of
the Intercom group.MG No.
0 = Automatic Intercom
1 = Manual Intercom A/M
 Enter the Tenant Number of the
Intercom group. TN
 Enter the Intercom member stations
which can receive an Intercom call. SIG STN
 Enter the Intercom member stations
which can originate an Intercom call. ICM STN 0 = Restricted
1 = Allowed1
2
3
BCR
 Enter a unique number for each Intercom
group with a...

CHAPTER 4 NDA-24298
Page 482
Issue 1
AICD : Assignment of Intercom Data
4. Data Sheet
MODULE
GROUP
NUMBER
(MG No.)GROUP
ID
NUMBER
(G-ID)
1-50AUTO/MANUAL
SIGNALING
(A/M)
0/1BRIDGE
CALL
RESTRICTION
(BCR)
0/1TENANT
NUMBER
(TN)NO.INTERCOM
STATION
NUMBER
(ICMSTN)SIGNALING
STATION
NUMBER
(SIGSTN)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

NDA-24298 CHAPTER 4
Page 483
Issue 1
AICD_T : Assignment of Intercom Data – Telephone Number
AICD_T : Assignment of Intercom Data – Telephone Number
1. General
This command is used to assign the data related to the Automatic/Manual Intercom service feature. The station
data of AICD command can be assigned by using Telephone Number instead.
2. Precautions
1. Only the Telephone Numbers assigned by the ALGSN command can be used. Telephone Numbers by the
ALGSL command is not available in this command.
2. In...

CHAPTER 4 NDA-24298
Page 484
Issue 1
AICD_T : Assignment of Intercom Data – Telephone Number

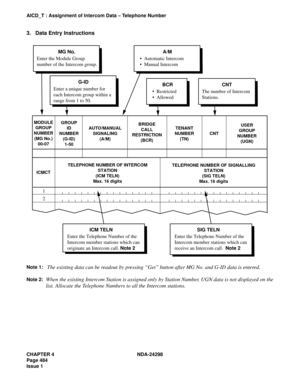

3. Data Entry Instructions

Note 1: The existing data can be readout by pressing “Get” button after MG No. and G-ID data is entered.
Note 2:When the existing Intercom Station is assigned only by Station Number, UGN data is not displayed on the
list. Allocate the Telephone Numbers to all the Intercom stations.
ICMCT MODULE
GROUP
NUMBER
(MG No.)
00-07GROUP
ID
NUMBER
(G-ID)
1-50AUTO/MANUAL
SIGNALING
(A/M)TENANT...

NDA-24298 CHAPTER 4
Page 485
Issue 1
AICD_T : Assignment of Intercom Data – Telephone Number
4. Data Sheet
MODULE
GROUP
NUMBER
(MG No.)
00-07GROUP
ID
NUMBER
(G-ID)
1-50AUTO/MANUAL
SIGNALING
(A/M)BRIDGE
CALL
RESTRICTION
(BCR)TENANT
NUMBER
(TN)CNTUSER
GROUP
NUMBER
(UGN)

ICMCTTELEPHONE NUMBER OF INTERCOM
STATION
 (ICM TELN)
Max. 16 digitsTELEPHONE NUMBER OF SIGNALLING
STATION
 (SIG TELN)
Max. 16 digits
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
MG No.
00-07G-ID
1-50A/M BCR TN CNT UGN

ICMCTICM...

CHAPTER 4 NDA-24298
Page 486
Issue 1

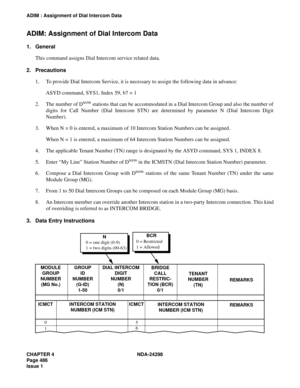

ADIM : Assignment of Dial Intercom Data
ADIM: Assignment of Dial Intercom Data
1. General
This command assigns Dial Intercom service related data.
2. Precautions
1. To provide Dial Intercom Service, it is necessary to assign the following data in advance:
ASYD command, SYS1, Index 59, b7 = 1
2. The number of D
term stations that can be accommodated in a Dial Intercom Group and also the number of
digits for Call Number (Dial Intercom STN) are determined by parameter N...
