AKYD_T : Assignment of Key Data for Dterm – Telephone Number

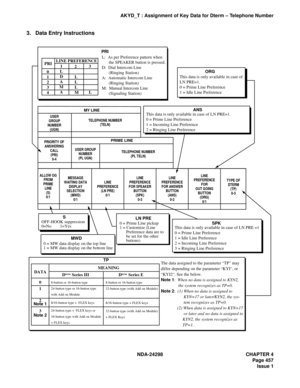

3. Data Entry Instructions
LN PRE
0 = Prime Line pickup
1 = Customize (Line
      Preference data are to
      be set for the other
      buttons)
TP
DATAMEANING
D
term  Series III  Dterm  Series E
0
1
2
3
Note 2 Note 1
8-button or 16-button type
24-button type or 16-button type
with Add on Module
8/16-button type +  FLEX keys
24-button type +  FLEX keys or
16-button type with Add on Module
+ FLEX...

CHAPTER 4 NDA-24298
Page 458
Issue 1
AKYD_T : Assignment of Key Data for Dterm – Telephone Number
Note:The existing data can be readout by pressing Get” button after UGN and TELN data is entered.
For the Line/Feature keys
For the Flex keys

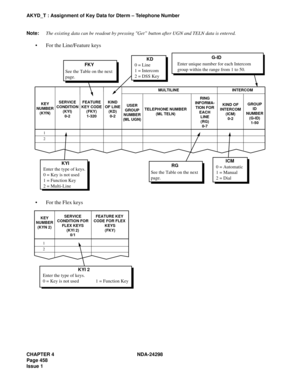

Enter unique number for each Intercom
group within the range from 1 to 50.
See the Table on the next
page.G-ID
KEY
NUMBER
(KYN)SERVICE
CONDITION
(KYI)
0-2FEATURE
KEY CODE
(FKY)
1-320KIND
OF LINE
(KD)
0-2USER
GROUP
NUMBER
(ML UGN)TELEPHONE NUMBER
(ML TELN)RING...

NDA-24298 CHAPTER 4
Page 459
Issue 1
AKYD_T : Assignment of Key Data for Dterm – Telephone Number
Table 4-16 FKY
Table 4-17 RG
RG (0-7)RINGING
DELAY TIME
DAY NIG HT
0 NO (No Ringing) No Ringing
1 YES (Ringing) No Ringing 0 sec.
2 NO (No Ringing) Ringing 0 sec.
3 Not used Not used
4 YES (Ringing) Ringing 30 sec.
5 YES (Ringing) Ringing 20 sec.
6 YES (Ringing) Ringing 10 sec.
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
17
18
19
20
21
22
23-25Call Forwarding-Busy Line
Call Forwarding-All Calls
Executive Right of...

CHAPTER 4 NDA-24298
Page 460
Issue 1
AKYD_T : Assignment of Key Data for Dterm – Telephone Number
4. Data Sheet
(a) When KD = 0/1 (for Key assignment of Line key/Intercom key)
MY LINE
USER GROUP
NUMBER
 (UGN)TELEPHONE NUMBER
 (TELN)
PRIORITY OF
ANSWERING
CALL
(PRI)
0-4PRIME LINE
USER GROUP
NUMBER
 (PL UGN)TELEPHONE NUMBER
(PL TELN)
ALLOW
OG
FROM
PRIME
LINE
 (S)
0/1MESSAGE
WAITING DATA DIS-
PLAY
SELECTION
(MWD)
0/1LINE
PREFERENCE
 (LN PRE)
0/1LINE
PREFERENCE
FOR SPEAKER
BUTTON
(SPK)...

NDA-24298 CHAPTER 4
Page 461
Issue 1
AKYD_T : Assignment of Key Data for Dterm – Telephone Number
Note 1:
When KYI = None, it is not necessary to assign any data.
Note 2:When KYI = FUNCTION, assign data for FKY only.
Note 3:When KYI = Multi-Line, assign data for multiple telephone only.
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
F1
F2
F3
F4
F5
F6
F7
F8
KEY
NUMBER
(KYN)SERVICE
CONDITION
(KYI)
0 – 2FEATURE
KEY CODE
(FKY)
1-320KIND OF
LINE
(KD)
0-2MULTI LINE INTERCOM
USER
GROUP
NUMBER
(ML...

CHAPTER 4 NDA-24298
Page 462
Issue 1
AKYD_T : Assignment of Key Data for Dterm – Telephone Number
(b) When KD = 2 (for key assignment of DSS Console).
KEY NUMBERUSER GROUP NUMBER
(UGN)TELEPHONE NUMBER
(TELN)REMARKS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

NDA-24298 CHAPTER 4
Page 463
Issue 1
AFDD : Assignment of Function Display Data
AFDD: Assignment of Function Display Data
1. General
This command assigns the characters of soft key indication on a D
term Series E.
When this command is not assigned, the default (which shows on FKY parameter description on this command)
is displayed.

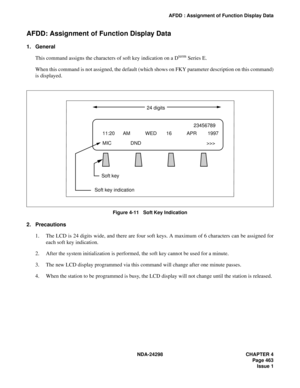

Figure 4-11   Soft Key Indication
2. Precautions
1. The LCD is 24 digits wide, and there are four soft keys. A maximum of 6 characters can be assigned for
each soft key...

CHAPTER 4 NDA-24298
Page 464
Issue 1
AFDD : Assignment of Function Display Data
3. Data Entry Instructions
DISP
DISP REMARKS

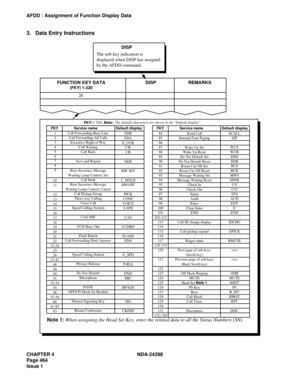

26
The soft key indication is
displayed when DISP has assigned
by the AFDD command.
FUNCTION KEY DATA
(FKY) 1-320
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23-24
25
26
27-47
48
49
50
51
52-54
55
56
57-59
60
61-82
83Call Forwarding-Busy Line
Call Forwarding-All Calls
Executive Right of Way
Call Waiting
Call Back
-
Save and Repeat
-
Boss-Secretary-Message
Waiting...

NDA-24298 CHAPTER 4
Page 465
Issue 1
AFDD : Assignment of Function Display Data
4. Data Sheet
FUNCTION
KEY
CODE

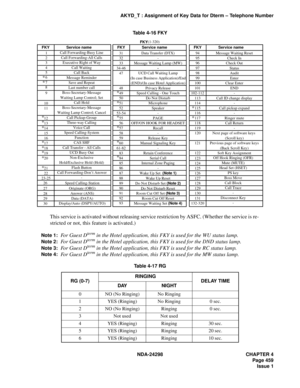

(FKY)DISPLAY
MESSAGE
ON LCD
(DISP)REMARKSFUNCTION
KEY
CODE
(FKY)DISPLAY
MESSAGE
ON LCD
(DISP)REMARKS

CHAPTER 4 NDA-24298
Page 466
Issue 1
ADSL : Assignment of Dterm Soft Key on LCD
ADSL: Assignment of Dterm Soft Key on LCD
1. General
This command creates an additional soft key pattern for D
term Series E.
2. Precautions

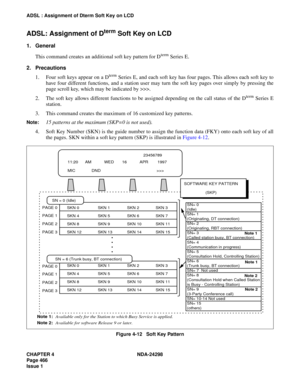

1. Four soft keys appear on a D
term Series E, and each soft key has four pages. This allows each soft key to
have four different functions, and a station user may turn the soft key pages over simply by pressing the
page scroll key, which may be indicated by >>>.
2. The soft key allows...
