AKYD : Assignment of Key Data for Dterm
AKYD: Assignment of Key Data for Dterm
1. General
This command assigns the following key data corresponding to each line/feature button on a D
term.
Line Key Data
Function Key Data
Intercom Key Data
DSS Key Data
2. Precautions
1. The D
term Series III (16-button type) and Dterm Series E have the default key data. (Refer to Precautions
6.) If the default data is to be used, assignment in AKYD is not necessary. Table 4-10...

CHAPTER 4 NDA-24298
Page 438
Issue 1
AKYD : Assignment of Key Data for Dterm
5. A virtual line can be assigned as a Sub Line of the Dterm. The virtual line can be used the same way as the
My Line for outgoing calls and other service operations.
Note:Virtual Line --- A virtual LENS exists only in memory, but does not exist physically. Data can be assigned
but no hardware is required:
Example:LENS = 000311. The virtual LENS is assigned by the ASDT command in the same way as an ordinary
line. (The...

NDA-24298 CHAPTER 4
Page 439
Issue 1
AKYD : Assignment of Key Data for Dterm
9. The applicable tenant number (TN) range is designated by the ASYD command, SYS1, INDEX8.
10. There is no default key data provided for D
term (8-button type). The key data for all the line/feature
buttons must be programmed. When assigning the key data of the line/feature button, take the following
precautions:
(a) My Line Key must be assigned in KYN = 1-8, and KYN = 9-16 should be assigned KYI = 0 (Not
used).
(b) The...

CHAPTER 4 NDA-24298
Page 440
Issue 1
AKYD : Assignment of Key Data for Dterm
12. When using 16 ELCJ (SR 3295, PROG-B or later), the FKY = 49: Speed Calling-One Touch can be
assigned to a maximum of 16 Key Numbers (KYNS).
Note 1:Speed Calling-One Touch data can be saved by the BOSD command.
Note 2:Assign the data to the Key Numbers (KYN) in the consecutive order.
13. For Call Forwarding-Busy Line and Call Forwarding-Don’t Answer, refer to ASYD SYS1 Index5
(separate/common access for C.F.-Busy Line and...

NDA-24298 CHAPTER 4
Page 441
Issue 1
AKYD : Assignment of Key Data for Dterm

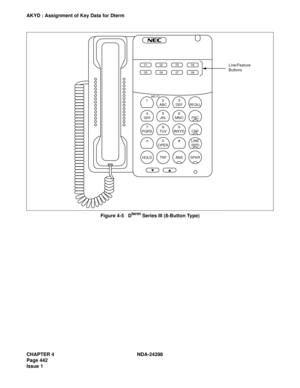

Figure 4-3   D
term Series III (24-Button Type)
Figure 4-4   D
term Series III (16-Button Type)
HOLD TRF ANS SPKR0
OPER# LINE
/SPD 7
PQRS8
TUV9
WXYD CNF 4
GHI5
JKL6
MNO FNC 12
ABC3
DEF
RECALL
MIC O 01 02 03 04 05 06
07 08 09 10 11 12
13 14 15 16 17 18
19 20 21 22 23
124
7
28
39
410
511
612
Line/Feature
Buttons
HOLD TRF ANS SPKR0
OPER# LINE
/SPD 7
PQRS8
TUV9
WXYD CNF 4
GHI5
JKL6
MNO FNC 12
ABC3
DEF
RECALL
MIC O 01
0203 04
09 010...

CHAPTER 4 NDA-24298
Page 442
Issue 1
AKYD : Assignment of Key Data for Dterm
Figure 4-5   D
term Series III (8-Button Type)
HOLD TRF ANS SPKR0
OPER# LINE
/SPD 7
PQRS8
TUV9
WXYD CNF 4
GHI5
JKL6
MNO FNC 12
ABC3
DEF
RECALL
MIC O 01
0203 04
07080506
Line/Feature
Buttons

NDA-24298 CHAPTER 4
Page 443
Issue 1
AKYD : Assignment of Key Data for Dterm

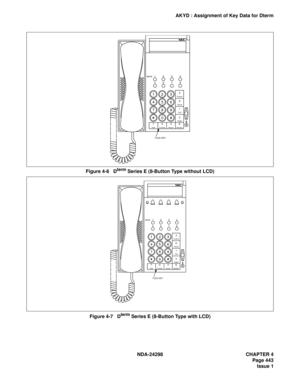

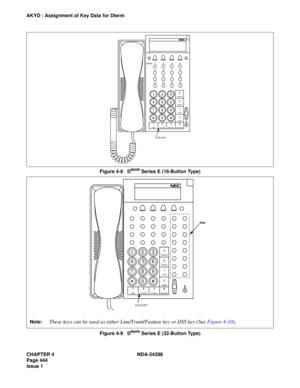

Figure 4-6   D
term Series E (8-Button Type without LCD)
Figure 4-7   D
term Series E (8-Button Type with LCD)
1
23
4
5
6
7
8
9
0#4Feature
Key No.1234
5678
6
Recall1Conf
2Redial8Speaker3Answer5Transfer7Hold
FLEX KEY
1
23
4
5
6
7
8
9
0#4Feature
Key No.1234
5678
6
Recall1Conf
2Redial8Speaker3Answer5Transfer7Hold
FLEX KEY

CHAPTER 4 NDA-24298
Page 444
Issue 1
AKYD : Assignment of Key Data for Dterm

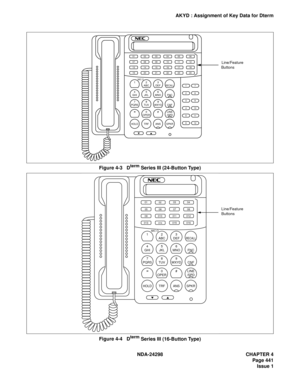

Figure 4-8   D
term Series E (16-Button Type)
Figure 4-9   D
term Series E (32-Button Type)
1
23
4
5
6
7
8
9
0#4Feature
1Key No.234
5678
9101112
13141516
6
Recall1Conf
2Redial8Speaker3Answer5Transfer7Hold
FLEX KEY
1 2 3
4 5 6
7 8 9
0 # 4Feature
6Recall
1Conf
2Redial8Speaker3Answer5Transfer7Hold
Note
FLEX KEY
Note:These keys can be used as either Line/Trunk/Feature key or DSS key (See Figure 4-10).

NDA-24298 CHAPTER 4
Page 445
Issue 1
AKYD : Assignment of Key Data for Dterm

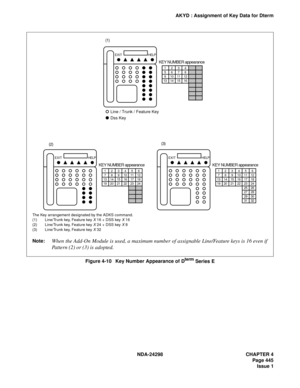

Figure 4-10   Key Number Appearance of D
term Series E
32 26 25
28 27
30 29
31
EXITHELP
16
12 5 4 3 2
71110 9 8
18 13 1716 15 14
24 19 2322 21 20
KEY NUMBER appearanceLine / Trunk / Feature Key
EXITHELP
16
12
32 5 4 3 2
71110 9 8
18 13 1716 15 14
24 19 23
26 25
28 27
30 29
31 22 21 20
KEY NUMBER appearance
Dss Key
EXITHELP
16
12
32 5 4 3 2
5118 7 6
18 91712 11 10
24 13 23
26 25
28 27
30 29
31 16 15 14
KEY NUMBER appearance
(1)...

CHAPTER 4 NDA-24298
Page 446
Issue 1
AKYD : Assignment of Key Data for Dterm

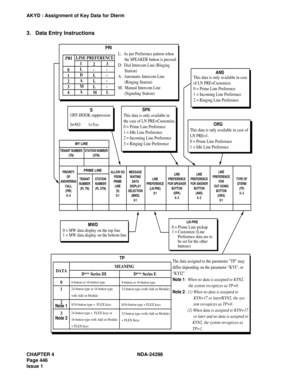

3. Data Entry Instructions
LN PRE
0 = Prime Line pickup
1 = Customize (Line
      Preference data are to
      be set for the other
      buttons)
TP
DATAMEANING
D
term  Series III  Dterm  Series E
0
1
2
3
Note 2 Note 1
8-button or 16-button type
24-button type or 16-button type
with Add on Module
8/16-button type +  FLEX keys
24-button type +  FLEX keys or
16-button type with Add on Module
+ FLEX keys8-button or 16-button...
