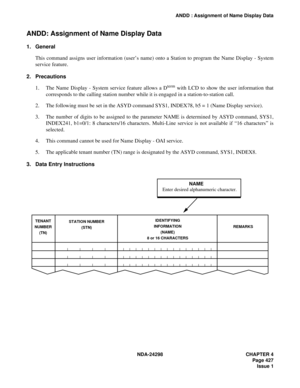

ANDD : Assignment of Name Display Data
ANDD: Assignment of Name Display Data
1. General
This command assigns user information (user’s name) onto a Station to program the Name Display - System
service feature.
2. Precautions
1. The Name Display - System service feature allows a D
term with LCD to show the user information that
corresponds to the calling station number while it is engaged in a station-to-station call.
2. The following must be set in the ASYD command...

CHAPTER 4 NDA-24298
Page 428
Issue 1
ANDD : Assignment of Name Display Data
4. Data Sheet
TENANT
NUMBER
(TN) STATION NUMBER
(STN)IDENTIFYING INFORMATION
(NAME)
8 or 16 CHARACTERSREMARKS

NDA-24298 CHAPTER 4
Page 429
Issue 1

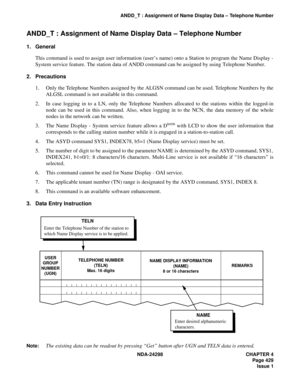

ANDD_T : Assignment of Name Display Data – Telephone Number
ANDD_T : Assignment of Name Display Data – Telephone Number
1. General
This command is used to assign user information (user’s name) onto a Station to program the Name Display -
System service feature. The station data of ANDD command can be assigned by using Telephone Number.
2. Precautions
1. Only the Telephone Numbers assigned by the ALGSN command can be used. Telephone Numbers by the
ALGSL command is not...

CHAPTER 4 NDA-24298
Page 430
Issue 1
ANDD_T : Assignment of Name Display Data – Telephone Number
4. Data Sheet
USER
GROUP
NUMBER
(UGN)TELEPHONE NUMBER
 (TELN)
Max. 16 digitsIDENTIFYING INFORMATION
(NAME)
8 or 16 charactersREMARKS

NDA-24298 CHAPTER 4
Page 431
Issue 1

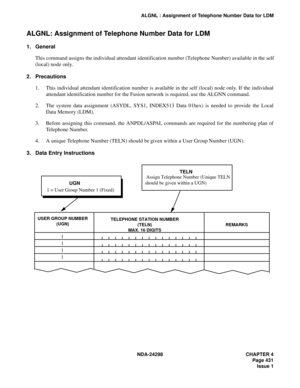

ALGNL : Assignment of Telephone Number Data for LDM
ALGNL: Assignment of Telephone Number Data for LDM
1. General
This command assigns the individual attendant identification number (Telephone Number) available in the self
(local) node only.
2. Precautions
1. This individual attendant identification number is available in the self (local) node only. If the individual
attendant identification number for the Fusion network is required, use the ALGNN command.
2. The...

CHAPTER 4 NDA-24298
Page 432
Issue 1
ALGNL : Assignment of Telephone Number Data for LDM
4. Data Sheet
USER GROUP NUMBER
(UGN)TELEPHONE STATION NUMBER
(TELN)
MAX. 16 DIGITSREMARKS

NDA-24298 CHAPTER 4
Page 433
Issue 1
ALGSL : Allocation of Telephone Station Data for LDM
ALGSL: Allocation of Telephone Station Data for LDM
1. General
This command assigns the data pertaining to the relationship between Telephone Station Number (TELN) and
the physical station.
2. Precautions
1. This Telephone Number can be used in the self (local) node only. Use the ALGSN command if the
Telephone Number for the Fusion network is required.
2. The TYPE parameter designates the programming method of the...

CHAPTER 4 NDA-24298
Page 434
Issue 1
ALGSL : Allocation of Telephone Station Data for LDM

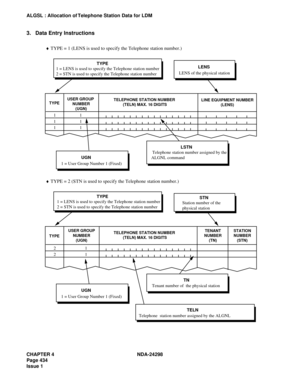

3. Data Entry Instructions
TELEPHONE STATION NUMBER
 (TELN) MAX. 16 DIGITSLINE EQUIPMENT NUMBER
(LENS) USER GROUP
NUMBER
(UGN)
UGN
TYPE
 1 = User Group Number 1 (Fixed)
LENS
 LENS of the physical stationTYPE
1 = LENS is used to specify the Telephone station number
2 = STN is used to specify the Telephone station number
1
1
1 1
1
1
LSTN
 Telephone station number assigned by the
ALGNL command
♦
 TYPE = 1 (LENS is...

NDA-24298 CHAPTER 4
Page 435
Issue 1
ALGSL : Allocation of Telephone Station Data for LDM
4. Data Sheet
(a) TYPE = 1 (LENS is used to specify the physical station number.)
TYPEUSER
GROUP
NUMBER
(UGN)TELEPHONE NUMBER
(TELN)LINE EQUIPMENT
NUMBER
(LENS)REMARKS
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11

CHAPTER 4 NDA-24298
Page 436
Issue 1
ALGSL : Allocation of Telephone Station Data for LDM
(b) TYPE = 2 (STN is used to specify the physical station number.)
TYPEUSER
GROUP
NUMBER
(UGN)TELEPHONE NUMBER
(TELN)TENANT
NUMBER
(TN)STATION
NUMBER
(STN)REMARKS
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
