ADSL : Assignment of Dterm Soft Key on LCD
5. After system initialization is performed, the soft key cannot be used for a minute.
6. When the soft key data is set on a system basis, SKP = 0 is assigned by this command.
7. The priority order for displaying the data in the function key area (the third line or the lowest line) is as
follows.
8. The LCD display is not changed for a minute, after if the soft key data is assigned to all stations in a
system using this...

CHAPTER 4 NDA-24298
Page 468
Issue 1
ADSL : Assignment of Dterm Soft Key on LCD

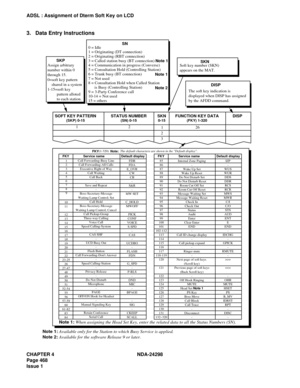

3. Data Entry Instructions
DISP
DISP
SOFT KEY PATTERN(SKP) 0-15STATUS NUMBER(SN) 0-15FUNCTION KEY DATA(FKY) 1-320
26 12
2
31
The soft key indication is
displayed when DISP has assigned
by the AFDD command.
SN
SKN
Soft key number (SKN)
appears on the MAT.SKP
Assign arbitrary
number within 0
through 15.
0=soft key pattern
    shared in a system
1-15=soft key
         pattern alloted
         to each station.
SKN0-15
1
2...

NDA-24298 CHAPTER 4
Page 469
Issue 1
ADSL : Assignment of Dterm Soft Key on LCD
4. Data Sheet
SOFT KEY
PAT T E R N
(SKP)STATUS
NUMBER
(SN)SKNFUNCTION
KEY DATA
(FKY)DISP REMARKS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

CHAPTER 4 NDA-24298
Page 470
Issue 1
ADKS : Assignment of Dterm Key Status Data
ADKS: Assignment of Dterm Key Status Data
1. General
This command assigns the soft key pattern (which is assigned by the ADSL command) onto a D
term Series E.
Additionally, Line/Feature button and DSS key arrangement on the Dterm Series E can be specified.
2. Precautions

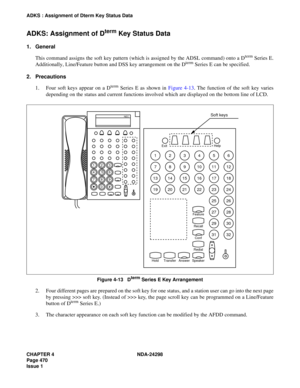

1. Four soft keys appear on a D
term Series E as shown in Figure 4-13. The function of the soft key varies
depending on the status and current functions...

NDA-24298 CHAPTER 4
Page 471
Issue 1
ADKS : Assignment of Dterm Key Status Data
4. The default key pattern (SKP = 0) of the soft keys are listed in the table below. When data 1 through 15 is
assigned in the SKP parameter, the ADSL command must be assigned to specify the soft key pattern
(SKP).
Table 4-18 Default Key Pattern
STATUS PAGE PG=0 PG=1
Idle0 MIC DND >>> MIC DND
1
2
3
Originating
(DT connection)0 MIC PICK FDA >>> MIC PICK FDA FDN
1 FDN FDB >>> FDB
2
3
Originating
(RBT connection)0 MIC VOICE >>>...

CHAPTER 4 NDA-24298
Page 472
Issue 1
ADKS : Assignment of Dterm Key Status Data
3-Party
Conference0 MIC >>> MIC
1
2
3
Others0 MIC >>> MIC
1
2
3Table 4-18 Default Key Pattern  (Continued)
STATUS PAGE PG=0 PG=1

NDA-24298 CHAPTER 4
Page 473
Issue 1
ADKS : Assignment of Dterm Key Status Data

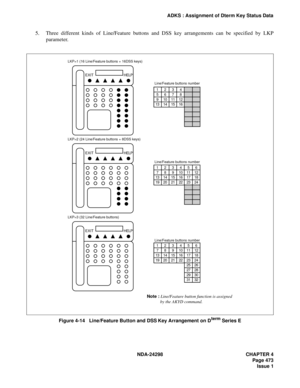

5. Three different kinds of Line/Feature buttons and DSS key arrangements can be specified by LKP
parameter.
Figure 4-14   Line/Feature Button and DSS Key Arrangement on Dterm Series E
EXITHELP
16
12
32 5 4 3 2
5118 7 6
18 91712 11 10
24 13 23
26 25
28 27
30 29
31 16 15 14
LKP=1 (16 Line/Feature buttons + 16DSS keys)
EXITHELP
16
12
32 5 4 3 2
71110 9 8
18 13 1716 15 14
24 19 23
26 25
28 27
30 29
31 22 21 20
LKP=2 (24...

CHAPTER 4 NDA-24298
Page 474
Issue 1
ADKS : Assignment of Dterm Key Status Data

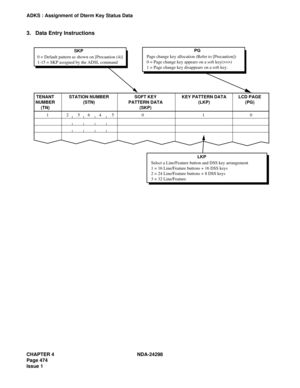

3. Data Entry Instructions
1                2       5      6       4        5                         0 1 0
Select a Line/Feature button and DSS key arrangement
1 = 16 Line/Feature buttons + 16 DSS keys
2 = 24 Line/Feature buttons + 8 DSS keys
3 = 32 Line/Feature LKP
Page change key allocation (Refer to [Precaution])
0 = Page change key appears on a soft key(>>>)
1 = Page change key disappears on a soft key.PG
STATION NUMBER...

NDA-24298 CHAPTER 4
Page 475
Issue 1
ADKS : Assignment of Dterm Key Status Data
4. Data Sheet
TENANT
NUMBER
(TN)STATION NUMBER
(STA)SOFT KEY
PATTERN DATA
(SKP)LINE KEY PATTERN DATA
(LKP)LCD PAGE
(PG)

CHAPTER 4 NDA-24298
Page 476
Issue 1

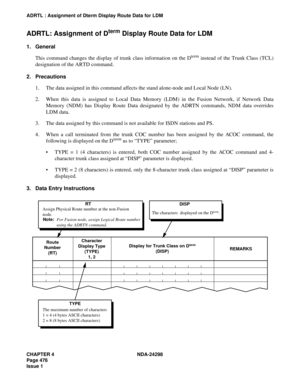

ADRTL : Assignment of Dterm Display Route Data for LDM
ADRTL: Assignment of Dterm Display Route Data for LDM
1. General
This command changes the display of trunk class information on the D
term instead of the Trunk Class (TCL)
designation of the ARTD command.
2. Precautions
1. The data assigned in this command affects the stand alone-node and Local Node (LN).
2. When this data is assigned to Local Data Memory (LDM) in the Fusion Network, if Network Data
Memory (NDM)...
