NDA-24298 CHAPTER 4
Page 447
Issue 1

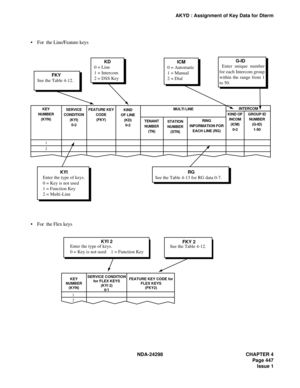

AKYD : Assignment of Key Data for Dterm
FKY
KEY
NUMBER
(KYN)SERVICE
CONDITION
(KYI)
0-2MULTI LINE
RING
INFORMATION FOR
EACH LINE (RG)INTERCOM
KIND OF
INCOM
(ICM)
0-2GROUP ID
NUMBER
(G-ID)
1-50 FEATURE KEY
CODE
(FKY)KIND
OF LINE
(KD)
0-2STATION
NUMBER
(STN) TENANT
NUMBER
(TN)
See the Table 4-12.
G-ID
KD
0 = Line
1 = Intercom
2 = DSS Key
RG
See the Table 4-13 for RG data 0-7.
ICM
0 = Automatic
1 = Manual
2 = Dial Enter unique number
for each Intercom group
within the...

CHAPTER 4 NDA-24298
Page 448
Issue 1
AKYD : Assignment of Key Data for Dterm

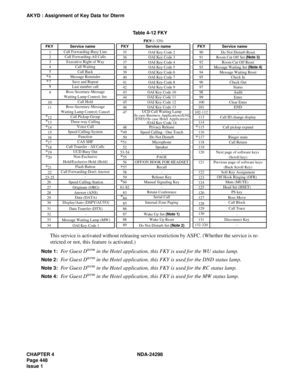

Table 4-12 FKY
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
17
18
19
20
21
22
23-25Call Forwarding-Busy Line
Call Forwarding-All Calls
Executive Right of Way
Call Waiting
Call Back
Message Reminder
Save and Repeat
Last number call
Boss-Secretary-Message
Waiting Lamp Control; Set
Call Hold
Boss-Secretary-Message
Waiting Lamp Control; Cancel
Call Pickup-Group
Three-way Calling
Voice Call
Speed Calling-System
Function
CAS SHF
Call Transfer...

NDA-24298 CHAPTER 4
Page 449
Issue 1
AKYD : Assignment of Key Data for Dterm
4. Data Sheet
(a) When KD = 0/1 (for key assignment of Line key/Intercom key)
Table 4-13 RG
RG (0-7)RINGING
DELAY TIME
DAY NIGHT
0 NO (No Ringing) No Ringing
1 YES (Ringing) No Ringing 0 sec.
2 NO (No Ringing) Ringing 0 sec.
3 Not used Not used
4 YES (Ringing) Ringing 30 sec.
5 YES (Ringing) Ringing 20 sec.
6 YES (Ringing) Ringing 10 sec.
MY LINE
TENANT
NUMBER
(TN)STATION NUMBER
(STN)
PRIORITY
OF
ANSWERING
CALL
(PRI)
0-4PRIME...

CHAPTER 4 NDA-24298
Page 450
Issue 1
AKYD : Assignment of Key Data for Dterm
14
15
16
17
18
19
20
21
22
23
24
25
26
MY LINE
TENANT
NUMBER
(TN)STATION NUMBER
(STN)
PRIORITY
OF
ANSWERING
CALL
(PRI)
0-4PRIME LINE
ALLOW
OG
FROM
PRIME
LINE
(S)
0/1MESSAGE
WA I T I N G
DATA
DISPLAY
SELECTION
(MWD)
0/1LINE
PREFERENCE
(LN PRE)
0/1LINE
PREFERENCE
FOR SPEAKER
BUTTON
(SPK)
0-3LINE
PREFERENCE
FOR ANSWER
BUTTON
(ANS)
0-2LINE
PREFERENCE
FOR
OUTGOING
BUTTON
(ORG)
0/1TYPE OF
DTERM
(TP)
0-3 TENANT
NUMBER
(PL...

NDA-24298 CHAPTER 4
Page 451
Issue 1
AKYD : Assignment of Key Data for Dterm
Note 1:When KYI = None, it is not necessary to assign any data.
Note 2:When KYI = FUNCTION, assign data for FKY only.
Note 3:When KYI = Multi-Line, assign data for multiple telephone only.
KEY
NUM-
BER
(KYN)SERVICE
CONDITION
(KYI)
0 – 2FEATURE
KEY CODE
(FKY)
1-320KIND OF
LINE
(KD)
0-2MULTI LINE INTERCOM
TENANT
NUMBER
(TN)STATION
NUMBER
(STN)RING
INFORMATION
FOR
EACH LINE
(RG)
0-7KIND OF
INCOM
(ICM)
0-2GROUP
ID
NUM-
BER
(G-ID)...

CHAPTER 4 NDA-24298
Page 452
Issue 1
AKYD : Assignment of Key Data for Dterm
(b) When KD = 2 (for key assignment of DSS Console).
KEY NUMBERTENANT NUMBER
(TN)STATION NUMBER
(STN)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

NDA-24298 CHAPTER 4
Page 453
Issue 1
AKYD_T : Assignment of Key Data for Dterm – Telephone Number
AKYD_T: Assignment of Key Data for Dterm – Telephone Number
1. General
This command assigns the Line Key, Function Key, Intercom Key, and DSS Key data corresponding to each
line/feature button on a D
term. The station data of AKYD command can be assigned by using Telephone
Number.
2. Precautions
1. Only the Telephone Numbers assigned by the ALGSN command can be used. Telephone Numbers by the
ALGSL command is...

CHAPTER 4 NDA-24298
Page 454
Issue 1
AKYD_T : Assignment of Key Data for Dterm – Telephone Number
7. A Multi-Line key (the key for My Line and Sub Line) on the Dterm can be assigned as Prime Line. If the
Prime Line is not assigned, the My Line serves as the Prime Line. When the user goes off-hook, the Prime
Line is automatically selected on the D
term.
8. A virtual line can be assigned as a Sub Line of the D
term. The virtual line can be used the same way as the
My Line for outgoing calls and other...

NDA-24298 CHAPTER 4
Page 455
Issue 1
AKYD_T : Assignment of Key Data for Dterm – Telephone Number
12. The applicable tenant number (TN) range is designated by the ASYD command, SYS1, INDEX8.
13. There is no default key data provided for D
term (8-button type). The key data for all the line/feature
buttons must be programmed. When assigning the key data of the line/feature button, take the following
precautions:
(a) My Line Key must be assigned in KYN = 1-8, and KYN = 9-16 should be assigned KYI = 0 (Not...

CHAPTER 4 NDA-24298
Page 456
Issue 1
AKYD_T : Assignment of Key Data for Dterm – Telephone Number
16. For Call Forwarding-Busy Line and Call Forwarding-Don’t Answer, refer to ASYD SYS1 Index5
(separate/common access for C.F.-Busy Line and C.F.-Don’t Answer). If common access codes are
assigned, only one key is required to activate the features. If separate access codes are assigned, separate
function keys must be assigned.
17.   The FKY = 55: One-Touch changeover (PAGE) should be assigned when...
