NEC Neax 2400 Ipx Office Data Specification

NDA-24298 CHAPTER 4
Page 507
Issue 1
ADA2 : Assignment of DTE Attribute Data 2
ADA2: Assignment of DTE Attribute Data 2
1. General
This command assigns the Attribute Data for the data communication service feature of the Data Adapter (DA)
with the D
term and/or the Data Module (DM).
2. Precautions
When the designated station is not a DTE (DA/DM), the Attribute Data cannot be assigned and an error code
will result.
3. Data Entry Instructions
See data sheet in Section 4.

CHAPTER 4 NDA-24298
Page 508
Issue 1
ADA2 : Assignment of DTE Attribute Data 2
4. Data Sheet
CDN           TENANT NUMBER (TN)
                                       STATION
                                           NUMBER
FUNCTION                                    (STN)
1DTR (ER) CONTROL (DTR)
0 = Check 1 = No Check
2AUTO ANSWER (AUTO)
0 = Manual Answer
1=Auto Answer
3MODEM No. FOR
ORIGINATING (MDM1)
0 = No MODEM
1-8 = MODEM Number
4MODEM No.FOR
INCOMING (MDM2)
0 = No MODEM
1-8 = MODEM Number
5BIT...

NDA-24298 CHAPTER 4
Page 509
Issue 1
ADA2 : Assignment of DTE Attribute Data 2
10APPLICATION CODE (CODE)
0 = No Character
1 = ASCII (7-bit) Even Parity
2 = ASCII (7-bit) Odd Parity
3 = ASCII (7-bit) Parity is “0”
4 = ASCII (7-bit) Parity is “1”
5 = JIS (7-bit) Even Parity
6 = JIS (7-bit) Odd Parity
7 = JIS (8-bit)
8 = EBCDIC (8-bit)
9 = IA#5 (7-bit)
10 = ITA#2 (5-bit)
11 = EBCD
12-15=Not used
11PROFILE NUMBER (PRFN)
0-63
12HOT LINE TERMINAL (HL)
0 = No Hotline 1 = Hotline
13HOT LINE ORIGINATE...

CHAPTER 4 NDA-24298
Page 510
Issue 1
ADA2_T : Assignment of DTE Attribute Data 2 – Telephone Number
ADA2_T : Assignment of DTE Attribute Data 2 – Telephone Number
1. General
This command is used to assign the Attribute Data for the data communication service feature of the data adapter
(DA) with the D
term and/or the data module (DM). The station data of ADA2 command can be assigned by using
Telephone Number instead.
2. Precautions
1. Only the Telephone Numbers assigned by the ALGSN command can be used....

NDA-24298 CHAPTER 4
Page 511
Issue 1
ADA2_T : Assignment of DTE Attribute Data 2 – Telephone Number
4. Data Sheet
Note: The existing data can be readout by pressing “Get” button after UGN and TELN is entered.
CDNUser Group Number (UGN)
Telephone Number (TELN) Max. 16 digits
1DTRDTR (ER) Control (0/1)
0=Check 1=No Check
2AUTOAuto Answer (0/1)
0=Manual Answer
1=Auto Answer
3MDM1Outgoing MODEM Number (0-8)
0=No MODEM
1-8=MODEM Number
4MDM2Incoming MODEM Number (0-8)
0=No MODEM
1-8=MODEM Number
5 SPDBit...

CHAPTER 4 NDA-24298
Page 512
Issue 1
ADA2_T : Assignment of DTE Attribute Data 2 – Telephone Number
CDNUser Group Number (UGN)
Telephone Number (TELN) Max. 16 digits
11 PRFN Profile Number (0-63)
12 HLHot Line Terminal (0/1)
0=No Hot Line
1=Hot Line
13 HLTHot Line Originate (0/1)
0=DTR (ER) Signal ON
1=Normal Originate Operation
14 RAKind of RA (0-15)
0=PROTIMS
1=PROTIMS
2=DMI Mode2
3=PROTIMS
4=V. 110 5=V. 120
6=X. 30 7-15=Not used
Note:
In case of “PROTIMS”,
assign “0”.

NDA-24298 CHAPTER 4
Page 513
Issue 1
AFCD : Assignment of Fixed Connection-Nailed Down Connection-Data
AFCD: Assignment of Fixed Connection-Nailed Down Connection-Data
1. General
This command assigns (connect link), deletes (release link), and displays the data (linked LENS) pertaining to
Fixed Connections (Nailed Down Connections).
2. Precautions
1. The Nailed Down connections available among the following circuit cards/terminals.
Single Line station (Line circuit)
D
term(ELC/DLC)
Trunk (DTI, etc.)...

CHAPTER 4 NDA-24298
Page 514
Issue 1
AFCD : Assignment of Fixed Connection-Nailed Down Connection-Data
Note 1:
 When DTI is used for Data Communication, Pad Data must be “7” (binary 111).
Note 2:When bit stealing (signaling bit) is used in DTI, signaling bit (CD RS bit) is lost.
0/1 = -/To inhibit stealing bit (signaling bit) per channel in DTI
3. Data Entry Instructions
LINEb
00/1 : Reverse OFF/ON
b
10/1 : PAD OFF/ON
b
2Not used
b3
b4-b7
Table 4-19 EAD-A and EAD-B Parameters (Continued)
KIND OF...

NDA-24298 CHAPTER 4
Page 515
Issue 1
AFCD : Assignment of Fixed Connection-Nailed Down Connection-Data

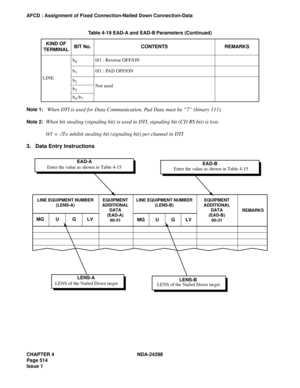

4. Data Sheet
LINE EQUIPMENT
NUMBER (SIDE A)
(LENS-A)EQUIPMENT
ADDITIONAL
DATA
(EAD-A)LINE EQUIPMENT
NUMBER
(SIDE B)
(LENS-B)EQUIPMENT
ADDITIONAL
DATA
(EAD-B)REMARKS
M G U G LV M G U G LV

CHAPTER 4 NDA-24298
Page 516
Issue 1
ARTD : Assignment of Route Class Data
ARTD: Assignment of Route Class Data
1. General
This command assigns the Route Class Data.
2. Precautions
1. The ARTD command should be assigned for all external trunk routes and the dummy route for LCR/
LCRS.
2. The applicable number of the external trunk route is designated by the ASYD command, SYS1,
INDEX65.
3. The standard route class data is shown in the example. (which is listed after the parameter descriptions)
4....
