BASIC OPERATIONS
BASIC
OPERATIONS
69

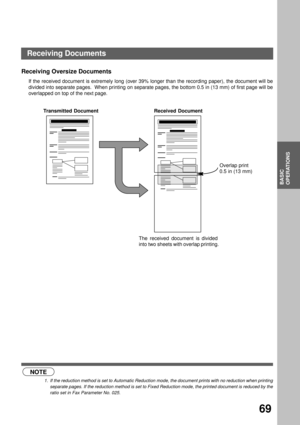

Receiving Oversize Documents
If the received document is extremely long (over 39% longer than the recording paper), the document will be
divided into separate pages.  When printing on separate pages, the bottom 0.5 in (13 mm) of first page will be
overlapped on top of the next page.
 (see Note 1)
NOTE
1. If the reduction method is set to Automatic Reduction mode, the document prints with no reduction when printing
separate pages. If the reduction method is set to...

BASIC OPERATIONS
70

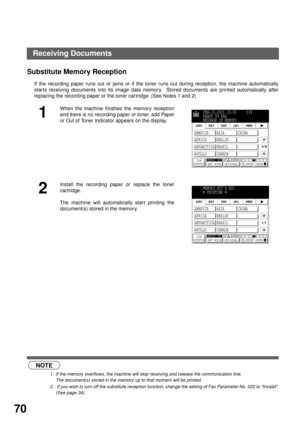

Substitute Memory Reception (see Note 1) (see Note 2)
If the recording paper runs out or jams or if the toner runs out during reception, the machine automatically
starts receiving documents into its image data memory.  Stored documents are printed automatically after
replacing the recording paper or the toner car tridge. (See Notes 1 and 2)
NOTE
1. If the memory overflows, the machine will stop receiving and release the communication line.
The document(s) stored in the memory up to...

ADVANCED
FEATURES
71
Advanced Features

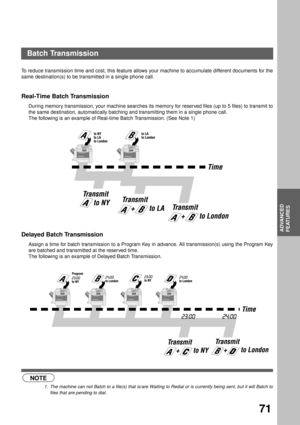

Batch Transmission
To reduce transmission time and cost, this feature allows your machine to accumulate different documents for the
same destination(s) to be transmitted in a single phone call.
Real-Time Batch Transmission
During memory transmission, your machine searches its memory for reserved files (up to 5 files) to transmit to
the same destination, automatically batching and transmitting them in a single phone call.
The following is an example of Real-time...

ADVANCED FEATURES
72

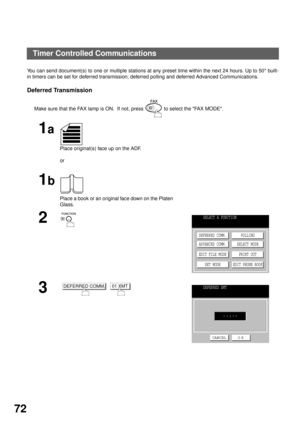

Timer Controlled Communications
You can send document(s) to one or multiple stations at any preset time within the next 24 hours. Up to 50* built-
in timers can be set for deferred transmission, deferred polling and deferred Advanced Communications.
Deferred Transmission (see Note 1) (see Note 2)
Make sure that the FAX lamp is ON.  If not, press   to select the FAX MODE.
1a
Place original(s) face up on the ADF.
or
1b
Place a book or an original face down on the Platen
Glass.
2

3...

ADVANCED FEATURES
ADVANCED
FEATURES
73

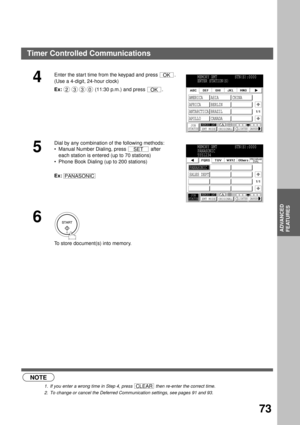

NOTE
1. If you enter a wrong time in Step 4, press   then re-enter the correct time.
2. To change or cancel the Deferred Communication settings, see pages 91 and 93.
4
Enter the start time from the keypad and press  .
(Use a 4-digit, 24-hour clock)
Ex:  (11:30 p.m.) and press  .
5
Dial by any combination of the following methods:
Manual Number Dialing, press   after
each station is entered (up to 70 stations)
Phone Book Dialing (up to 200 stations)
Ex:
6

To...

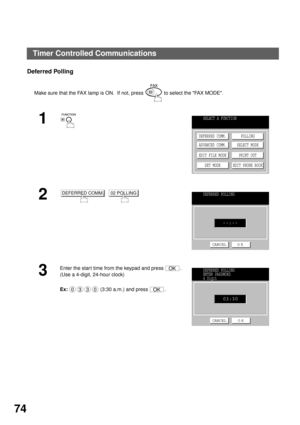

ADVANCED FEATURES
74
Deferred Polling
Make sure that the FAX lamp is ON.  If not, press   to select the FAX MODE.
1

2
3
Enter the star t time from the keypad and press  .
(Use a 4-digit, 24-hour clock)
Ex:  (3:30 a.m.) and press  .
SELECT A FUNCTION
DEFERRED COMM.
ADVANCED COMM.
EDIT FILE MODE
SET MODEPOLLING
SELECT MODE
PRINT OUT
EDIT PHONE BOOK
DEFERRED COMM.02 POLLINGDEFERRED POLLING
--:--
CANCEL O K
OK
0330OK
DEFERRED POLLING
ENTER PASSWORD
4 Digit
CANCEL O K
03:30
Timer Controlled Communications

ADVANCED FEATURES
ADVANCED
FEATURES
75
 (see Note 1)
 (see Note 2)

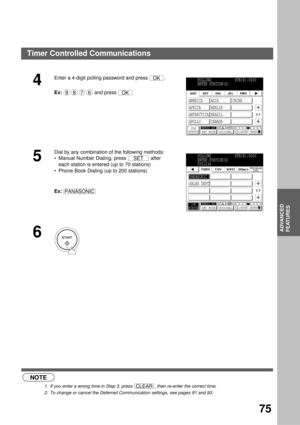

4
Enter a 4-digit polling password and press  .
Ex: and press
5
Dial by any combination of the following methods:
Manual Number Dialing, press   after
each station is entered (up to 70 stations)
Phone Book Dialing (up to 200 stations)
Ex:
6
NOTE
1. If you enter a wrong time in Step 3, press  , then re-enter the correct time.
2. To change or cancel the Deferred Communication settings, see pages 91 and 93.
OK
9876OK
POLLING...

ADVANCED FEATURES
76

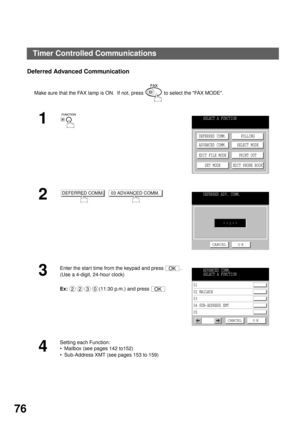

Deferred Advanced Communication
Make sure that the FAX lamp is ON.  If not, press   to select the FAX MODE.
1
2

3
Enter the star t time from the keypad and press  .
(Use a 4-digit, 24-hour clock)
Ex:(11:30 p.m.) and press
4
Setting each Function:
Mailbox (see pages 142 to152)
Sub-Address XMT (see pages 153 to 159)
SELECT A FUNCTION
DEFERRED COMM.
ADVANCED COMM.
EDIT FILE MODE
SET MODEPOLLING
SELECT MODE
PRINT OUT
EDIT PHONE BOOK
DEFERRED COMM.03 ADVANCED COMM.DEFERRED ADV....

ADVANCED FEATURES
ADVANCED
FEATURES
77

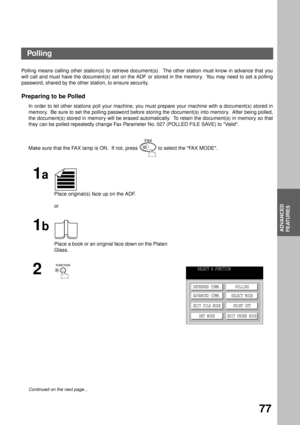

Polling
Polling means calling other station(s) to retrieve document(s).  The other station must know in advance that you
will call and must have the document(s) set on the ADF or stored in the memory.  You may need to set a polling
password, shared by the other station, to ensure security.
Preparing to be Polled
In order to let other stations poll your machine, you must prepare your machine with a document(s) stored in
memory.  Be sure to set the polling password...

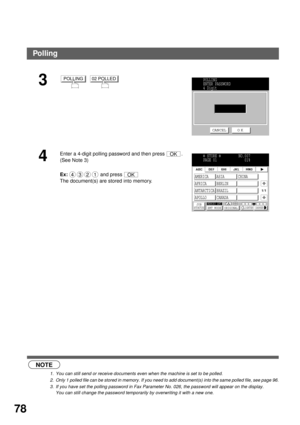

ADVANCED FEATURES
78
 (see Note 1)
 (see Note 2)
 (see Note 3)
3
4
Enter a 4-digit polling password and then press  .
(See Note 3)
Ex:  and press
The document(s) are stored into memory.
NOTE
1. You can still send or receive documents even when the machine is set to be polled.
2. Only 1 polled file can be stored in memory. If you need to add document(s) into the same polled file, see page 96.
3. If you have set the polling password in Fax Parameter No. 026, the password will appear on the display....
