- 101 -

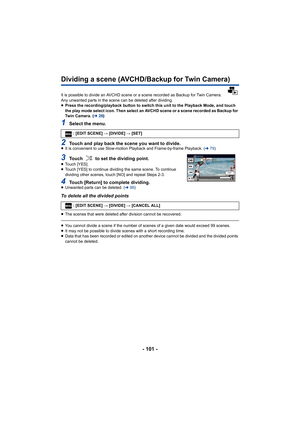

Dividing a scene (AVCHD/Backup for Twin Camera)
It is possible to divide an AVCHD scene or a scene recorded as Backup for Twin Camera.
Any unwanted parts in the scene can be deleted after dividing.
≥ Press the recording/playback button to switch this unit to the Playback Mode, and touch
the play mode select icon. Then select an AVCHD scene or a scen e recorded as Backup for
Twin Camera. ( l26)
1Select the menu.
2Touch and play back the scene you want to divide.≥It is convenient to use...

- 102 -

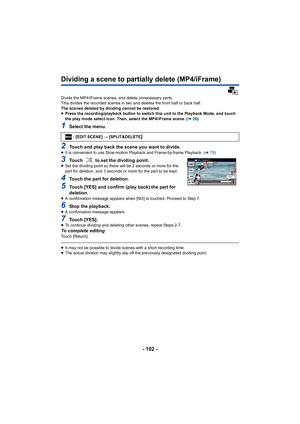

Dividing a scene to partially delete (MP4/iFrame)
Divide the MP4/iFrame scenes, and delete unnecessary parts.
This divides the recorded scenes in two and deletes the front half or back half.
The scenes deleted by dividing cannot be restored.
≥ Press the recording/playback button to switch this unit to the Playback Mode, and touch
the play mode select icon. Then, select the MP4/iFrame scene. ( l26)
1Select the menu.
2Touch and play back the scene you want to divide.≥It is convenient to use...

- 103 -

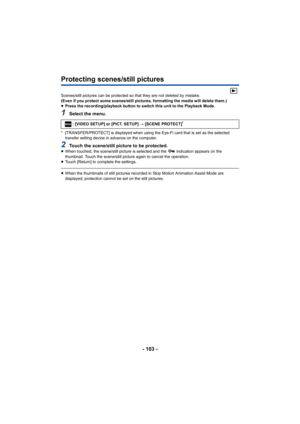

Protecting scenes/still pictures
Scenes/still pictures can be protected so that they are not deleted by mistake.
(Even if you protect some scenes/still pictures, formatting the  media will delete them.)
≥ Press the recording/playback button to switch this unit to the  Playback Mode.
1Select the menu.
* [TRANSFER/PROTECT] is displayed when using the Eye-Fi card tha t is set as the selected
transfer setting device in advance on the computer.
2Touch the scene/still picture to be protected.≥ When...

- 104 -

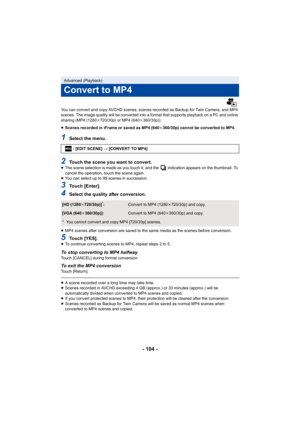

You can convert and copy AVCHD scenes, scenes recorded as Backup for Twin Camera, and MP4
scenes. The image quality will be converted into a format that  supports playback on a PC and online
sharing (MP4 (1280 k720/30p) or MP4 (640 k360/30p)).
≥ Scenes recorded in iFrame or saved as MP4 (640 k360/30p) cannot be converted to MP4.
1Select the menu.
2Touch the scene you want to convert.≥ The scene selection is made as you touch it, and the   indicatio n appears on the thumbnail. To
cancel the...

- 105 -

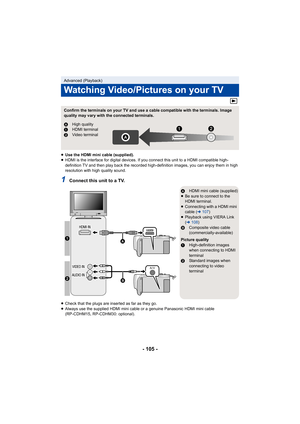

≥Use the HDMI mini cable (supplied).
≥ HDMI is the interface for digital devices. If you connect this  unit to a HDMI compatible high-
definition TV and then play bac k the recorded high-definition images, you can enjoy them in high
resolution with high quality sound.
1Connect this unit to a TV.
≥ Check that the plugs are inserted as far as they go.
≥ Always use the supplied HDMI mini cable or a genuine Panasonic  HDMI mini cable
(RP-CDHM15, RP-CDHM30: optional).
Advanced (Playback)
Watching...

- 106 -

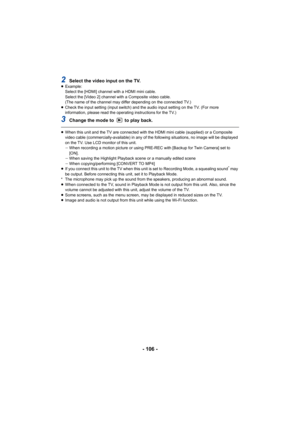

2Select the video input on the TV.≥Example:
Select the [HDMI] channel with a HDMI mini cable.
Select the [Video 2] channel with a Composite video cable.
(The name of the channel may differ depending on the connected  TV.)
≥ Check the input setting (input switch) and the audio input sett ing on the TV. (For more
information, please read the operating instructions for the TV. )
3Change the mode to   to play back.
≥When this unit and the TV are connected with the HDMI mini cabl e (supplied) or a...

- 107 -
∫

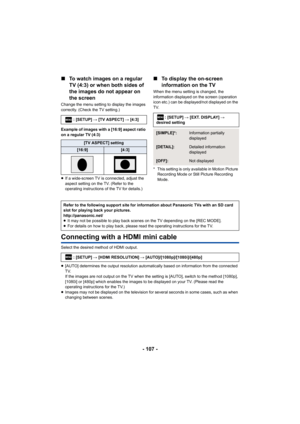

To watch images on a regular
TV (4:3) or when both sides of
the images do not appear on
the screen
Change the menu setting to display the images
correctly. (Check the TV setting.)
Example of images with a [16:9] aspect ratio
on a regular TV (4:3)
≥If a wide-screen TV is connected, adjust the
aspect setting on the TV. (Refer to the
operating instructions of the TV for details.)
∫ To display the on-screen
information on the TV
When the menu setting is changed, the
information displayed...

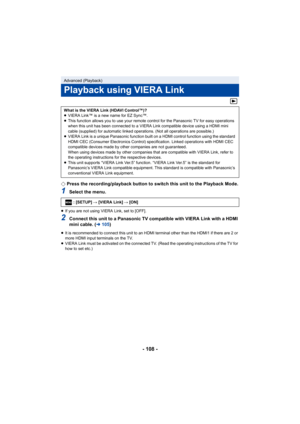

- 108 -
¬Press the recording/playback button to switch this unit to the  Playback Mode.
1Select the menu.
≥If you are not using VIERA Link, set to [OFF].
2Connect this unit to a Panasonic TV compatible with VIERA Link w ith a HDMI
mini cable. ( l105)
≥It is recommended to connect this unit to an HDMI terminal othe r than the HDMI1 if there are 2 or
more HDMI input terminals on the TV.
≥ VIERA Link must be activated on the connected TV. (Read the oper ating instructions of the TV for
how to set etc.)...

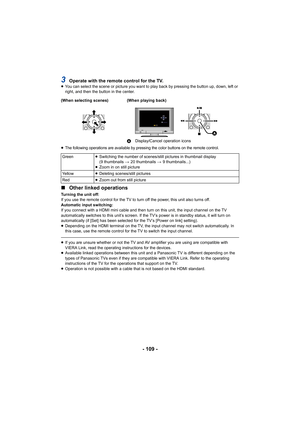

- 109 -
3Operate with the remote control for the TV.≥You can select the scene or picture you want to play back by pr essing the button up, down, left or
right, and then the button in the center.
≥
The following operations are available by pressing the color bu ttons on the remote control.
∫Other linked operations
Turning the unit off:
If you use the remote control for the TV to turn off the power,  this unit also turns off.
Automatic input switching:
If you connect with a HDMI mini cable and then turn...

- 110 -

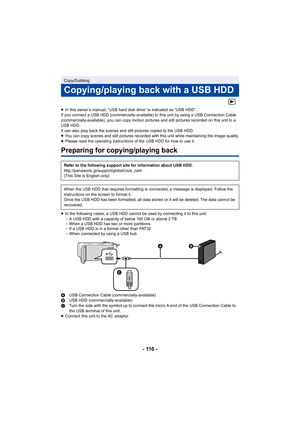

≥In this owner’s manual, “USB hard  disk drive” is indicated as “USB HDD”.
If you connect a USB HDD (commercially-available) to this unit  by using a USB Connection Cable
(commercially-available), you can copy motion pictures and stil l pictures recorded on this unit to a
USB HDD.
It can also play back the scenes and still pictures copied to t he USB HDD.
≥ You can copy scenes and still pictures recorded with this unit  while maintaining the image quality.
≥ Please read the operating...
