Panasonic Hc W570 Owners Manual

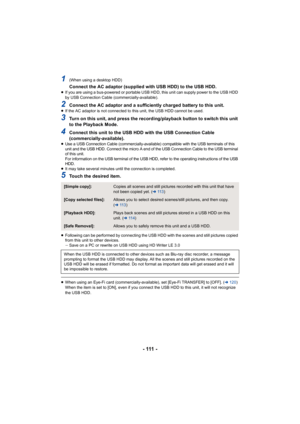

- 111 -
1(When using a desktop HDD)
Connect the AC adaptor (supplied with USB HDD) to the USB HDD.≥If you are using a bus-powered or portable USB HDD, this unit c an supply power to the USB HDD
by USB Connection Cable (commercially-available).
2Connect the AC adaptor and a sufficiently charged battery to th is unit.≥If the AC adaptor is not connected to this unit, the USB HDD ca nnot be used.
3Turn on this unit, and press the recording/playback button to s witch this unit
to the Playback Mode.
4Connect...

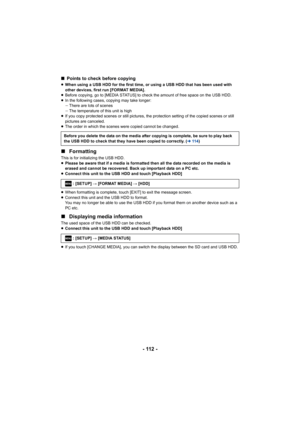

- 112 -
∫Points to check before copying
≥When using a USB HDD for the first time, or using a USB HDD tha t has been used with
other devices, first run [FORMAT MEDIA].
≥ Before copying, go to [MEDIA STATUS] to check the amount of fre e space on the USB HDD.
≥ In the following cases, copying may take longer:
jThere are lots of scenes
j The temperature of this unit is high
≥ If you copy protected scenes or still pictures, the protection  setting of the copied scenes or still
pictures are canceled.
≥ The...

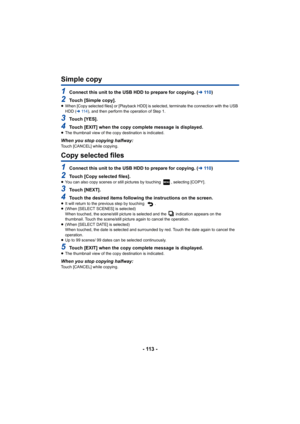

- 113 -
Simple copy
1Connect this unit to the USB HDD to prepare for copying. (l11 0 )
2Touch [Simple copy].≥When [Copy selected files] or [Playback HDD] is selected, termi nate the connection with the USB
HDD ( l11 4 ), and then perform the operation of Step 1.
3Touch [YES].
4Touch [EXIT] when the copy complete message is displayed.≥The thumbnail view of the copy destination is indicated.
When you stop copying halfway:Touch [CANCEL] while copying.
Copy selected files
1Connect this unit to the USB HDD...

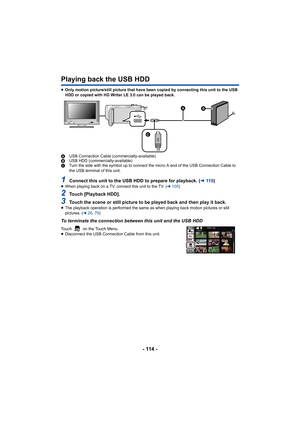

- 114 -
Playing back the USB HDD
≥Only motion picture/still picture that have been copied by conn ecting this unit to the USB
HDD or copied with HD Writer LE 3.0 can be played back.
A USB Connection Cable (commercially-available)
B USB HDD (commercially-available)
C Turn the side with the symbol up to connect the micro A end of  the USB Connection Cable to
the USB terminal of this unit.
1Connect this unit to the USB HDD to prepare for playback. ( l110 )≥When playing back on a TV, connect this unit to...

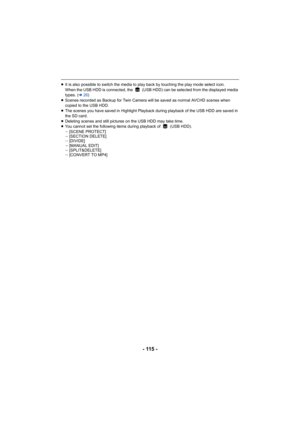

- 115 -
≥It is also possible to switch the media to play back by touching the play mode select icon.
When the USB HDD is connected, the   (USB HDD) can be selected f rom the displayed media
types. ( l26)
≥ Scenes recorded as Backup for Twin Camera will be saved as norm al AVCHD scenes when
copied to the USB HDD.
≥ The scenes you have saved in Highlight Playback during playback  of the USB HDD are saved in
the SD card.
≥ Deleting scenes and still pictures on the USB HDD may take time .
≥ You cannot set...

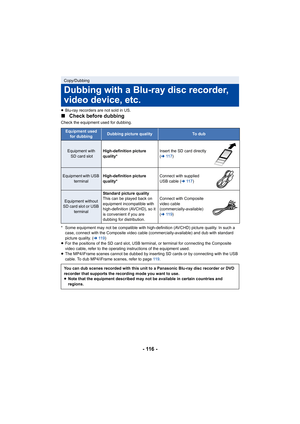

- 116 -
≥Blu-ray recorders are not sold in US.
∫ Check before dubbing
Check the equipment used for dubbing.
* Some equipment may not be compatible with high-definition (AVC HD) picture quality. In such a
case, connect with the Composite video cable (commercially-avai lable) and dub with standard
picture quality. ( l11 9 )
≥ For the positions of the SD car d slot, USB terminal, or terminal for connecting the Composite
video cable, refer to the operating instructions of the equipme nt used.
≥ The...

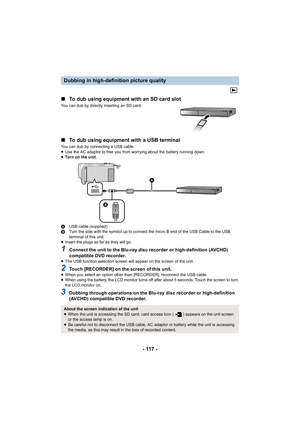

- 117 -
∫
To dub using equipment with an SD card slot
You can dub by directly inserting an SD card.
∫To dub using equipment with a USB terminal
You can dub by connecting a USB cable.
≥Use the AC adaptor to free you from worrying about the battery  running down.
≥ Tu r n   o n   t h e   u n i t .
A USB cable (supplied)
B Turn the side with the symbol up to connect the micro B end of  the USB Cable to the USB
terminal of this unit.
≥ Insert the plugs as far as they will go.
1Connect the unit to the...

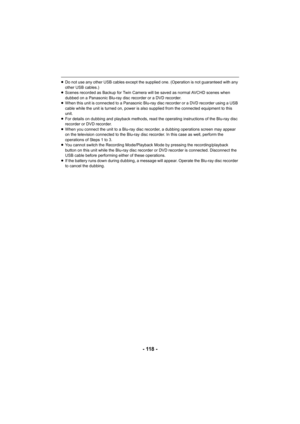

- 118 -
≥Do not use any other USB cables except the supplied one. (Opera tion is not guaranteed with any
other USB cables.)
≥ Scenes recorded as Backup for Twin Camera will be saved as norm al AVCHD scenes when
dubbed on a Panasonic Blu-ray disc recorder or a DVD recorder.
≥ When this unit is connected to a Panasonic Blu-ray disc recorde r or a DVD recorder using a USB
cable while the unit is turned on, power is also supplied from  the connected equipment to this
unit.
≥ For details on dubbing and...

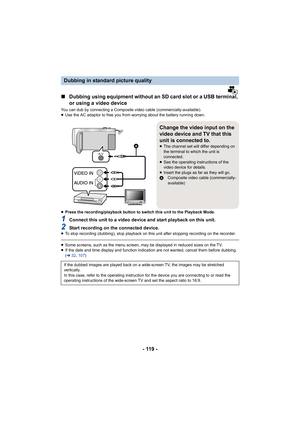

- 119 -
∫Dubbing using equipment without an SD card slot or a USB termin al,
or using a video device
You can dub by connecting a Composite video cable (commercially -available).
≥ Use the AC adaptor to free you from worrying about the battery  running down.
≥ Press the recording/playback button to switch this unit to the  Playback Mode.
1Connect this unit to a video device and start playback on this  unit.
2Start recording on the connected device.≥To stop recording (dubbing), stop playback on this unit...

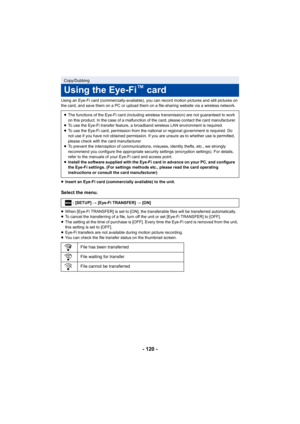

- 120 -
Using an Eye-Fi card (commercially-available), you can record motion pictures and still pictures on
the card, and save them on a PC or upload them on a file-sharin g website via a wireless network.
≥ Insert an Eye-Fi card (commercially available) to the unit.
Select the menu.
≥When [Eye-Fi TRANSFER] is set to [ON], the transferable files w ill be transferred automatically.
≥ To cancel the transferring of a file, turn off the unit or set  [Eye-Fi TRANSFER] to [OFF].
≥ The setting at the time of...
