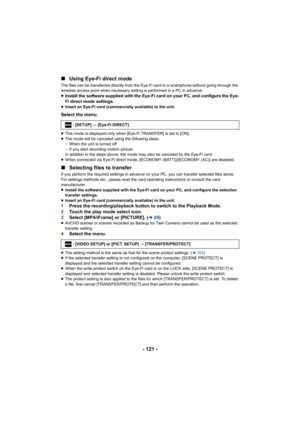

- 121 -
∫
Using Eye-Fi direct mode
The files can be transferred directly from the Eye-Fi card to a smartphone without going through the
wireless access point when necessary setting is performed in a  PC in advance.
≥Install the software supplied with the Eye-Fi card on your PC, and configure the Eye-
Fi direct mode settings.
≥ Insert an Eye-Fi card (commercially available) to the unit.
Select the menu.
≥This mode is displayed only when [Eye-Fi TRANSFER] is set to [ON].
≥ The mode will be canceled using...

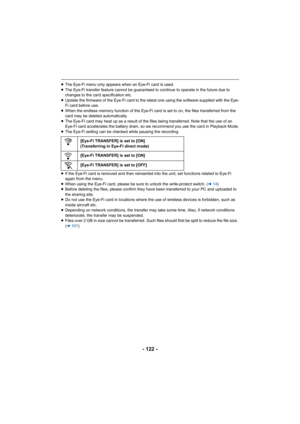

- 122 -
≥The Eye-Fi menu only appears when an Eye-Fi card is used.
≥ The Eye-Fi transfer feature cannot be guaranteed to continue to  operate in the future due to
changes to the card specification etc.
≥ Update the firmware of the Eye-Fi card to the latest one using  the software supplied with the Eye-
Fi card before use.
≥ When the endless memory function of the Eye-Fi card is set to o n, the files transferred from the
card may be deleted automatically.
≥ The Eye-Fi card may heat up as a result of the...

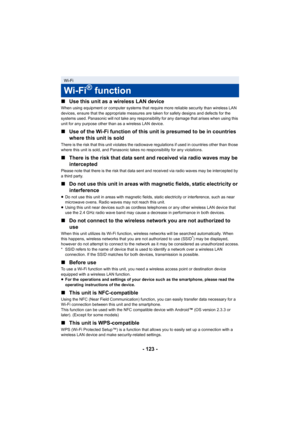

- 123 -
∫
Use this unit as a wireless LAN device
When using equipment or computer systems that require more reli able security than wireless LAN
devices, ensure that the appropriate measures are taken for saf ety designs and defects for the
systems used. Panasonic will not take any responsibility for an y damage that arises when using this
unit for any purpose other than as a wireless LAN device.
∫ Use of the Wi-Fi function of this unit is presumed to be in cou ntries
where this unit is sold
There is...

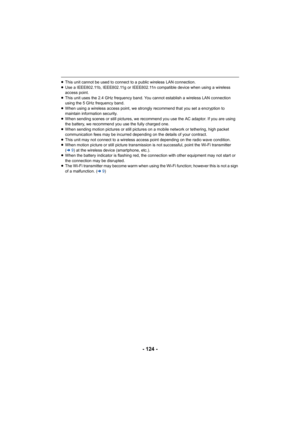

- 124 -
≥This unit cannot be used to connect to a public wireless LAN co nnection.
≥ Use a IEEE802.11b, IEEE802.11g or IEEE802.11n compatible device  when using a wireless
access point.
≥ This unit uses the 2.4 GHz frequency band. You cannot establish  a wireless LAN connection
using the 5 GHz frequency band.
≥ When using a wireless access point, we strongly recommend that you set a encryption to
maintain information security.
≥ When sending
scenes or still pictures, we recommend you use the AC...

- 125 -

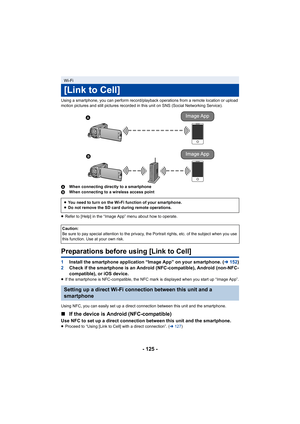

Using a smartphone, you can perform record/playback operations from a remote location or upload
motion pictures and still pictures recorded in this unit on SNS  (Social Networking Service).
A When connecting directly to a smartphone
B When connecting to a wireless access point
≥ Refer to [Help] in the “Image App” menu about how to operate.
Preparations before using [Link to Cell]
1 Install the smartphone application “Image App” on your smartpho ne. (l152)
2 Check if the smartphone is an Android...

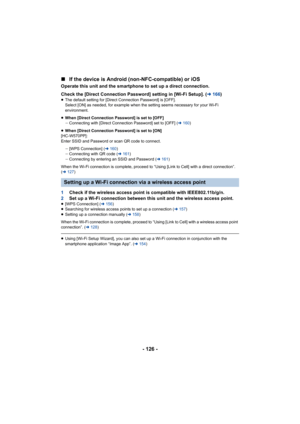

- 126 -
∫
If the device is Android (n on-NFC-compatible) or iOS
Operate this unit and the smartphone to set up a direct connect ion.
Check the [Direct Connection Password] setting in [Wi-Fi Setup] . (l 166 )
≥The default setting for [Direct Connection Password] is [OFF].
Select [ON] as needed, for example when the setting seems neces sary for your Wi-Fi
environment.
≥ When [Direct Connection Password] is set to [OFF]
jConnecting with [Direct Connection Password] set to [OFF] ( l160 )
≥ When [Direct...

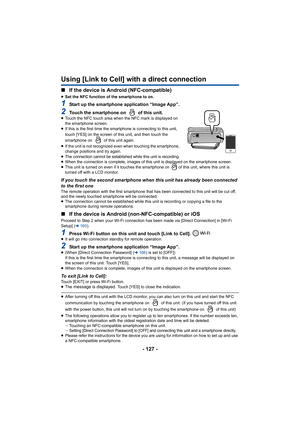

- 127 -
Using [Link to Cell] with a direct connection
∫If the device is Android (NFC-compatible)
≥Set the NFC function of the smartphone to on.
1Start up the smartphone application “Image App”.
2Touch the smartphone on   of this unit.≥Touch the NFC touch area when the NFC mark is displayed on
the smartphone screen.
≥ If this is the first time the sm artphone is connecting to this  unit,
touch [YES] on the screen of this unit, and then touch the
smartphone on   of this unit again.
≥ If the unit is not...

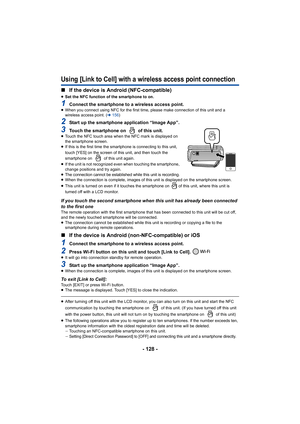

- 128 -
Using [Link to Cell] with a wireless access point connection
∫If the device is Android (NFC-compatible)
≥Set the NFC function of the smartphone to on.
1Connect the smartphone to a wireless access point.≥When you connect using NFC for  the first time, please make connection of this unit and a
wireless access point. ( l156 )
2Start up the smartphone application “Image App”.
3Touch the smartphone on   of this unit.≥Touch the NFC touch area when the NFC mark is displayed on
the smartphone screen.
≥...

- 129 -
≥Please refer the instructions for the device you are using for  information on how to set up and use
a NFC-compatible smartphone.
About [Link to Cell]
Smartphone screen shots are examp le displayed in Motion Picture Recording Mode and Playback
Mode.
≥ Depending on your OS or the version of the smartphone applicati on “Image App”, the screens
may differ from the ones above.
Screen display during remote operations
Recording screen
1Recording media/remaining recordable
time
2 Remaining battery...

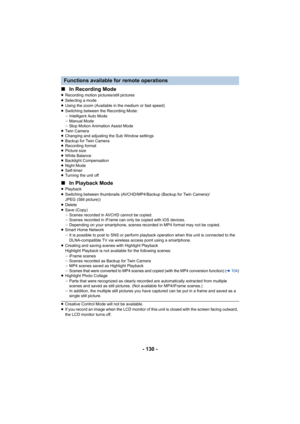

- 130 -
∫
In Recording Mode
≥Recording motion pictures/still pictures
≥ Selecting a mode
≥ Using the zoom (Available in the medium or fast speed)
≥ Switching between the Recording Mode:
jIntelligent Auto Mode
j Manual Mode
j Stop Motion Animation Assist Mode
≥ Twin Camera
≥ Changing and adjusting the Sub Window settings
≥ Backup for Twin Camera
≥ Recording format
≥ Picture size
≥ White Balance
≥ Backlight Compensation
≥ Night Mode
≥ Self-timer
≥ Turning the unit off
∫ In Playback Mode≥Playback
≥...
