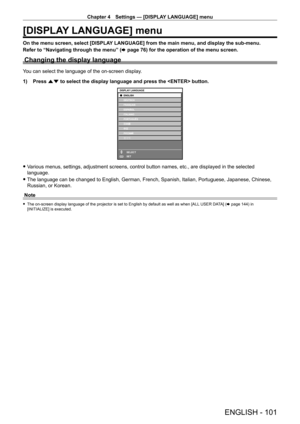

Chapter 4 Settings — [DISPLAY LANGUAGE] menu
ENGLISH - 101
[DISPLAY LANGUAGE] menu
On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-menu.
Refer to “Navigating through the menu” (x
  page   76) for the operation of the menu screen.
Changing the display language
You can select the language of the on-screen display.
1)

Press
 as to select the display language and press the  button.
ENTER
DISPLAY LANGUAGE
SELECT
SET
 fVarious menus, settings, adjustment screens,...

Chapter 4 Settings — [3D SETTINGS] menu
102 - ENGLISH

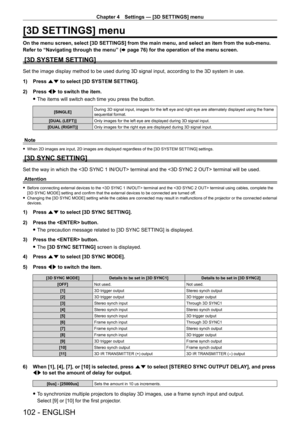

[3D SETTINGS] menu
On the menu screen, select [3D SETTINGS] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
  page   76) for the operation of the menu screen.
[3D SYSTEM SETTING]
Set the image display method to be used during 3D signal input, accordin\
g to the 3D system in use.
1)

Press
 as to select [3D SYSTEM SETTING].
2)

Press
 qw to switch the item.
 fThe items will switch each time you...

Chapter 4 Settings — [3D SETTINGS] menu
ENGLISH - 103

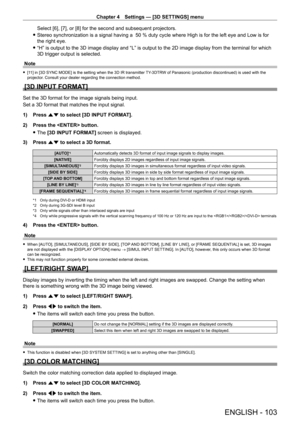

Select [6], [7], or [8] for the second and subsequent projectors.
 fStereo synchronization is a signal having a

  50   % duty cycle where High is for the left eye and Low is for
the right eye.
 f “H” is output to the 3D image display and “L” is output to the 2D image display from the terminal for which
3D trigger output is selected.
Note
 f [11] in [3D SYNC MODE] is the setting when the 3D IR transmitter TY-3DTRW of Panasonic (production...

Chapter 4 Settings — [3D SETTINGS] menu
104 - ENGLISH
[SHARED 2D/3D]Uses same correction data for 2D signal and 3D signal.
[SEPARATE 2D/3D] Uses different correction data for 2D signal and 3D signal.
Note
 fSwitch the setting of [COLOR MA TCHING] (x   page   107) while the signal to be adjusted is being input.

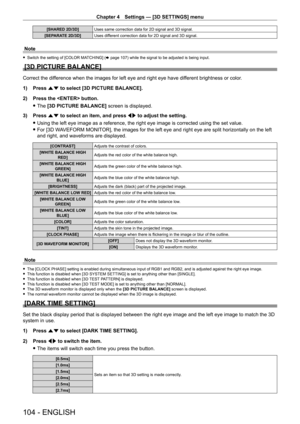

[3D PICTURE BALANCE]
Correct the difference when the images for left eye and right eye have different brightness or color.
1)

Press
 as to select [3D PICTURE BALANCE].
2)

Press the  button....

Chapter 4 Settings — [3D SETTINGS] menu
ENGLISH - 105
Note
 fThis function is disabled when [3D SYSTEM SETTING] is set to anything other than [SINGLE]. fThe crosstalk may get larger or the displayed image may get darker when \
the setting does not match with the 3D system in use.

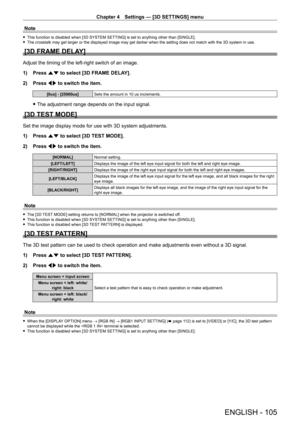

[3D FRAME DELAY]
Adjust the timing of the left-right switch of an image.
1)

Press
 as to select [3D FRAME DELAY].
2)

Press
 qw to switch the item.
[0us] - [25000us] Sets the amount in 10   us increments.
 fThe adjustment...

Chapter 4 Settings — [3D SETTINGS] menu
106 - ENGLISH

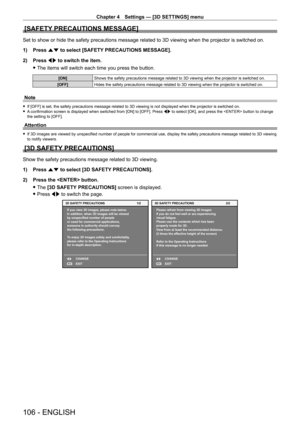

[SAFETY PRECAUTIONS MESSAGE]
Set to show or hide the safety precautions message related to 3D viewing\
 when the projector is switched on.
1)
Press
 as to select [SAFETY PRECAUTIONS MESSAGE].
2)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[ON] Shows the safety precautions message related to 3D viewing when the proj\
ector is switched on.
[OFF] Hides the safety precautions message related to 3D viewing...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 107

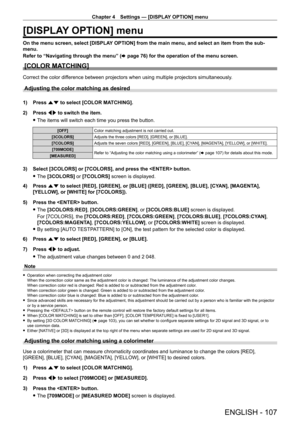

[DISPLAY OPTION] menu
On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub-
menu.
Refer to “Navigating through the menu” (x
  page   76) for the operation of the menu screen.
[COLOR MATCHING]
Correct the color difference between projectors when using multiple projectors simultaneously\
.
Adjusting the color matching as desired
1) Press as to select [COLOR MATCHING].
2)
Press
 qw to switch the item....

Chapter 4 Settings — [DISPLAY OPTION] menu
108 - ENGLISH

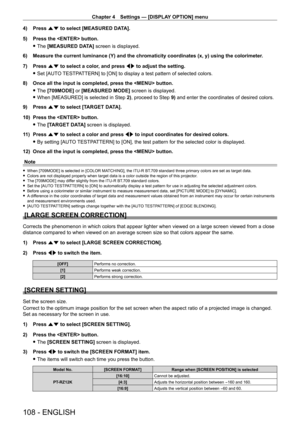

4) Press as to select [MEASURED DATA].
5)
Press the  button.
 fThe

[MEASURED DATA] screen is displayed.
6)

Measure the current luminance (Y) and the chromaticity coordinates (x, y) using the colorimeter .
7)


Press
 as to select a color, and press qw to adjust the setting.
 fSet [AUT

O TESTPATTERN] to [ON] to display a test pattern of selected colors.
8)

Once all the input is completed, press the  button.
 fThe

[709MODE] or [MEASURED...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 109

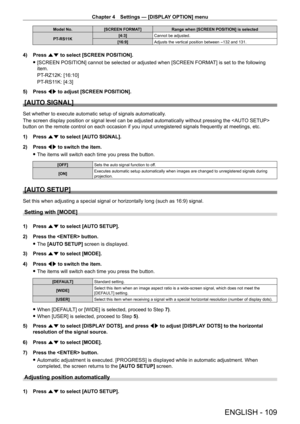

Model No.[SCREEN FORMAT] Range when [SCREEN POSITION] is selected
PT
-
 RS11K [4:3]
Cannot be adjusted.
[16:9] Adjusts the vertical position between
-132 and 131.
4) Press as to select [SCREEN POSITION].
 f[SCREEN POSITION] cannot be selected or adjusted when [SCREEN FORMA T] is set to the following
item.
PT
-

RZ12K: [16:10]
PT
-

RS11K: [4:3]
5)

Press
 qw to adjust [SCREEN POSITION].
[AUTO SIGNAL]
Set whether to execute automatic setup of...

Chapter 4 Settings — [DISPLAY OPTION] menu

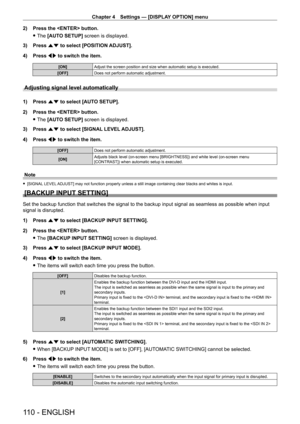

110 - ENGLISH
2) Press the  button.
 fThe

[AUTO SETUP] screen is displayed.
3)

Press
 as to select [POSITION ADJUST].
4)

Press
 qw to switch the item.
[ON] Adjust the screen position and size when automatic setup is executed.
[OFF] Does not perform automatic adjustment.
Adjusting signal level automatically
1) Press as to select [AUTO SETUP].
2)
Press the  button.
 fThe

[AUTO SETUP] screen is displayed.
3)

Press
 as to select [SIGNAL LEVEL...
