Panasonic Projector PT-RS11K User Manual
Here you can view all the pages of manual Panasonic Projector PT-RS11K User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.
Page 91

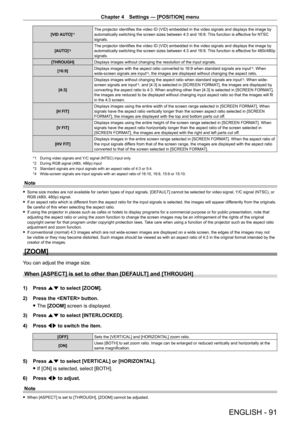

![Page 91
Chapter 4 Settings — [POSITION] menu
ENGLISH - 91
[VID AUTO]*1The projector identifies the video ID (VID) embedded in the video signals and displays the image by
automatically switching the screen sizes between 4:3 and 16:9. This function is effective for NTSC
signals.
[AUTO]
*2The projector identifies the video ID (VID) embedded in the video signals and displays the image by
automatically switching the screen sizes between 4:3 and 16:9. This function is effective for 480i/480p
signals.
[THROUGH]...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-90.png "Page 91
Chapter 4 Settings — [POSITION] menu
ENGLISH - 91
[VID AUTO]*1The projector identifies the video ID (VID) embedded in the video signals and displays the image by
automatically switching the screen sizes between 4:3 and 16:9. This function is effective for NTSC
signals.
[AUTO]
*2The projector identifies the video ID (VID) embedded in the video signals and displays the image by
automatically switching the screen sizes between 4:3 and 16:9. This function is effective for 480i/480p
signals.
[THROUGH]...")
Chapter 4 Settings — [POSITION] menu ENGLISH - 91 [VID AUTO]*1The projector identifies the video ID (VID) embedded in the video signals and displays the image by automatically switching the screen sizes between 4:3 and 16:9. This function is effective for NTSC signals. [AUTO] *2The projector identifies the video ID (VID) embedded in the video signals and displays the image by automatically switching the screen sizes between 4:3 and 16:9. This function is effective for 480i/480p signals. [THROUGH]...
Page 92

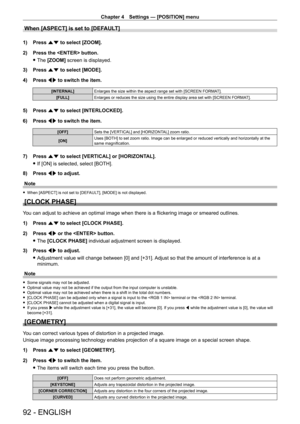

![Page 92
Chapter 4 Settings — [POSITION] menu
92 - ENGLISH
When [ASPECT] is set to [DEFAULT]
1) Press as to select [ZOOM].
2)
Press the button.
fThe
[ZOOM] screen is displayed.
3)
Press
as to select [MODE].
4)
Press
qw to switch the item.
[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMA T].
[FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMA T].
5) Press as to select [INTERLOCKED].
6)
Press
qw to switch the item.
[OFF] Sets the...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-91.png "Page 92
Chapter 4 Settings — [POSITION] menu
92 - ENGLISH
When [ASPECT] is set to [DEFAULT]
1) Press as to select [ZOOM].
2)
Press the button.
fThe
[ZOOM] screen is displayed.
3)
Press
as to select [MODE].
4)
Press
qw to switch the item.
[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMA T].
[FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMA T].
5) Press as to select [INTERLOCKED].
6)
Press
qw to switch the item.
[OFF] Sets the...")
Chapter 4 Settings — [POSITION] menu 92 - ENGLISH When [ASPECT] is set to [DEFAULT] 1) Press as to select [ZOOM]. 2) Press the button. fThe [ZOOM] screen is displayed. 3) Press as to select [MODE]. 4) Press qw to switch the item. [INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMA T]. [FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMA T]. 5) Press as to select [INTERLOCKED]. 6) Press qw to switch the item. [OFF] Sets the...
Page 93

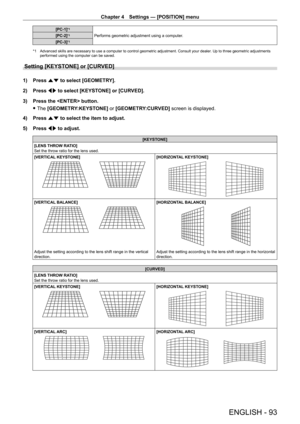

![Page 93
Chapter 4 Settings — [POSITION] menu
ENGLISH - 93
[PC-1]*1
Performs geometric adjustment using a computer.
[PC-2]*1
[PC-3]*1
*1 Advanced skills are necessary to use a computer to control geometric adjustment. Consult your dealer . Up to three geometric adjustments
performed using the computer can be saved.
Setting [KEYSTONE] or [CURVED]
1) Press as to select [GEOMETRY].
2)
Press
qw to select [KEYSTONE] or [CURVED].
3)
Press the button.
fThe
[GEOMETRY:KEYSTONE] or [GEOMETRY:CURVED] screen is...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-92.png "Page 93
Chapter 4 Settings — [POSITION] menu
ENGLISH - 93
[PC-1]*1
Performs geometric adjustment using a computer.
[PC-2]*1
[PC-3]*1
*1 Advanced skills are necessary to use a computer to control geometric adjustment. Consult your dealer . Up to three geometric adjustments
performed using the computer can be saved.
Setting [KEYSTONE] or [CURVED]
1) Press as to select [GEOMETRY].
2)
Press
qw to select [KEYSTONE] or [CURVED].
3)
Press the button.
fThe
[GEOMETRY:KEYSTONE] or [GEOMETRY:CURVED] screen is...")
Chapter 4 Settings — [POSITION] menu ENGLISH - 93 [PC-1]*1 Performs geometric adjustment using a computer. [PC-2]*1 [PC-3]*1 *1 Advanced skills are necessary to use a computer to control geometric adjustment. Consult your dealer . Up to three geometric adjustments performed using the computer can be saved. Setting [KEYSTONE] or [CURVED] 1) Press as to select [GEOMETRY]. 2) Press qw to select [KEYSTONE] or [CURVED]. 3) Press the button. fThe [GEOMETRY:KEYSTONE] or [GEOMETRY:CURVED] screen is...

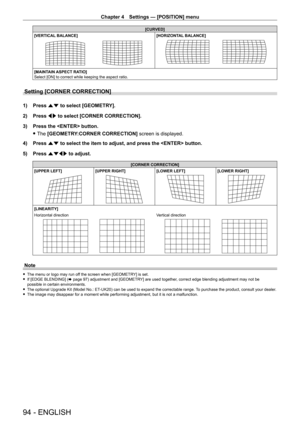

Page 94
![Page 94
Chapter 4 Settings — [POSITION] menu
94 - ENGLISH
[CURVED]
[VERTICAL BALANCE]
[HORIZONTAL BALANCE]
[MAINTAIN ASPECT RATIO]
Select [ON] to correct while keeping the aspect ratio.
Setting [CORNER CORRECTION]
1) Press as to select [GEOMETRY].
2)
Press
qw to select [CORNER CORRECTION].
3)
Press the button.
fThe
[GEOMETRY:CORNER CORRECTION] screen is displayed.
4)
Press
as to select the item to adjust, and press the button.
5)
Press
asqw to adjust.
[CORNER CORRECTION]
[UPPER LEFT]
[UPPER...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-93.png "Page 94
Chapter 4 Settings — [POSITION] menu
94 - ENGLISH
[CURVED]
[VERTICAL BALANCE]
[HORIZONTAL BALANCE]
[MAINTAIN ASPECT RATIO]
Select [ON] to correct while keeping the aspect ratio.
Setting [CORNER CORRECTION]
1) Press as to select [GEOMETRY].
2)
Press
qw to select [CORNER CORRECTION].
3)
Press the button.
fThe
[GEOMETRY:CORNER CORRECTION] screen is displayed.
4)
Press
as to select the item to adjust, and press the button.
5)
Press
asqw to adjust.
[CORNER CORRECTION]
[UPPER LEFT]
[UPPER...")
Chapter 4 Settings — [POSITION] menu 94 - ENGLISH [CURVED] [VERTICAL BALANCE] [HORIZONTAL BALANCE] [MAINTAIN ASPECT RATIO] Select [ON] to correct while keeping the aspect ratio. Setting [CORNER CORRECTION] 1) Press as to select [GEOMETRY]. 2) Press qw to select [CORNER CORRECTION]. 3) Press the button. fThe [GEOMETRY:CORNER CORRECTION] screen is displayed. 4) Press as to select the item to adjust, and press the button. 5) Press asqw to adjust. [CORNER CORRECTION] [UPPER LEFT] [UPPER...
Page 95

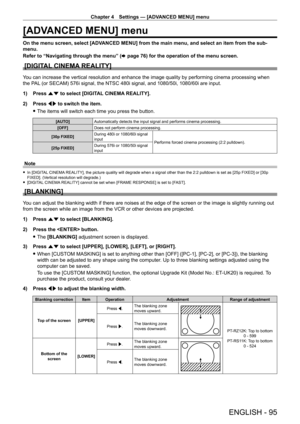

![Page 95
Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 95
[ADVANCED MENU] menu
On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub-
menu.
Refer to “Navigating through the menu” (x
page 76) for the operation of the menu screen.
[DIGITAL CINEMA REALITY]
You can increase the vertical resolution and enhance the image quality by performing cinema processing when
the PAL (or SECAM) 576i signal, the NTSC 480i signal, and 1080/50i, 1080/60i are input.
1)
Press
as...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-94.png "Page 95
Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 95
[ADVANCED MENU] menu
On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub-
menu.
Refer to “Navigating through the menu” (x
page 76) for the operation of the menu screen.
[DIGITAL CINEMA REALITY]
You can increase the vertical resolution and enhance the image quality by performing cinema processing when
the PAL (or SECAM) 576i signal, the NTSC 480i signal, and 1080/50i, 1080/60i are input.
1)
Press
as...")
Chapter 4 Settings — [ADVANCED MENU] menu ENGLISH - 95 [ADVANCED MENU] menu On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. [DIGITAL CINEMA REALITY] You can increase the vertical resolution and enhance the image quality by performing cinema processing when the PAL (or SECAM) 576i signal, the NTSC 480i signal, and 1080/50i, 1080/60i are input. 1) Press as...
Page 96

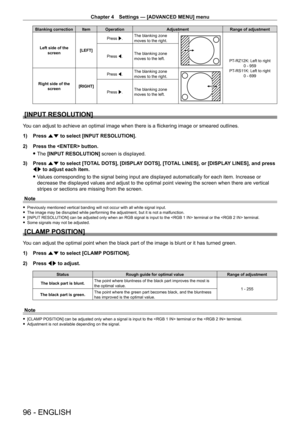

![Page 96
Chapter 4 Settings — [ADVANCED MENU] menu
96 - ENGLISH
Blanking correction Item OperationAdjustmentRange of adjustment
Left side of the screen [LEFT]Press w.
The blanking zone
moves to the right.
PT-
RZ12K: Left to right
0 - 959
PT
-
RS11K: Left to right 0 - 699
Press q.
The blanking zone
moves to the left.
Right side of the screen [RIGHT]Press q.
The blanking zone
moves to the right.
Press w.The blanking zone
moves to the left.
[INPUT RESOLUTION]
You can adjust to achieve an optimal image when...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-95.png "Page 96
Chapter 4 Settings — [ADVANCED MENU] menu
96 - ENGLISH
Blanking correction Item OperationAdjustmentRange of adjustment
Left side of the screen [LEFT]Press w.
The blanking zone
moves to the right.
PT-
RZ12K: Left to right
0 - 959
PT
-
RS11K: Left to right 0 - 699
Press q.
The blanking zone
moves to the left.
Right side of the screen [RIGHT]Press q.
The blanking zone
moves to the right.
Press w.The blanking zone
moves to the left.
[INPUT RESOLUTION]
You can adjust to achieve an optimal image when...")
Chapter 4 Settings — [ADVANCED MENU] menu 96 - ENGLISH Blanking correction Item OperationAdjustmentRange of adjustment Left side of the screen [LEFT]Press w. The blanking zone moves to the right. PT- RZ12K: Left to right 0 - 959 PT - RS11K: Left to right 0 - 699 Press q. The blanking zone moves to the left. Right side of the screen [RIGHT]Press q. The blanking zone moves to the right. Press w.The blanking zone moves to the left. [INPUT RESOLUTION] You can adjust to achieve an optimal image when...
Page 97

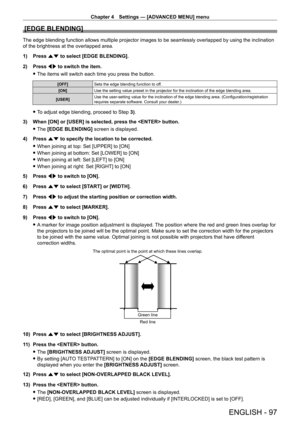

![Page 97
Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 97
[EDGE BLENDING]
The edge blending function allows multiple projector images to be seamle\
ssly overlapped by using the inclination
of the brightness at the overlapped area.
1)
Press
as to select [EDGE BLENDING].
2)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[OFF] Sets the edge blending function to off.
[ON] Use the setting value preset in the projector for the inclination of the\
edge blending area....](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-96.png "Page 97
Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 97
[EDGE BLENDING]
The edge blending function allows multiple projector images to be seamle\
ssly overlapped by using the inclination
of the brightness at the overlapped area.
1)
Press
as to select [EDGE BLENDING].
2)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[OFF] Sets the edge blending function to off.
[ON] Use the setting value preset in the projector for the inclination of the\
edge blending area....")
Chapter 4 Settings — [ADVANCED MENU] menu ENGLISH - 97 [EDGE BLENDING] The edge blending function allows multiple projector images to be seamle\ ssly overlapped by using the inclination of the brightness at the overlapped area. 1) Press as to select [EDGE BLENDING]. 2) Press qw to switch the item. fThe items will switch each time you press the button. [OFF] Sets the edge blending function to off. [ON] Use the setting value preset in the projector for the inclination of the\ edge blending area....

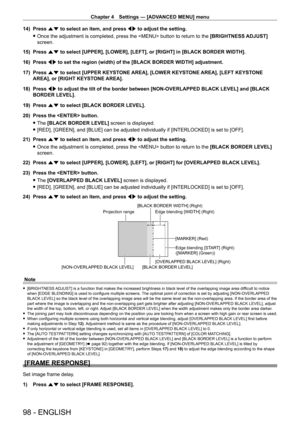

Page 98
![Page 98
Chapter 4 Settings — [ADVANCED MENU] menu
98 - ENGLISH
14) Press as to select an item, and press qw to adjust the setting.
fOnce the adjustment is completed, press the button to return to the [BRIGHTNESS ADJUST]
screen.
15)
Press
as to select [UPPER], [LOWER], [LEFT], or [RIGHT] in [BLACK BORDER WIDTH].
16)
Press
qw to set the region (width) of the [BLACK BORDER WIDTH] adjustment.
17)
Press
as to select [UPPER KEYSTONE AREA], [LOWER KEYSTONE AREA], [LEFT KEYSTONE
AREA], or [RIGHT...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-97.png "Page 98
Chapter 4 Settings — [ADVANCED MENU] menu
98 - ENGLISH
14) Press as to select an item, and press qw to adjust the setting.
fOnce the adjustment is completed, press the button to return to the [BRIGHTNESS ADJUST]
screen.
15)
Press
as to select [UPPER], [LOWER], [LEFT], or [RIGHT] in [BLACK BORDER WIDTH].
16)
Press
qw to set the region (width) of the [BLACK BORDER WIDTH] adjustment.
17)
Press
as to select [UPPER KEYSTONE AREA], [LOWER KEYSTONE AREA], [LEFT KEYSTONE
AREA], or [RIGHT...")
Chapter 4 Settings — [ADVANCED MENU] menu 98 - ENGLISH 14) Press as to select an item, and press qw to adjust the setting. fOnce the adjustment is completed, press the button to return to the [BRIGHTNESS ADJUST] screen. 15) Press as to select [UPPER], [LOWER], [LEFT], or [RIGHT] in [BLACK BORDER WIDTH]. 16) Press qw to set the region (width) of the [BLACK BORDER WIDTH] adjustment. 17) Press as to select [UPPER KEYSTONE AREA], [LOWER KEYSTONE AREA], [LEFT KEYSTONE AREA], or [RIGHT...
Page 99

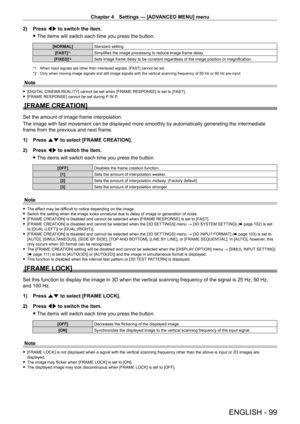

![Page 99
Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 99
2) Press qw to switch the item.
fThe items will switch each time you press the button.
[NORMAL] Standard setting.
[FAST]
*1Simplifies the image processing to reduce image frame delay.
[FIXED]
*2Sets image frame delay to be constant regardless of the image position or magnification.
*1 When input signals are other than interlaced signals, [F AST] cannot be set.
*2
Only when moving image signals and still image signals with the vertical scanning...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-98.png "Page 99
Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 99
2) Press qw to switch the item.
fThe items will switch each time you press the button.
[NORMAL] Standard setting.
[FAST]
*1Simplifies the image processing to reduce image frame delay.
[FIXED]
*2Sets image frame delay to be constant regardless of the image position or magnification.
*1 When input signals are other than interlaced signals, [F AST] cannot be set.
*2
Only when moving image signals and still image signals with the vertical scanning...")
Chapter 4 Settings — [ADVANCED MENU] menu ENGLISH - 99 2) Press qw to switch the item. fThe items will switch each time you press the button. [NORMAL] Standard setting. [FAST] *1Simplifies the image processing to reduce image frame delay. [FIXED] *2Sets image frame delay to be constant regardless of the image position or magnification. *1 When input signals are other than interlaced signals, [F AST] cannot be set. *2 Only when moving image signals and still image signals with the vertical scanning...
Page 100

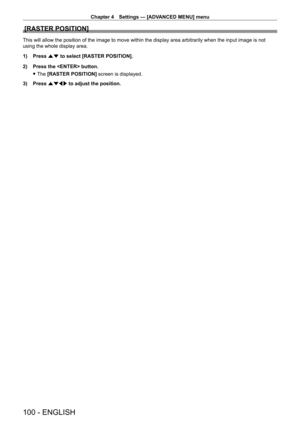

![Page 100
Chapter 4 Settings — [ADVANCED MENU] menu
100 - ENGLISH
[RASTER POSITION]
This will allow the position of the image to move within the display are\
a arbitrarily when the input image is not
using the whole display area.
1)
Press
as to select [RASTER POSITION].
2)
Press the button.
fThe
[RASTER POSITION] screen is displayed.
3)
Press
asqw to adjust the position.](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-99.png "Page 100
Chapter 4 Settings — [ADVANCED MENU] menu
100 - ENGLISH
[RASTER POSITION]
This will allow the position of the image to move within the display are\
a arbitrarily when the input image is not
using the whole display area.
1)
Press
as to select [RASTER POSITION].
2)
Press the button.
fThe
[RASTER POSITION] screen is displayed.
3)
Press
asqw to adjust the position.")
Chapter 4 Settings — [ADVANCED MENU] menu 100 - ENGLISH [RASTER POSITION] This will allow the position of the image to move within the display are\ a arbitrarily when the input image is not using the whole display area. 1) Press as to select [RASTER POSITION]. 2) Press the button. fThe [RASTER POSITION] screen is displayed. 3) Press asqw to adjust the position.
