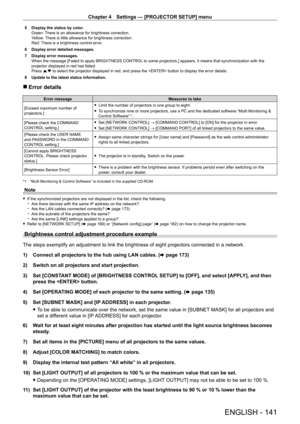

Panasonic Projector PT-RS30K User Manual

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 141
5 Display the status by color.
Green: There is an allowance for brightness correction.
Yellow: There is little allowance for brightness correction.
Red: There is a brightness control error.
6

Display error detailed messages.
7


Display error messages.
When the message [Failed to apply BRIGHTNESS CONTROL

 to some projectors.] appears, it means that synchronization with the
projector displayed in red has failed.
Press as to select the...

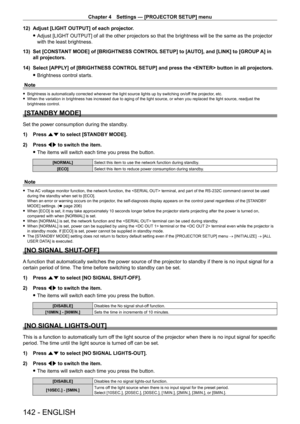

Chapter 4 Settings — [PROJECTOR SETUP] menu
142 - ENGLISH
12) Adjust [LIGHT OUTPUT] of each projector.
 fAdjust [LIGHT

 OUTPUT] of all the other projectors so that the brightness will be the same as the projector
with the least brightness.
13)

Set [CONST
 ANT MODE] of [BRIGHTNESS CONTROL SETUP] to [AUTO], and [LINK] to [GROUP A] in
all projectors.
14)

Select [APPL
 Y] of [BRIGHTNESS CONTROL SETUP] and press the  button in all projectors.
 fBrightness control starts.
Note
 f Brightness is...

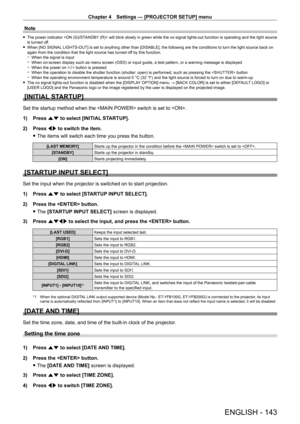

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 143
Note
 fThe power indicator  will blink slowly in green while the no signal lights-out function is operating and the light source
is turned off.
 f When [NO SIGNAL

 LIGHTS-OUT] is set to anything other than [DISABLE], the following are the conditions to turn the light source back on
again from the condition that the light source has turned off by this function.
 g When the signal is input gWhen on-screen display such as menu screen (OSD) or...

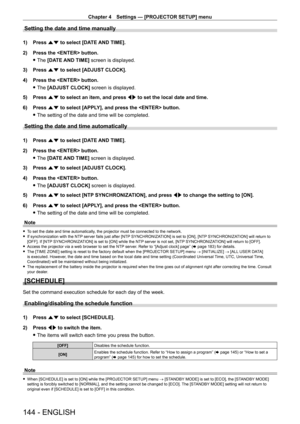

Chapter 4 Settings — [PROJECTOR SETUP] menu
144 - ENGLISH
Setting the date and time manually
1) Press as to select [DATE AND TIME].
2)
Press the  button.
 fThe

[DATE AND TIME] screen is displayed.
3)

Press
 as to select [ADJUST CLOCK].
4)

Press the  button.
 fThe

[ADJUST CLOCK] screen is displayed.
5)

Press
 as to select an item, and press qw to set the local date and time.
6)

Press
 as to select [APPLY], and press the  button.
 fThe setting of the date and time will be completed....

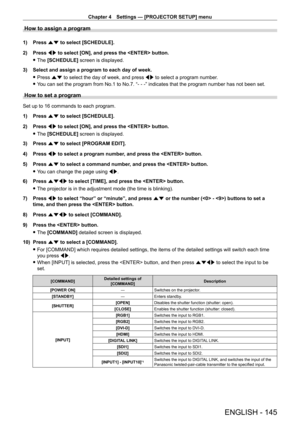

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 145
How to assign a program
1) Press as to select [SCHEDULE].
2)
Press
 qw to select [ON], and press the  button.
 fThe

[SCHEDULE] screen is displayed.
3)

Select and assign a program to each day of week.
 fPress

as to select the day of week, and press qw to select a program number.
 fY

ou can set the program from No.1 to No.7. “ -   -   - ” indicates that the program number has not been set.
How to set a program
Set up to 16 commands to each...

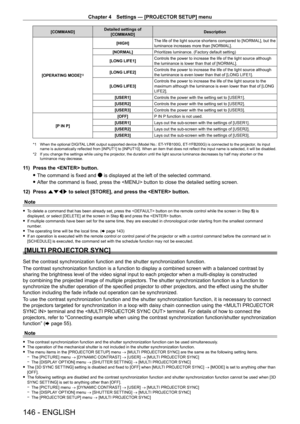

Chapter 4 Settings — [PROJECTOR SETUP] menu
146 - ENGLISH
[COMMAND]Detailed settings of
[COMMAND] Description
[OPERATING MODE]
*2
[HIGH] The life of the light source shortens compared to [NORMAL], but the
luminance increases more than [NORMAL].
[NORMAL] Prioritizes luminance. (Factory default setting)
[LONG LIFE1] Controls the power to increase the life of the light source although
the luminance is lower than that of [NORMAL].
[LONG LIFE2] Controls the power to increase the life of the light source...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 147
Setting the contrast synchronization function
1) Press as to select [MULTI PROJECTOR SYNC].
2)
Press the  button.
 fThe

[MULTI PROJECTOR SYNC] screen is displayed.
3)

Press
 as to select [MODE].
4)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Select this item when the contrast synchronization function and the shut\
ter synchronization function
are not used.
[MASTER] Select this item when...

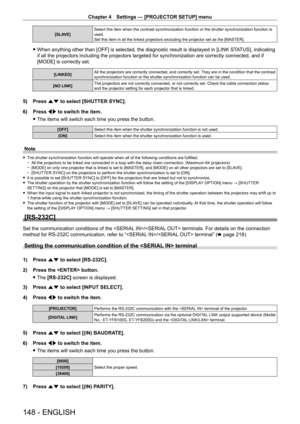

Chapter 4 Settings — [PROJECTOR SETUP] menu
148 - ENGLISH
[SLAVE]Select this item when the contrast synchronization function or the shutt\
er synchronization function is
used.
Set this item in all the linked projectors excluding the projector set as the [MASTER].
 f
When anything other than [OFF] is selected, the diagnostic result is displayed in [LINK ST A TUS], indicating
if all the projectors including the projectors targeted for synchronizat\
ion are correctly connected, and if
[MODE] is correctly...

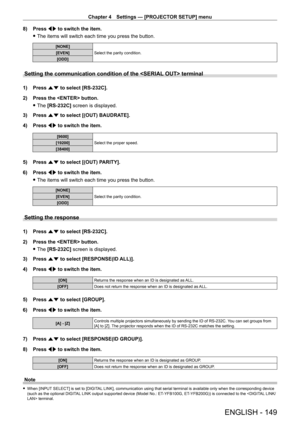

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 149
8) Press qw to switch the item.
 fThe items will switch each time you press the button.
[NONE]
Select the parity condition.
[EVEN]
[ODD]
Setting the communication condition of the  terminal
1) Press  as to select [RS-232C].
2)
Press the  button.
 fThe

[RS-232C] screen is displayed.
3)

Press
 as to select [(OUT) BAUDRATE].
4)

Press
 qw to switch the item.
[9600] Select the proper speed.
[19200]
[38400]
5) Press  as to select [(OUT)...

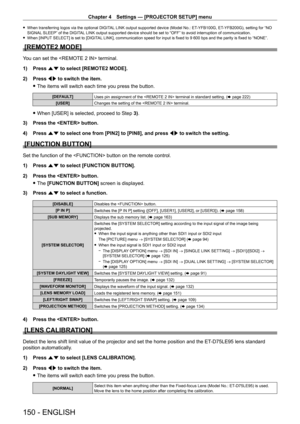

Chapter 4 Settings — [PROJECTOR SETUP] menu
150 - ENGLISH
 fWhen transferring logos via the optional DIGIT AL LINK output supported device (Model No.: ET- YFB100G, ET- YFB200G), setting for “NO
SIGNAL SLEEP” of the DIGITAL LINK output supported device should be set to “OFF” to avoid interruption of communication.
 f When [INPUT

 SELECT] is set to [DIGITAL LINK], communication speed for input is fixed to 9   600   bps and the parity is fixed to “NONE”.
[REMOTE2 MODE]
You can set the  terminal.
1)
Press...
