Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 151

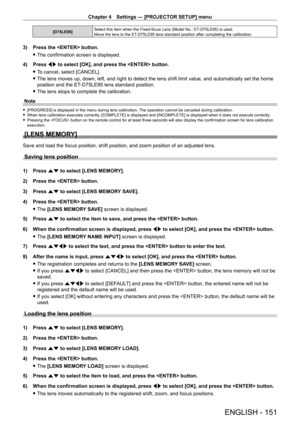

[D75LE95]Select this item when the Fixed-focus Lens (Model No.: ET- D75LE95) is used.
Move the lens to the ET- D75LE95 lens standard position after completing the calibration.
3) Press the  button.
 fThe confirmation screen is displayed.
4)


Press
 qw to select [OK], and press the  button.
 fT

o cancel, select [CANCEL].
 fThe lens moves up, down, left, and right to detect the lens shift limit \
value, and automatically set the home
position...

Chapter 4 Settings — [PROJECTOR SETUP] menu
152 - ENGLISH

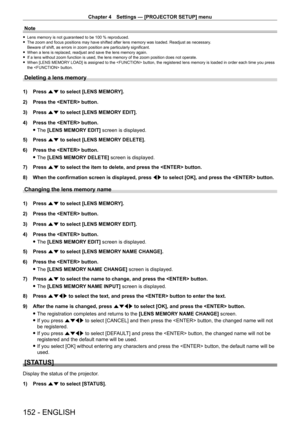

Note
 fLens memory is not guaranteed to be 100   % reproduced. fThe zoom and focus positions may have shifted after lens memory was load\
ed. Readjust as necessary
.
Beware of shift, as errors in zoom position are particularly significant.
 f When a lens is replaced, readjust and save the lens memory again. fIf a lens without zoom function is used, the lens memory of the zoom pos\
ition does not operate. fWhen [LENS MEMOR

Y LOAD] is assigned to...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 153
2) Press the  button.
 fThe

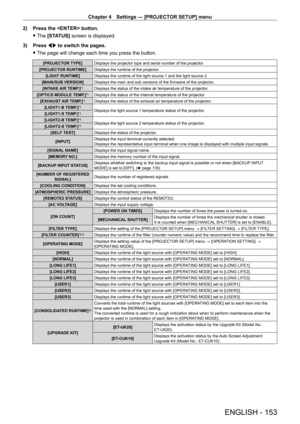

[STATUS] screen is displayed.
3)

Press
 qw to switch the pages.
 fThe page will change each time you press the button.

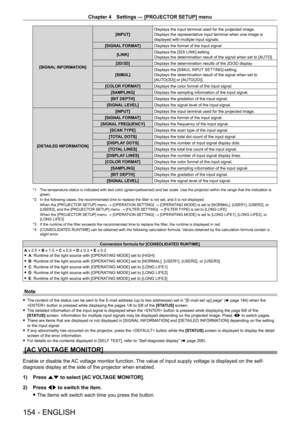

[PROJECTOR TYPE] Displays the projector type and serial number of the projector.
[PROJECTOR RUNTIME] Displays the runtime of the projector.
[LIGHT RUNTIME] Displays the runtime of the light source 1 and the light source 2.
[MAIN/SUB VERSION] Displays the main and sub versions of the firmware of the...

Chapter 4 Settings — [PROJECTOR SETUP] menu
154 - ENGLISH
[SIGNAL INFORMATION][INPUT]
Displays the input terminal used for the projected image.
Displays the representative input terminal when one image is
displayed with multiple input signals.
[SIGNAL FORMAT] Displays the format of the input signal.
[LINK] Displays the [SDI LINK] setting.
Displays the determination result of the signal when set to [AUT
O].
[2D/3D] Displays the determination results of the 2D/3D display
[SIMUL] Displays the [SIMUL INPUT...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 155

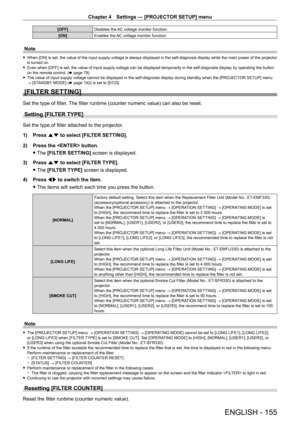

[OFF]Disables the AC voltage monitor function.
[ON] Enables the AC voltage monitor function.
Note
 fWhen [ON] is set, the value of the input supply voltage is always displayed in the self-diagnosis display while the main power of the projector
is turned on.
 f Even when [OFF] is set, the value of input supply voltage can be displayed temporarily in the self-diagnosis display by operating the button
on the remote control. (

x   page   79)
 fThe...

Chapter 4 Settings — [PROJECTOR SETUP] menu
156 - ENGLISH

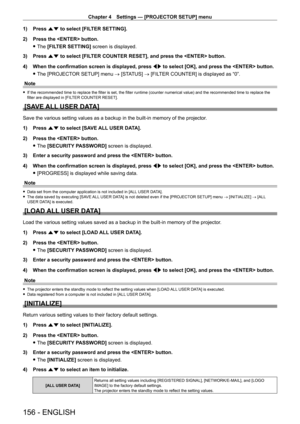

1) Press as to select [FILTER SETTING].
2)
Press the  button.
 fThe

[FILTER SETTING] screen is displayed.
3)

Press
 as to select [FILTER COUNTER RESET], and press the  button.
4)

When the confirmation screen is displayed, press  qw

 to select [OK], and press the  button.
 fThe [PROJECT

OR SETUP] menu → [STATUS] → [FILTER COUNTER] is displayed as “0”.
Note
 f If the recommended time to replace the filter is set, the filter runtime...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 157

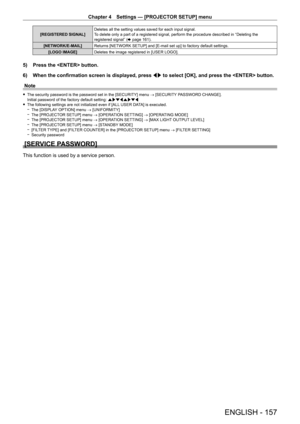

[REGISTERED SIGNAL]Deletes all the setting values saved for each input signal.
To delete only a part of a registered signal, perform the procedure descr\
ibed in “Deleting the
registered signal” (
x
  page   161).
[NETWORK/E-MAIL] Returns [NETWORK SETUP] and [E-mail set up] to factory default settings.
[LOGO IMAGE] Deletes the image registered in [USER LOGO].
5) Press the  button.
6)
When the confirmation screen is displayed, press  qw

 to...

Chapter 4 Settings — [P IN P] menu
158 - ENGLISH

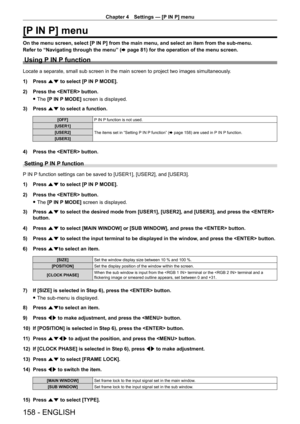

[P IN P] menu
On the menu screen, select [P IN P] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
  page   81) for the operation of the menu screen.
Using P IN P function
Locate a separate, small sub screen in the main screen to project two images simultaneously .
1)
Press
 as to select [P IN P MODE].
2)

Press the  button.
 fThe

[P IN P MODE] screen is displayed.
3)

Press
 as to select a...

Chapter 4 Settings — [P IN P] menu
ENGLISH - 159

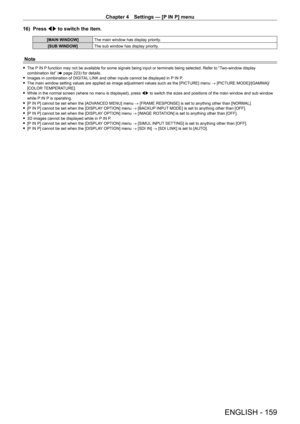

16) Press qw to switch the item.
[MAIN WINDOW] The main window has display priority.
[SUB WINDOW] The sub window has display priority.
Note
 fThe P IN P function may not be available for some signals being input or terminals being selected. Refer to “Two-window display
combination list” ( x
  page   223) for details.
 fImages in combination of DIGIT

AL LINK and other inputs cannot be displayed in P IN P.
 fThe main window setting values are applied as...

Chapter 4 Settings — [TEST PATTERN] menu
160 - ENGLISH

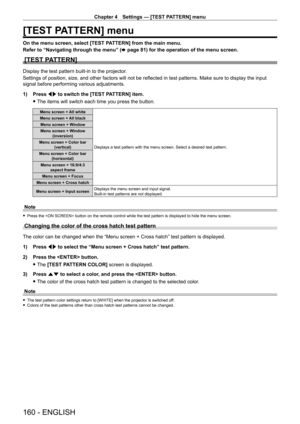

[TEST PATTERN] menu
On the menu screen, select [TEST PATTERN] from the main menu.
Refer to “Navigating through the menu” (x
  page   81) for the operation of the menu screen.
[TEST PATTERN]
Display the test pattern built-in to the projector.
Settings of position, size, and other factors will not be reflected in test patterns. Make sure to display the input
signal before performing various adjustments.
1)

Press
 qw to switch the [TEST PATTERN]...
