Page 41

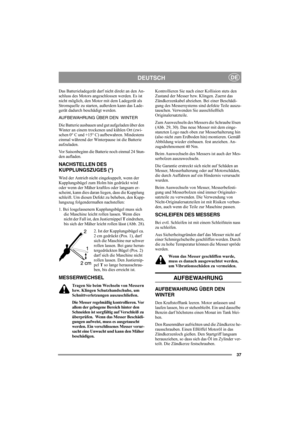

37 DEUTSCHDE Das Batterieladegerät darf nicht direkt an den An- schluss des Motors angeschlossen werden. Es ist nicht möglich, den Motor mit dem Ladegerät als Stromquelle zu starten, außerdem kann das Lade- gerät dadurch beschädigt werden. AUFBEWAHRUNG ÜBER DEN WINTER Die Batterie ausbauen und gut aufgeladen über den Winter an einem trockenen und kühlen Ort (zwi- schen 0° C und +15° C) aufbewahren. Mindestens einmal während der Winterpause ist die Batterie aufzuladen. Vor Saisonbeginn die Batterie...

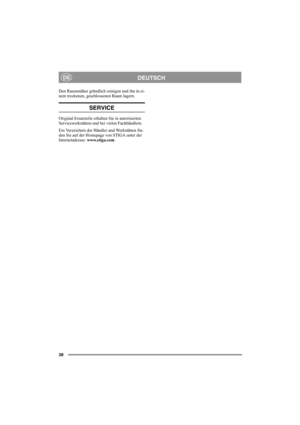

Page 42
38 DEUTSCHDE Den Rasenmäher gründlich reinigen und ihn in ei- nem trockenen, geschlossenen Raum lagern. SERVICE Original-Ersatzteile erhalten Sie in autorisierten Servicewerkstätten und bei vielen Fachhändlern. Ein Verzeichnis der Händler und Werkstätten fin- den Sie auf der Homepage von STIGA unter der Internetadresse: www.stiga.com.
Page 43

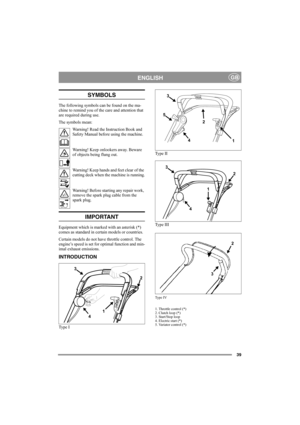

39 ENGLISHGB SYMBOLS The following symbols can be found on the ma- chine to remind you of the care and attention that are required during use. The symbols mean: Warning! Read the Instruction Book and Safety Manual before using the machine. Warning! Keep onlookers away. Beware of objects being flung out. Warning! Keep hands and feet clear of the cutting deck when the machine is running. Warning! Before starting any repair work, remove the spark plug cable from the spark plug. IMPORTANT Equipment...
Page 44

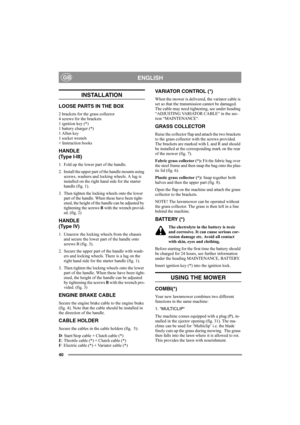

40 ENGLISHGB INSTALLATION LOOSE PARTS IN THE BOX 2 brackets for the grass collector 4 screws for the brackets 1 ignition key (*) 1 battery charger (*) 1 Allen key 1 socket wrench + Instruction books HANDLE (Type I-III) 1. Fold up the lower part of the handle. 2. Install the upper part of the handle mounts using screws, washers and locking wheels. A lug is installed on the right hand side for the starter handle (fig. 1). 3. Then tighten the locking wheels onto the lower part of the handle. When...
Page 45

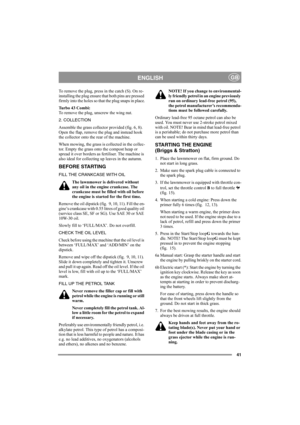

41 ENGLISHGB To remove the plug, press in the catch (S). On re- installing the plug ensure that both pins are pressed firmly into the holes so that the plug snaps in place. Turbo 43 Combi: To remove the plug, unscrew the wing nut. 2. COLLECTION Assemble the grass collector provided (fig. 6, 8). Open the flap, remove the plug and instead hook the collector onto the rear of the machine. When mowing, the grass is collected in the collec- tor. Empty the grass onto the compost heap or spread it over...

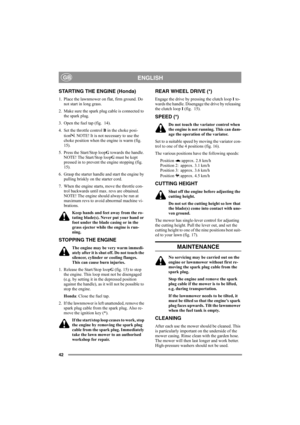

Page 46
42 ENGLISHGB STARTING THE ENGINE (Honda) 1. Place the lawnmower on flat, firm ground. Do not start in long grass. 2. Make sure the spark plug cable is connected to the spark plug. 3. Open the fuel tap (fig. 14). 4. Set the throttle control B in the choke posi- tion . NOTE! It is not necessary to use the choke position when the engine is warm (fig. 15). 5. Press the Start/Stop loopG towards the handle. NOTE! The Start/Stop loopG must be kept pressed in to prevent the engine stopping (fig. 15)....
Page 47

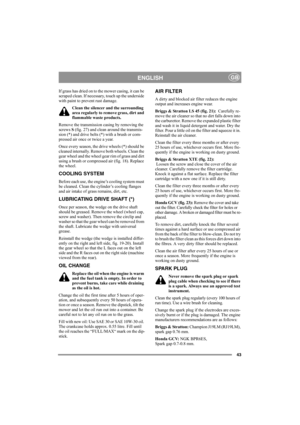

43 ENGLISHGB If grass has dried on to the mower casing, it can be scraped clean. If necessary, touch up the underside with paint to prevent rust damage. Clean the silencer and the surrounding area regularly to remove grass, dirt and flammable waste products. Remove the transmission casing by removing the screws S (fig. 27) and clean around the transmis- sion (*) and drive belts (*) with a brush or com- pressed air once or twice a year. Once every season, the drive wheels (*) should be cleaned...
Page 48

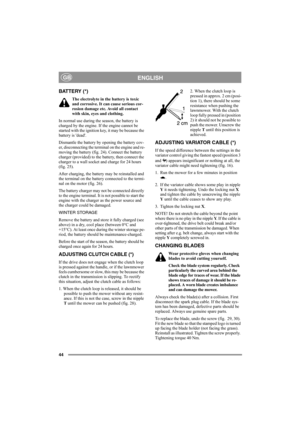

44 ENGLISHGB BATTERY (*) The electrolyte in the battery is toxic and corrosive. It can cause serious cor- rosion damage etc. Avoid all contact with skin, eyes and clothing. In normal use during the season, the battery is charged by the engine. If the engine cannot be started with the ignition key, it may be because the battery is dead. Dismantle the battery by opening the battery cov- er, disconnecting the terminal on the engine and re- moving the battery (fig. 24). Connect the battery charger...
Page 49

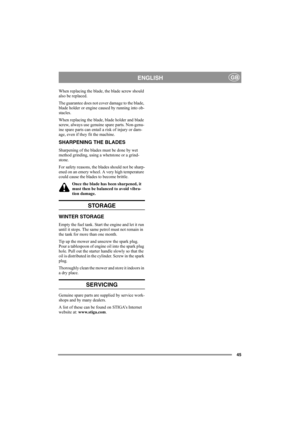

45 ENGLISHGB When replacing the blade, the blade screw should also be replaced. The guarantee does not cover damage to the blade, blade holder or engine caused by running into ob- stacles. When replacing the blade, blade holder and blade screw, always use genuine spare parts. Non-genu- ine spare parts can entail a risk of injury or dam- age, even if they fit the machine. SHARPENING THE BLADES Sharpening of the blades must be done by wet method grinding, using a whetstone or a grind- stone. For safety...
Page 50

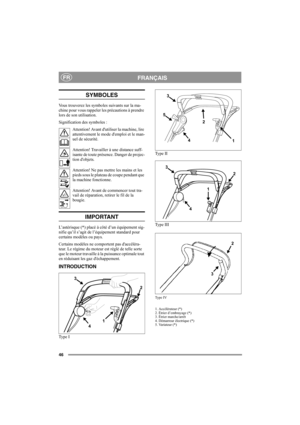

46 FRANÇAISFR SYMBOLES Vous trouverez les symboles suivants sur la ma- chine pour vous rappeler les précautions à prendre lors de son utilisation. Signification des symboles : Attention! Avant dutiliser la machine, lire attentivement le mode demploi et le man- uel de sécurité. Attention! Travailler à une distance suff- isante de toute présence. Danger de projec- tion dobjets. Attention! Ne pas mettre les mains et les pieds sous le plateau de coupe pendant que la machine fonctionne. Attention! Avant...
