Networking with NEAX2400 IPX and NEAX2000 IVS2
Service Conditions (cont’d)
FCCS Network Group
1. Since multiple FCCS networks are connected in the network, an FCCS network group number is required
to distinguish each FCCS network from others. An FCCS network group is called an FCCS group, and a
maximum of four FCCS groups can be connected in the network.
2. A center FCCS group should be specified from among multiple FCCS groups in the...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 799
Asynchronous Data Switching - CCIS A-44
A-44  Asynchronous Data Switching - CCIS
General Description
The NEAX2400 IPX supports up to 19.2 Kbps asynchronous switched modem-less data communication, from node
to node, in a CCIS network. An asynchronous Data Adapter is required for the Dterm, and an asynchronous Data
Module is used for non-voice applications.
Operating Procedure
To initiate a data call from a Dterm equipped with a Data...

NEAX2400 IPX Feature Programming ManualPage 800NDA-24297, Issue 1
A-44 Asynchronous Data Switching - CCIS
Operating Procedure (cont’d)
When the opposite end DTE disconnects when using keyboard dialing
1. When the opposite end DTE releases, the Data Adapter buzzer will sound three times.
2. Enter release command RLS and press the RETURN key. The monitor will display RLS and RELEASED.
3. The data connection is released.
Service Conditions
1. Data terminals up to 19.2 Kbps can be connected.
Note:Additional...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 801
Asynchronous Data Switching - CCIS A-44
Programming (cont’d)
16: Data Terminal Via Data Module
18: Virtual Circuit
19: TMM
20: PSM
23: ISDN Terminal
27: Eight Conference Equipment
RSC: Route Restriction Class (0-15)
For assignment of RSC, ARSC command
SFC: Service Feature Class (0-15)
For assignment of SFC, ASFC command
STEP 2:AKYD- Despite the fact that a station number is assigned in ASDT for the data number, only the voice
station...

NEAX2400 IPX Feature Programming ManualPage 802NDA-24297, Issue 1
A-45 Attendant Camp-On with Tone Indication - CCIS
A-45  Attendant Camp-On with Tone Indication - CCIS
General Description
This service feature allows Inter-Office Attendant Camp-On for when the Attendant and the called party belong to
a different PBX in the CCIS network.
Operating Procedure
1. Stations (a) and (b) are talking through a CCIS line.
2. Subscriber (c) places a call to Node A through a CO line. An Attendant in Node A answers...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 803
Attendant Camp-On with Tone Indication - CCIS A-45
Operating Procedure (cont’d)
3. The Attendant dials the number for Station (b); Subscriber (c) receives Hold Tone; the Attendant receives
busy tone.
4. The Attendant presses the RELEASE key (Attendant Camp-On service setting)
Note 1. While talking with
Station (a), Station (b) receives Camp-On Tone, and the Attendant can now handle other calls.

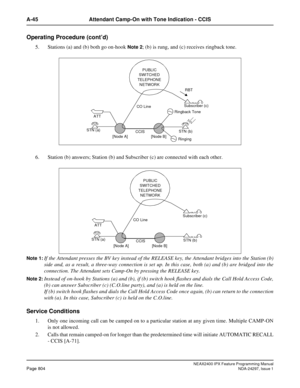

PUBLIC
SWITCHED
TELEPHONE
NETWORK
CO...

NEAX2400 IPX Feature Programming ManualPage 804NDA-24297, Issue 1
A-45 Attendant Camp-On with Tone Indication - CCIS
Operating Procedure (cont’d)
5. Stations (a) and (b) both go on-hookNote 2; (b) is rung, and (c) receives ringback tone.
6. Station (b) answers; Station (b) and Subscriber (c) are connected with each other.
Note 1:If the Attendant presses the BV key instead of the RELEASE key, the Attendant bridges into the Station (b)
side and, as a result, a three-way connection is set up. In this case,...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 805
Attendant Camp-On with Tone Indication - CCIS A-45
Service Conditions (cont’d)
3. CAMP-ON may be denied if the busy station is:
a.) Dialing or in the LINE LOCKOUT [L-3] mode.
b.) Listening to a tone.
c.) Being rung.
d.) The TIE Line is idle at the time the operator has pressed RELEASE key.
e.) Already camped-on by a previous call.
f.) Protected from CAMP-ON by CLASS OF SERVICE-INDIVIDUAL [C-15].
g.) Protected by DATA LINE SECURITY...

NEAX2400 IPX Feature Programming ManualPage 806NDA-24297, Issue 1
A-46 Attendant-Controlled Conference - CCIS
A-46  Attendant-Controlled Conference - CCIS
General Description
This feature allows the Attendant to establish a conference among as many as eight parties. The conference group
can consist of any combination of stations and/or trunks in a CCIS network.
Operating Procedure
To activate ATTENDANT-CONTROLLED CONFERENCE - CCIS
1. A station calls the Attendant to request a conference.
2. The Attendant...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 807
Attendant-Controlled Conference - CCIS A-46
Interactions
1. The Attendant Console must first be provided.
2. NEC provides a PA-16LCBE circuit card that provides momentary-open for all 16 circuits. This is
required to provide a release signal when line circuits are connected to external equipment such as
conference and page units. This keeps reorder tone from being sent to the Conference Unit.
3. The last port of a PA-16LCBJ/PA-16LCBL...
