General Description
This service feature provides automatic reporting of fault information of Satellite Nodes to the Centralized
Management Center with an external indication of the detected fault.
This feature may be provided through multiple FCCS groups (networks where multiple NEAX2400 IPXs are
connected via FCCS link) and the NEAX2000...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 869
Centralized System Management Report - CCIS C-57
Service Conditions (cont’d)
When this service is provided in the network through FCCS groups and NEAX2000 IVS2
1. For general information of this network, refer to“Network Through FCCS Groups and NEAX2000 IVS2”,
in the NEAX2400 IPX No. 7 CCIS System Manual.
2. The Centralized System Message Report feature for this network may be controlled only by the
Centralized MAT.
Note:See Centralized...

NEAX2400 IPX Feature Programming ManualPage 870NDA-24297, Issue 1
C-57 Centralized System Management Report - CCIS
Programming (cont’d)
System 1, Index 86, Bit 4. Assign Fault Data Automatic Printout Function (Automatic output to the
Printer) (1).
System 1, Index 86, Bit 7: Assign Fault Message-0/1: Simplified Registration/Detailed Registration.
System 1, Index 91, Bits 2 & 3: Assign System Message Output Grade.
0: All
2: Higher than Grade 2 (MN, MJ)
3: Higher than Grade 3 (MJ)
System 1, Index 116-123:...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 871
Centralized System Management Report - CCIS C-57
Programming (cont’d)

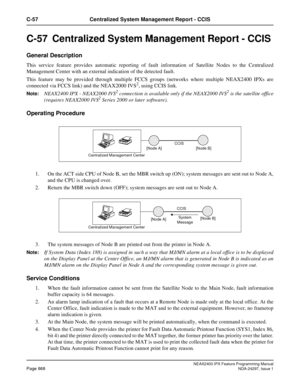

The following figure represents an example of data programming. For details of Centralized
Maintenance for FCCS service, see the NEAX2400 IPX Fusion Network System Manual.
Centralized MATMAT
;: ;;: :;: ;:; ::; ::; :;: ;;: :;: ;:; ::; ::; :;:;; ::; : ;: ;:: ;:: ;:;: ;;: :;: ;:; ::; ::; :IPX 1 IPX
IPX IPX;:;; ::; : ; :;: :;:: ;:;:;; ::; : ;: ;:: ;:: ;:;: ;;: :;: ;:; ::;...

NEAX2400 IPX Feature Programming ManualPage 872NDA-24297, Issue 1
C-58 Consultation Hold - All Calls - CCIS
C-58  Consultation Hold - All Calls - CCIS
General Description
This feature permits a user within the CCIS network to hold any incoming or outgoing public network, intra-office,
or CCIS call while originating a call to another station within the CCIS network.
Operating Procedure
To hold the original call and place a second call from a single-line telephone
1. Switch hook flash; receive special dial...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 873
Consultation Hold - All Calls - CCIS C-58
Interactions
1. This feature is denied whenever the destination telephone set is engaged in any state other than simple two-
party connection.
2. CONSULTATION HOLD-ALL CALLS - CCIS must always be made available when features require
hooking services.
3. Indexes 156 and 157 also are used for SMDR, establishing an arbitrary connection timing when no answer
supervision is used.
4. If a party is...

NEAX2400 IPX Feature Programming ManualPage 874NDA-24297, Issue 1
C-58 Consultation Hold - All Calls - CCIS
Programming

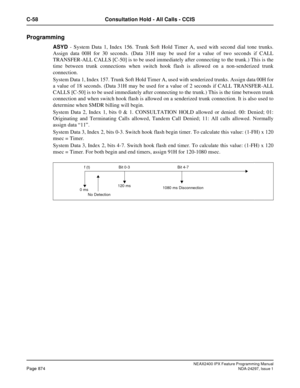

ASYD- System Data 1, Index 156. Trunk Soft Hold Timer A, used with second dial tone trunks.
Assign data 00H for 30 seconds. (Data 31H may be used for a value of two seconds if CALL
TRANSFER-ALL CALLS [C-50] is to be used immediately after connecting to the trunk.) This is the
time between trunk connections when switch hook flash is allowed on a non-senderized trunk
connection.
System...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 875
Call Forwarding Assignment - Attendant - CCIS C-94
C-94  Call Forwarding Assignment - Attendant - CCIS
General Description
This feature allows the attendant of an Attendant Console to set/cancel the following Call Forwarding services to a
station within the CCIS network.
CALL FORWARDING-ALL CALLS [C-5]
CALL FORWARDING-ALL CALLS - CCIS [C-45]
CALL FORWARDING-BUSY LINE [C-2]
CALL FORWARDING-BUSY LINE - CCIS [C-46]
CALL FORWARDING-DON’T...

NEAX2400 IPX Feature Programming ManualPage 876NDA-24297, Issue 1
C-94 Call Forwarding Assignment - Attendant - CCIS
Service Conditions (cont’d)
a.) Pattern 1 (ASYD, SYS2, Index 15, b4= 0)
XX
-XX- XXXXX- XXXXX
This pattern is used when a unified numbering plan is in use within the CCIS network.
b.) Pattern 2 (ASYD, SYS2, Index 15, b4 = 1)
XX
-XX- XXXXX- XXXXX-#
This pattern is used when a unified numbering plan is not in use within the CCIS network.
2. Since the numbering plan at the transfer destination...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 877
CCIS Networking via IP C-163
C-163  CCIS Networking via IP
General Description

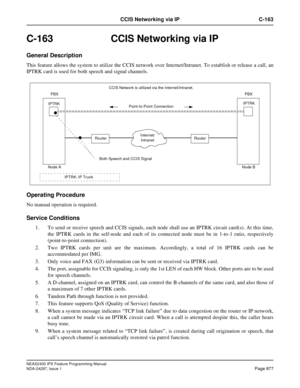

This feature allows the system to utilize the CCIS network over Internet/Intranet. To establish or release a call, an
IPTRK card is used for both speech and signal channels.
Operating Procedure
No manual operation is required.
Service Conditions
1. To send or receive speech and CCIS signals, each node shall use an IPTRK circuit card(s). At this time,
the IPTRK...
