ASCL_T : Assignment of Station Class Data – Telephone Number
ASCL_T : Assignment of Station Class Data – Telephone Number
1. General
This command is used to change the Telephone Equipment Class (TEC), Route Restriction Class (RSC), and
Service Feature Restriction Class (SFC), without changing the station number. The station data of ASCL com-
mand can be assigned by using Telephone Number.
2. Precautions
1. Only the Telephone Numbers assigned by the ALGSN command can...

CHAPTER 4 NDA-24298
Page 418
Issue 1
ASCL_T : Assignment of Station Class Data – Telephone Number

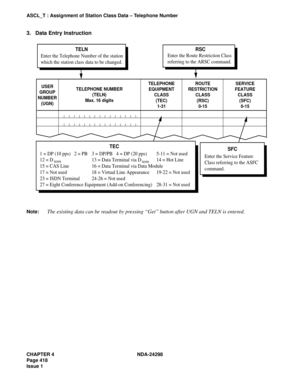

3. Data Entry Instruction
Note: The existing data can be readout by pressing “Get” button after UGN and TELN is entered.
USER
GROUP
NUMBER
(UGN)TELEPHONE NUMBER
(TELN)
Max. 16 digitsTELEPHONE
EQUIPMENT
CLASS
(TEC)
1-31ROUTE
RESTRICTION
CLASS
(RSC)
0-15SERVICE
FEATURE
CLASS
(SFC)
0-15
RSC
Enter the Route Restriction Class
referring to the ARSC command.TELN
Enter the Telephone Number of the station
which...

NDA-24298 CHAPTER 4
Page 419
Issue 1
ASCL_T : Assignment of Station Class Data – Telephone Number
4.  Data Sheet
USER
GROUP
NUMBER
(UGN)TELEPHONE NUMBER
 (TELN)
Max. 16 digitsTELEPHONE
EQUIPMENT
CLASS
(TEC)
1-31ROUTE
RESTRICTION
CLASS
(RSC)
0-15SERVICE
FEATURE
CLASS
(SFC)
0-15

CHAPTER 4 NDA-24298
Page 420
Issue 1
APHN : Assignment of Phantom Station Number Data
APHN: Assignment of Phantom Station Number Data
1. General
This command assigns a phantom number for a station.
2. Precautions
1. Numbers that are being used as station or LDN numbers cannot be used as phantom numbers.
2. When an incoming call is terminated to a phantom number, either no station hunting or station hunting
depending on the data in the PH parameter is performed if the called station is a member station...

NDA-24298 CHAPTER 4
Page 421
Issue 1
APHN : Assignment of Phantom Station Number Data

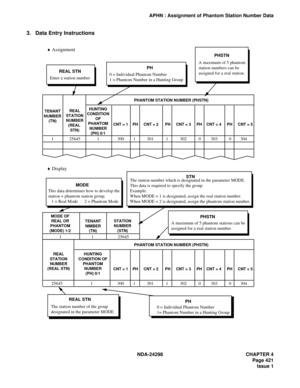

3. Data Entry Instructions
REAL
STATION
NUMBER
(REAL
STN)HUNTING
CONDITION
OF
PHANTOM
NUMBER
(PH) 0/1 TENANT
NUMBER
(TN)PHANTOM STATION NUMBER (PHSTN)
REAL STN
Enter a station number
PHSTN
A maximum of 5 phantom
station numbers can be
assigned for a real station.
PH
0 = Individual Phantom Number
1 = Phantom Number in a Hunting Group
REAL STN
The station number of the group
designated in the parameter MODE0 =...

CHAPTER 4 NDA-24298
Page 422
Issue 1
APHN : Assignment of Phantom Station Number Data
4. Data Sheet
TENANT
NUMBER
(TN)REAL
STATION
NUMBER
(REAL STN)PHANTOM STATION NUMBER
(PHSTN)
HUNTING
CONDITION OF
PHANTOM
NUMBER
(PH)
0/1CNT=1 PH CTN=2 PH CNT=3 PH CTN=4 PH CTN=5

NDA-24298 CHAPTER 4
Page 423
Issue 1
APHNL : Assignment of Phantom Station Number for LDM
APHNL: Assignment of Phantom Station Number for LDM

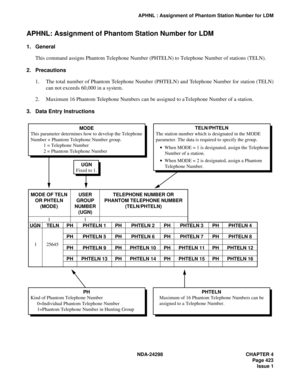

1. General
This command assigns Phantom Telephone Number (PHTELN) to Telephone Number of stations (TELN).
2. Precautions
1. The total number of Phantom Telephone Number (PHTELN) and Telephone Number for station (TELN)
can not exceeds 60,000 in a system.
2. Maximum 16 Phantom Telephone Numbers can be assigned to a Telephone Number of a station.
3. Data Entry...

CHAPTER 4 NDA-24298
Page 424
Issue 1
APHNL : Assignment of Phantom Station Number for LDM
4. Data Sheet
MODE OF TELN
OR PHTELN
(MODE)
UGN TELN PH PHTELN 1 PH PHTELN 2 PH PHTELN 3 PH PHTELN 4
PH PHTELN 5 PH PHTELN 6 PH PHTELN 7 PH PHTELN 8
PH PHTELN 9 PH PHTELN 10 PH PHTELN 11 PH PHTELN 12
PH PHTELN 13 PH PHTELN 14 PH PHTELN 15 PH PHTELN 16USER
GROUP
NUMBER
(UGN)TELEPHONE NUMBER OR
PHANTOM TELEPHONE NUMBER
(TELN/PHTELN)
1
11
UGN TELN PH PHTELN 1 PH PHTELN 2 PH PHTELN 3 PH PHTELN 4
PH PHTELN 5 PH PHTELN 6...

NDA-24298 CHAPTER 4
Page 425
Issue 1
APHNN : Assignment of Phantom Station Number for NDM
APHNN: Assignment of Phantom Station Number for NDM

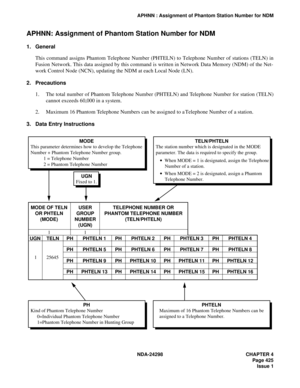

1. General
This command assigns Phantom Telephone Number (PHTELN) to Telephone Number of stations (TELN) in
Fusion Network. This data assigned by this command is written in Network Data Memory (NDM) of the Net-
work Control Node (NCN), updating the NDM at each Local Node (LN).
2. Precautions
1. The total number of Phantom Telephone Number (PHTELN) and Telephone...

CHAPTER 4 NDA-24298
Page 426
Issue 1
APHNN : Assignment of Phantom Station Number for NDM

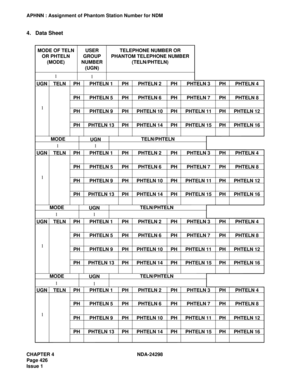

4. Data Sheet
MODE OF TELN
OR PHTELN
(MODE)
UGN TELN PH PHTELN 1 PH PHTELN 2 PH PHTELN 3 PH PHTELN 4
PH PHTELN 5 PH PHTELN 6 PH PHTELN 7 PH PHTELN 8
PH PHTELN 9 PH PHTELN 10 PH PHTELN 11 PH PHTELN 12
PH PHTELN 13 PH PHTELN 14 PH PHTELN 15 PH PHTELN 16USER
GROUP
NUMBER
(UGN)TELEPHONE NUMBER OR
PHANTOM TELEPHONE NUMBER
(TELN/PHTELN)
1
11
UGN TELN PH PHTELN 1 PH PHTELN 2 PH PHTELN 3 PH PHTELN 4
PH PHTELN 5 PH PHTELN 6...
