Panasonic Projector PT-RS11K User Manual

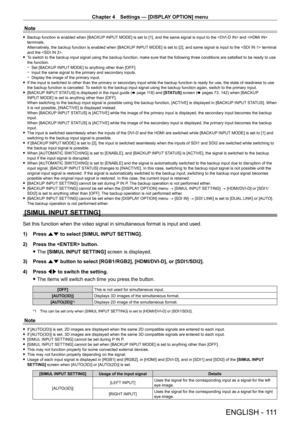

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 111
Note
 fBackup function is enabled when [BACKUP  INPUT MODE] is set to [1], and the same signal is input to the  and
terminals.
Alternatively, the backup function is enabled when [BACKUP INPUT MODE] is set to [2], and same signal is input to the  terminal
and the .
 f T

o switch to the backup input signal using the backup function, make sure that the following three conditions are satisfied to be ready to use
the function.
 g Set [BACKUP...

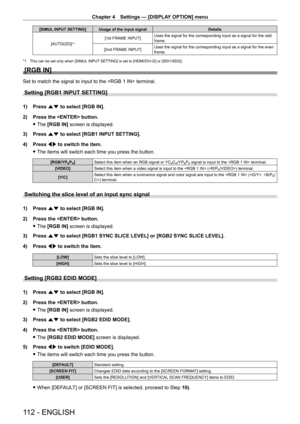

Chapter 4 Settings — [DISPLAY OPTION] menu
112 - ENGLISH
[SIMUL INPUT SETTING] Usage of the input signalDetails
[AUTO(2D)]
*1[1st FRAME INPUT] Uses the signal for the corresponding input as a signal for the odd
frame.
[2nd FRAME INPUT] Uses the signal for the corresponding input as a signal for the even
frame.
*1 This can be set only when [SIMUL
 INPUT SETTING] is set to [HDMI/DVI-D] or [SDI1/SDI2].
[RGB IN]
Set to match the signal to input to the  terminal.
Setting [RGB1 INPUT SETTING]
1) Press as to...

Chapter 4 Settings — [DISPLAY OPTION] menu

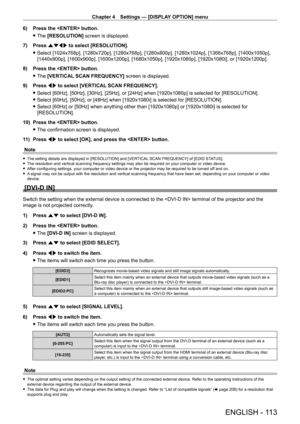

ENGLISH - 113
6) Press the  button.
 fThe

[RESOLUTION] screen is displayed.
7)

Press
 asqw to select [RESOLUTION].
 fSelect [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p],
[1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].
8)


Press the  button.
 fThe

[VERTICAL SCAN FREQUENCY] screen is displayed.
9)

Press
 qw to select [VERTICAL SCAN FREQUENCY].
 fSelect...

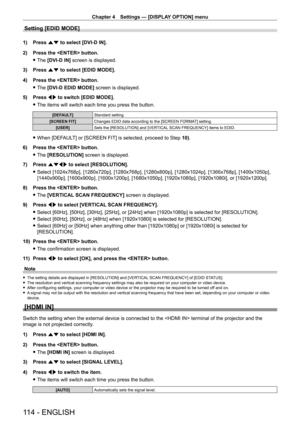

Chapter 4 Settings — [DISPLAY OPTION] menu
114 - ENGLISH
Setting [EDID MODE]
1) Press as to select [DVI-D IN].
2)
Press the  button.
 fThe

[DVI-D IN] screen is displayed.
3)

Press
 as to select [EDID MODE].
4)

Press the  button.
 fThe

[DVI-D EDID MODE] screen is displayed.
5)

Press
 qw to switch [EDID MODE].
 fThe items will switch each time you press the button.
[DEFAULT] Standard setting.
[SCREEN FIT] Changes EDID data according to the [SCREEN FORMAT] setting.
[USER] Sets the [RESOLUTION]...

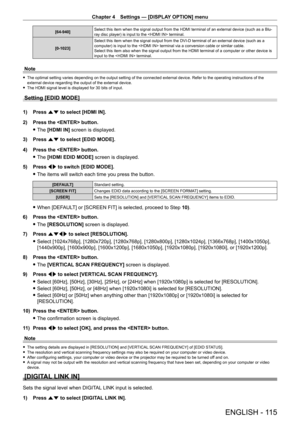

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 115
[64-940]Select this item when the signal output from the HDMI terminal of an external device (such as a Blu-
ray disc player) is input to the  terminal.
[0-1023] Select this item when the signal output from the DVI
- D terminal of an external device (such as a
computer) is input to the  terminal via a conversion cable or similar cable.
Select this item also when the signal output from the HDMI terminal of a computer or other device is
input to...

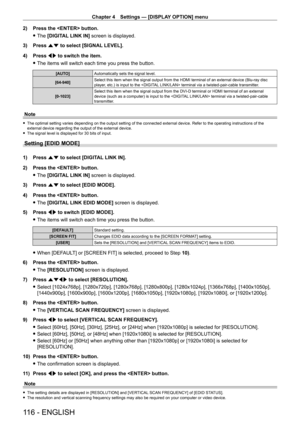

Chapter 4 Settings — [DISPLAY OPTION] menu
116 - ENGLISH
2) Press the  button.
 fThe

[DIGITAL LINK IN] screen is displayed.
3)

Press
 as to select [SIGNAL LEVEL].
4)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[AUTO] Automatically sets the signal level.
[64-940] Select this item when the signal output from the HDMI terminal of an external device (Blu-ray disc
player, etc.) is input to the  terminal via a twisted-pair-cable transmitter.
[0-1023] Select...

Chapter 4 Settings — [DISPLAY OPTION] menu

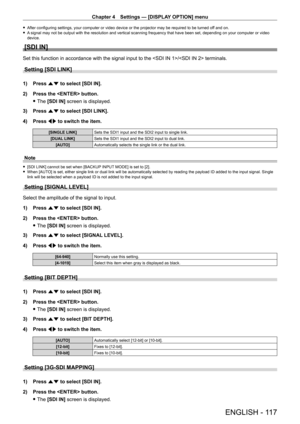

ENGLISH - 117
 fAfter configuring settings, your computer or video device or the projector may be required to be turned of f and on. fA
 signal may not be output with the resolution and vertical scanning frequency that have been set, depending on your computer or video
device.
[SDI IN]
Set this function in accordance with the signal input to the / terminals.
Setting [SDI LINK]
1) Press  as to select [SDI IN].
2)
Press the  button.
 fThe

[SDI IN] screen is...

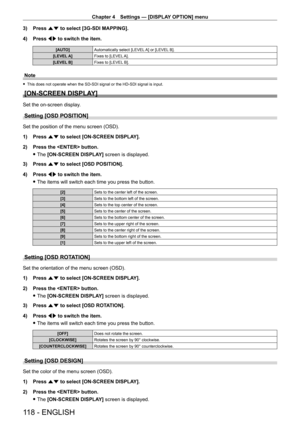

Chapter 4 Settings — [DISPLAY OPTION] menu
118 - ENGLISH
3) Press as to select [3G-SDI MAPPING].
4)
Press
 qw to switch the item.
[AUTO] Automatically select [LEVEL A] or [LEVEL B].
[LEVEL A] Fixes to [LEVEL A].
[LEVEL B] Fixes to [LEVEL B].
Note
 fThis does not operate when the SD - SDI signal or the HD - SDI signal is input.
[ON-SCREEN DISPLAY]
Set the on-screen display.
Setting [OSD POSITION]
Set the position of the menu screen (OSD).
1)

Press
 as to select [ON-SCREEN DISPLAY].
2)

Press the...

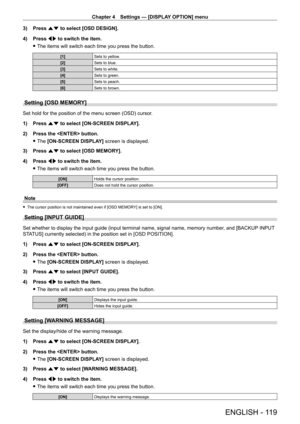

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 119
3) Press as to select [OSD DESIGN].
4)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[1] Sets to yellow.
[2] Sets to blue.
[3] Sets to white.
[4] Sets to green.
[5] Sets to peach.
[6] Sets to brown.
Setting [OSD MEMORY]
Set hold for the position of the menu screen (OSD) cursor.
1)

Press
 as to select [ON-SCREEN DISPLAY].
2)

Press the  button.
 fThe

[ON-SCREEN DISPLAY] screen is displayed.
3)

Press...

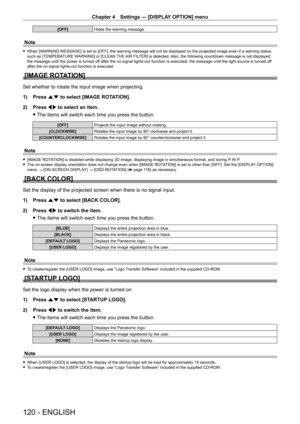

Chapter 4 Settings — [DISPLAY OPTION] menu
120 - ENGLISH
[OFF]Hides the warning message.
Note
 fWhen [WARNING MESSAGE] is set to [OFF], the warning message will not be displayed on the projected image even if a warning status
such as [TEMPERATURE WARNING] or [CLEAN THE AIR FILTER] is detected. Also, the following countdown message is not displayed:
the message until the power is turned off after the no signal lights-out function is executed; the message until the light source is turned off
after the...
