Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 131

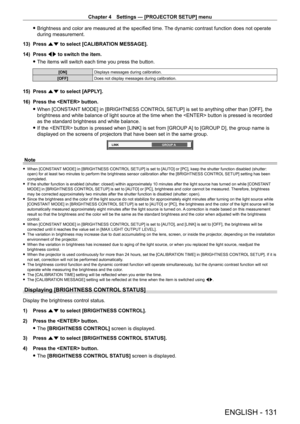

 fBrightness and color are measured at the specified time.  The dynamic contrast function does not operate
during measurement.
13)

Press
 as to select [CALIBRATION MESSAGE].
14)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[ON] Displays messages during calibration.
[OFF] Does not display messages during calibration.
15) Press as to select [APPLY].
16)
Press the  button.
 fWhen [CONST

ANT MODE] in...

Chapter 4 Settings — [PROJECTOR SETUP] menu
132 - ENGLISH

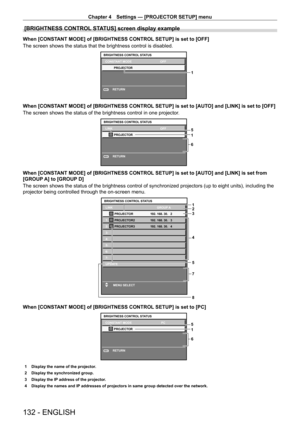

[BRIGHTNESS CONTROL STATUS] screen display example
When [CONSTANT MODE] of [BRIGHTNESS CONTROL SETUP] is set to [OFF]
The screen shows the status that the brightness control is disabled.
1
RETURN
BRIGHTNESS CONTROL STATUS
CONSTANT MODE PROJECTOR OFFMENU
When [CONSTANT MODE] of [BRIGHTNESS CONTROL SETUP] is set to [AUTO] and [LINK] is set to [OFF]
The screen shows the status of the brightness control in one projector.
5
1
6
RETURN
LINK
PROJECTOR...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 133

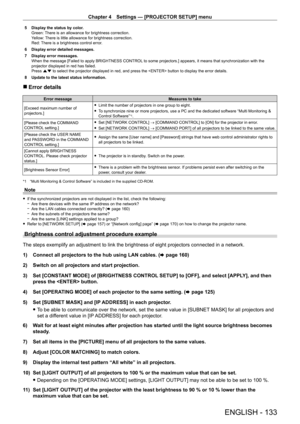

5 Display the status by color.
Green: There is an allowance for brightness correction.
Yellow: There is little allowance for brightness correction.
Red: There is a brightness control error.
6

Display error detailed messages.
7


Display error messages.
When the message [Failed to apply BRIGHTNESS CONTROL

 to some projectors.] appears, it means that synchronization with the
projector displayed in red has failed.
Press as to select the...

Chapter 4 Settings — [PROJECTOR SETUP] menu
134 - ENGLISH

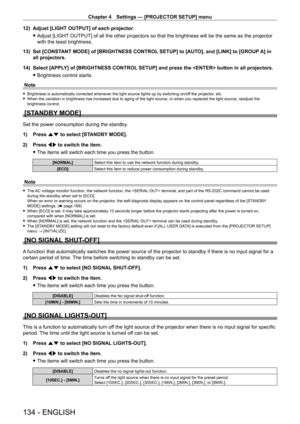

12) Adjust [LIGHT OUTPUT] of each projector.
 fAdjust [LIGHT

 OUTPUT] of all the other projectors so that the brightness will be the same as the projector
with the least brightness.
13)

Set [CONST
 ANT MODE] of [BRIGHTNESS CONTROL SETUP] to [AUTO], and [LINK] to [GROUP A] in
all projectors.
14)

Select [APPL
 Y] of [BRIGHTNESS CONTROL SETUP] and press the  button in all projectors.
 fBrightness control starts.
Note
 f Brightness is...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 135
Note

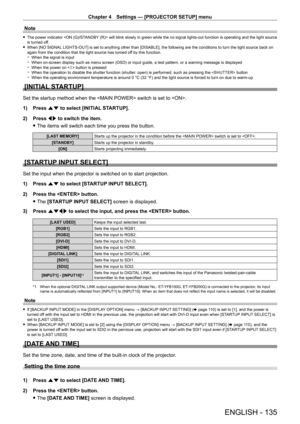

 fThe power indicator  will blink slowly in green while the no signal lights-out function is operating and the light source
is turned off.
 f When [NO SIGNAL

 LIGHTS-OUT] is set to anything other than [DISABLE], the following are the conditions to turn the light source back on
again from the condition that the light source has turned off by this function.
 g When the signal is input gWhen on-screen display such as menu screen (OSD) or...

Chapter 4 Settings — [PROJECTOR SETUP] menu
136 - ENGLISH

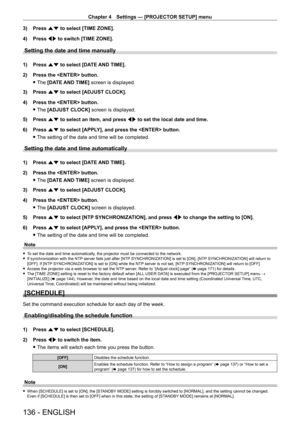

3) Press as to select [TIME ZONE].
4)
Press
 qw to switch [TIME ZONE].
Setting the date and time manually
1) Press as to select [DATE AND TIME].
2)
Press the  button.
 fThe

[DATE AND TIME] screen is displayed.
3)

Press
 as to select [ADJUST CLOCK].
4)

Press the  button.
 fThe

[ADJUST CLOCK] screen is displayed.
5)

Press
 as to select an item, and press qw to set the local date and time.
6)

Press
 as to select [APPLY], and press...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 137

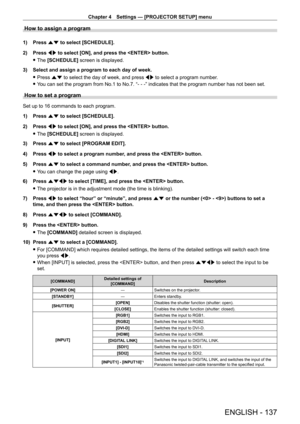

How to assign a program
1) Press as to select [SCHEDULE].
2)
Press
 qw to select [ON], and press the  button.
 fThe

[SCHEDULE] screen is displayed.
3)

Select and assign a program to each day of week.
 fPress

as to select the day of week, and press qw to select a program number.
 fY

ou can set the program from No.1 to No.7. “ -   -   - ” indicates that the program number has not been set.
How to set a program
Set up to 16 commands to each...

Chapter 4 Settings — [PROJECTOR SETUP] menu
138 - ENGLISH

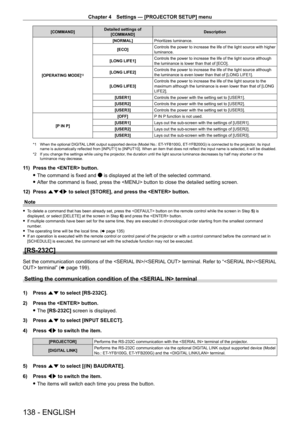

[COMMAND]Detailed settings of
[COMMAND] Description
[OPERATING MODE]
*2
[NORMAL] Prioritizes luminance.
[ECO] Controls the power to increase the life of the light source with higher \
luminance.
[LONG LIFE1] Controls the power to increase the life of the light source although
the luminance is lower than that of [ECO].
[LONG LIFE2] Controls the power to increase the life of the light source although
the luminance is even lower than that of...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 139

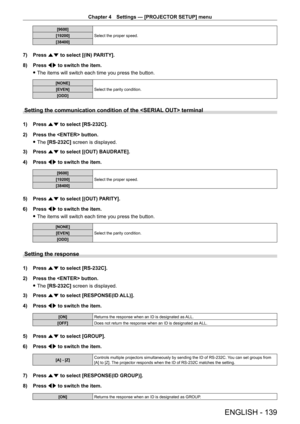

[9600]Select the proper speed.
[19200]
[38400]
7) Press  as to select [(IN) PARITY].
8)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[NONE]
Select the parity condition.
[EVEN]
[ODD]
Setting the communication condition of the  terminal
1) Press  as to select [RS-232C].
2)
Press the  button.
 fThe

[RS-232C] screen is displayed.
3)

Press
 as to select [(OUT) BAUDRATE].
4)

Press
 qw to switch the...

Chapter 4 Settings — [PROJECTOR SETUP] menu
140 - ENGLISH

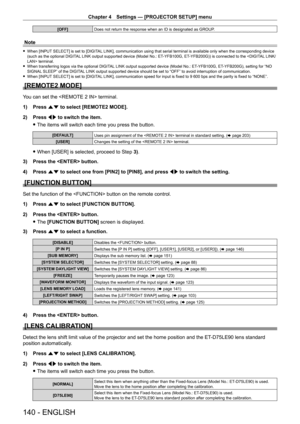

[OFF]Does not return the response when an ID is designated as GROUP.
Note
 fWhen [INPUT  SELECT] is set to [DIGITAL LINK], communication using that serial terminal is available only when the corresponding device
(such as the optional DIGITAL LINK output supported device (Model No.: ET- YFB100G, ET- YFB200G)) is connected to the  terminal.
 f When transferring logos via the optional DIGIT

AL LINK output supported device (Model No.: ET
-
 YFB100G,...
