Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 121
[UNIFORMITY]
Correct the brightness and color unevenness of the entire screen.
Setting each color
1) Press as to select [UNIFORMITY].
2)
Press the  button.
 fThe

[UNIFORMITY] screen is displayed.
3)

Press
 as to select [WHITE], [RED], [GREEN], or [BLUE].
4)

Press
 qw to adjust the level.
Item Operation AdjustmentRange of adjustment
[VERTICAL] Press w.
The lower-side color becomes
pale, or the upper-side color
becomes dark.
-127 - +127...

Chapter 4 Settings — [DISPLAY OPTION] menu
122 - ENGLISH

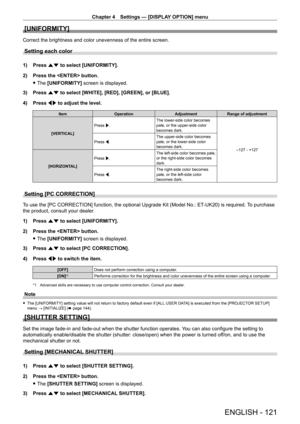

4) Press qw to switch the item.
[ENABLE] Turns off the light source and closes the mechanical shutter when the shutter fu\
nction is enabled
(shutter: closed).
[DISABLE] Leaves the mechanical shutter open and turns off only the light source when the shutter function is
enabled (shutter: closed).
Note
 f
By closing the mechanical shutter , the malfunction of the DLP chip caused by high power laser ray entering the projection lens surface can
be...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 123
[OPEN]The projector goes into standby mode with the mechanical shutter opened \
when the projector is
switched off.
[CLOSE] The projector goes into standby mode with the mechanical shutter closed \
when the projector is
switched off.

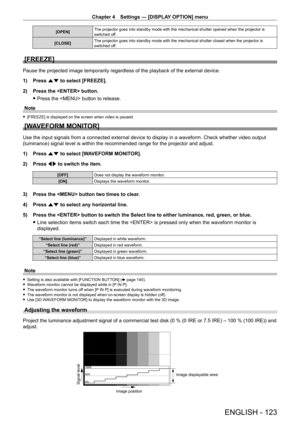

[FREEZE]
Pause the projected image temporarily regardless of the playback of the external device.
1)

Press
 as to select [FREEZE].
2)

Press the  button.
 fPress the  button to release.
Note
 f [FREEZE] is...

Chapter 4 Settings — [DISPLAY OPTION] menu
124 - ENGLISH

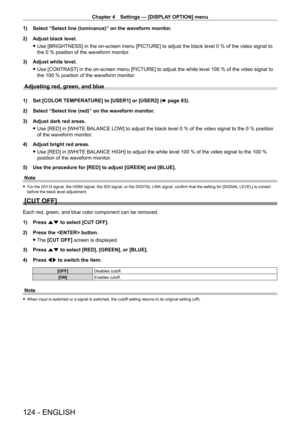

1) Select “Select line (luminance)” on the waveform monitor.
2)
Adjust black level.
 fUse [BRIGHTNESS] in the on-screen menu [PICTURE] to adjust the black level 0

  % of the video signal to
the 0
  % position of the waveform monitor.
3)

Adjust white level.
 fUse [CONTRAST] in the on-screen menu [PICTURE] to adjust the white level 100

  % of the video signal to
the 100
  % position of the waveform monitor.

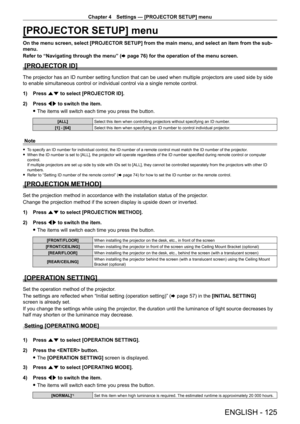

Adjusting red, green, and blue
1)...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 125
[PROJECTOR SETUP] menu
On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub-
menu.
Refer to “Navigating through the menu” (x
  page   76) for the operation of the menu screen.
[PROJECTOR ID]
The projector has an ID number setting function that can be used when mu\
ltiple projectors are used side by side
to enable simultaneous control or individual control via a single remote\
 control.
1)

Press
 as...

Chapter 4 Settings — [PROJECTOR SETUP] menu
126 - ENGLISH

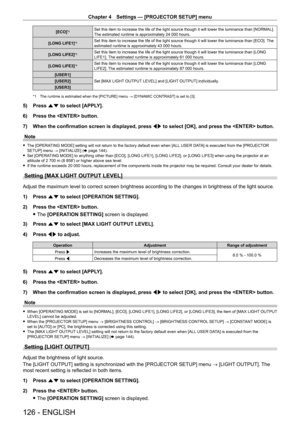

[ECO]*1Set this item to increase the life of the light source though it will lower the luminance than [NORMAL].
The estimated runtime is approximately 24  000 hours.
[LONG LIFE1]
*1Set this item to increase the life of the light source though it will lower the luminance than [ECO].  The
estimated runtime is approximately 43   000 hours.
[LONG LIFE2]
*1Set this item to increase the life of the light source though it will lower the luminance than...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 127

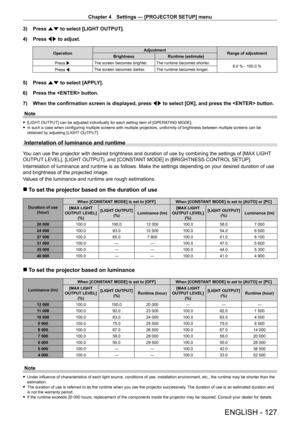

3) Press as to select [LIGHT OUTPUT].
4)
Press
 qw to adjust.
Operation Adjustment
Range of adjustment
Brightness Runtime (estimate)
Press w. The screen becomes brighter. The runtime becomes shorter.
8.0
  % - 100.0   %
Press q. The screen becomes darker. The runtime becomes longer.
5) Press
as to select [APPLY].
6)
Press the  button.
7)


When the confirmation screen is displayed, press  qw

 to select [OK], and press the  button.
Note
 f...

Chapter 4 Settings — [PROJECTOR SETUP] menu
128 - ENGLISH

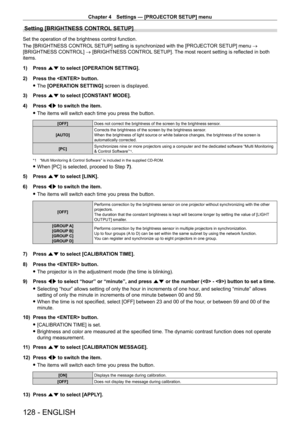

Setting [BRIGHTNESS CONTROL SETUP]
Set the operation of the brightness control function.
The [BRIGHTNESS CONTROL SETUP] setting is synchronized with the [PROJECTOR SETUP] menu →
[BRIGHTNESS CONTROL] → [BRIGHTNESS CONTROL SETUP]. The most recent setting is reflected in both
items.
1)

Press
 as to select [OPERATION SETTING].
2)

Press the  button.
 fThe

[OPERATION SETTING]  screen is displayed.
3)

Press
 as to select [CONSTANT MODE].
4)...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 129
14) Press the  button.
 fWhen [CONST

ANT MODE] in [BRIGHTNESS CONTROL SETUP] is set to anything other than [OFF], the
brightness and white balance of light source at the time when the  button is pressed is recorded
as the standard brightness and white balance.
 f If the  button is pressed when [LINK] is set from [GROUP

 A] to [GROUP D], the group name is
displayed on the screens of projectors that have been set in the same gr\
oup.
LINK GROUP...

Chapter 4 Settings — [PROJECTOR SETUP] menu
130 - ENGLISH

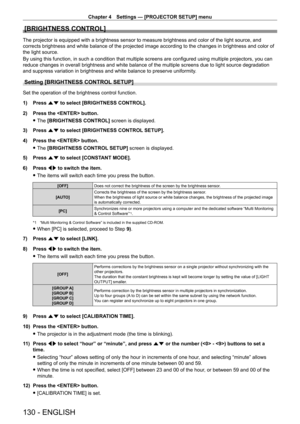

[BRIGHTNESS CONTROL]
The projector is equipped with a brightness sensor to measure brightness and color of the light source, and
corrects brightness and white balance of the projected image according t\
o the changes in brightness and color of
the light source.
By using this function, in such a condition that multiple screens are configured using multiple projectors, you can
reduce changes in overall brightness and white balance of the multiple...
