Edit File Mode
91
Advanced
Features
To add documents into the file, follow the steps below.
NOTE1. Your machine cannot add the document to a file while it is being sent or when waiting to redial.

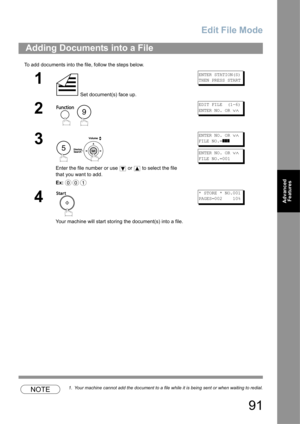

Adding Documents into a File
1
 Set document(s) face up.
ENTER STATION(S)
THEN PRESS START
2

EDIT FILE  (1-6)
ENTER NO. OR
∨∧
3

Enter the file number or use   or   to select the file
that you want to add.
Ex:
ENTER NO. OR ∨∧
FILE NO.=]]]
ENTER NO. OR ∨∧
FILE NO.=001
4
Your machine will start storing the...

Edit File Mode
92

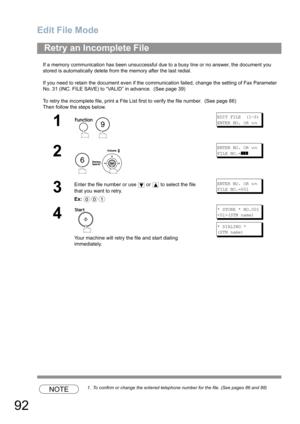

If a memory communication has been unsuccessful due to a busy line or no answer, the document you
stored is automatically delete from the memory after the last redial.
If you need to retain the document even if the communication failed, change the setting of Fax Parameter
No. 31 (INC. FILE SAVE) to “VALID” in advance.  (See page 39)
To retry the incomplete file, print a File List first to verify the file number.  (See page 86)
Then follow the steps below.
NOTE1. To confirm or change...

93
Advanced
Features

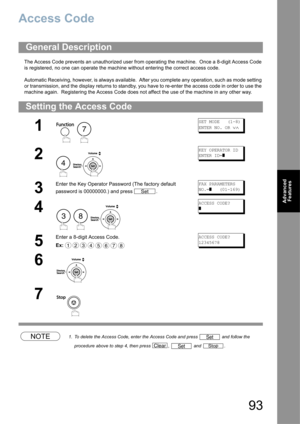

Access Code
The Access Code prevents an unauthorized user from operating the machine.  Once a 8-digit Access Code
is registered, no one can operate the machine without entering the correct access code.
Automatic Receiving, however, is always available.  After you complete any operation, such as mode setting
or transmission, and the display returns to standby, you have to re-enter the access code in order to use the
machine again.  Registering the Access Code does not affect the...

Access Code
94

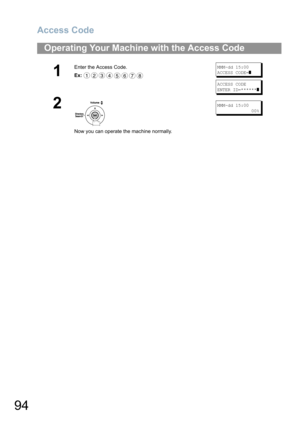

Operating Your Machine with the Access Code
1
Enter the Access Code.
Ex:MMM-dd 15:00
ACCESS CODE=
]
ACCESS CODE
ENTER ID=******
]
2
Now you can operate the machine normally.
MMM-dd 15:00
             00%
12345678

95
Advanced
Features

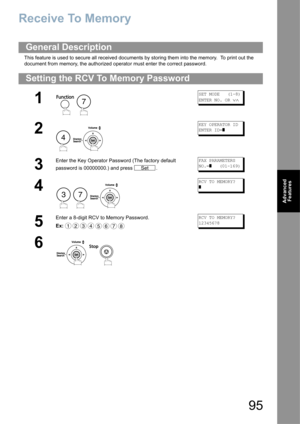

Receive To Memory
This feature is used to secure all received documents by storing them into the memory.  To print out the
document from memory, the authorized operator must enter the correct password.
General Description
Setting the RCV To Memory Password
1

SET MODE   (1-8)
ENTER NO. OR
∨∧
2

KEY OPERATOR ID
ENTER ID=
]
3
Enter the Key Operator Password (The factory default
password is 00000000.) and press  .FAX PARAMETERS
NO.=
]   (01-169)
4

RCV TO MEMORY?
]
5
Enter a...

Receive To Memory
96
NOTE1. When the memory overflows, the machine will stop receiving and release the line.  The
machine will not answer the next incoming call until there is space available in the memory.

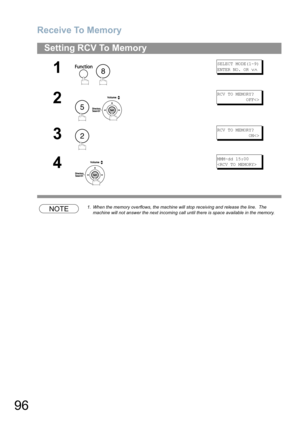

Setting RCV To Memory
1

SELECT MODE(1-9)
ENTER NO. OR
∨∧
2

RCV TO MEMORY?
           OFF
3
RCV TO MEMORY?
            ON
4
MMM-dd 15:00

8
5
2

Receive To Memory
97
Advanced
Features

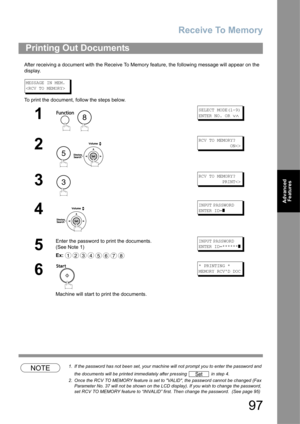

After receiving a document with the Receive To Memory feature, the following message will appear on the
display.
MESSAGE IN MEM.

To print the document, follow the steps below.
NOTE1. If the password has not been set, your machine will not prompt you to enter the password and
the documents will be printed immediately after pressing   in step 4.
2. Once the RCV TO MEMORY feature is set to VALID, the password cannot be changed (Fax
Parameter No. 37 will not be...

98

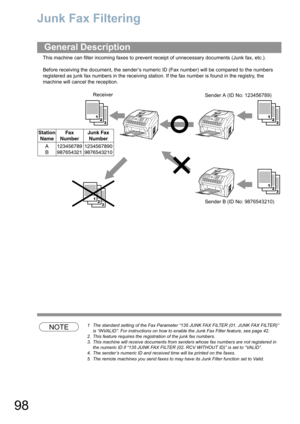

Junk Fax Filtering
This machine can filter incoming faxes to prevent receipt of unnecessary documents (Junk fax, etc.).
Before receiving the document, the sender’s numeric ID (Fax number) will be compared to the numbers
registered as junk fax numbers in the receiving station. If the fax number is found in the registry, the
machine will cancel the reception.
NOTE1 The standard setting of the Fax Parameter “135 JUNK FAX FILTER (01. JUNK FAX FILTER)”
is “INVALID”. For instructions on how to enable the...

Junk Fax Filtering
99
Advanced
Features
Set the Junk Fax Filter to prevent receiving unnecessary documents. When set to “VALID”, the machine will
not receive faxes from senders whose numeric ID has been registered as junk fax number.
It is required to register the junk fax number (up to 30 fax numbers) for reception refusal to make this
function effective. (See page 42)

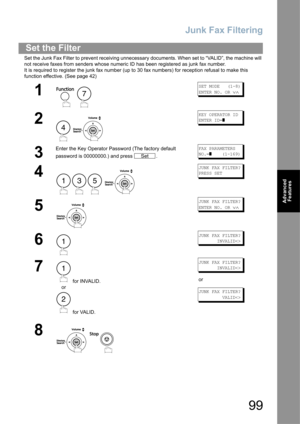

Set the Filter
1

SET MODE   (1-8)
ENTER NO. OR
∨∧
2

KEY OPERATOR ID
ENTER ID=
]
3
Enter the Key Operator Password (The factory...

Junk Fax Filtering
100
When set to “VALID”, the machine will receive faxes from senders without numeric ID registered. When set
to “INVALID”, reception is denied in cases where it is not possible to receive number IDs.
This setting is available only when “135 JUNK FAX FILTER (01. JUNK FAX FILTER)” is set to ”VALID”.

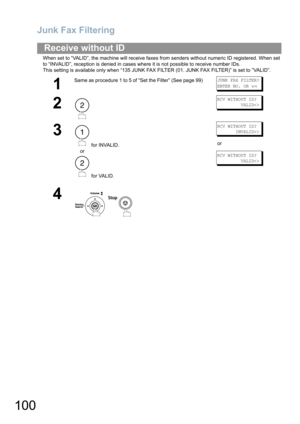

Receive without ID
1
Same as procedure 1 to 5 of “Set the Filter” (See page 99)JUNK FAX FILTER?
ENTER NO. OR
∨∧
2
RCV WITHOUT ID?
         VALID
3
 for INVALID.
or
 for VALID.
RCV WITHOUT...
