Panasonic Digital Copier Dp 2500/3000 Internet Fax Operating Instructions

PROGRAMMING YOUR MACHINE
PROGRAMMING
YOUR MACHINE
51

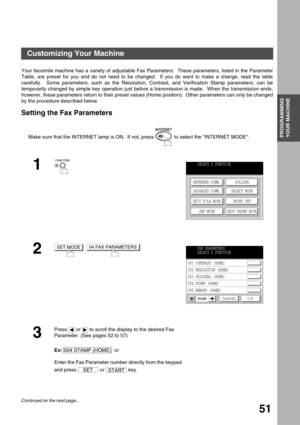

Customizing Your Machine
Your facsimile machine has a variety of adjustable Fax Parameters.  These parameters, listed in the Parameter
Table, are preset for you and do not need to be changed.  If you do want to make a change, read the table
carefully.  Some parameters, such as the Resolution, Contrast, and Verification Stamp parameters, can be
temporarily changed by simple key operation just before a transmission is made.  When the transmission ends,...

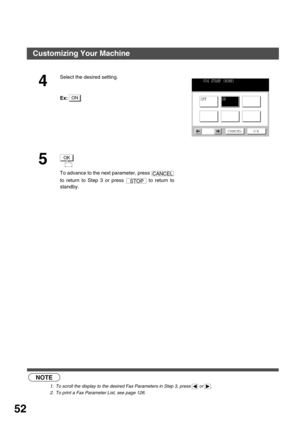

PROGRAMMING YOUR MACHINE
52
  (see Note 1)  (see Note 2)
4
Select the desired setting.
Ex:
5
To advance to the next parameter, press
to return to Step 3 or press   to return to
standby.
NOTE
1. To scroll the display to the desired Fax Parameters in Step 3, press   or  .
2. To print a Fax Parameter List, see page 126.
ON
004 STAMP (HOME)
ON
CANCEL O K
OFF
OK
CANCEL
STOP
Customizing Your Machine

PROGRAMMING YOUR MACHINE
PROGRAMMING
YOUR MACHINE
53

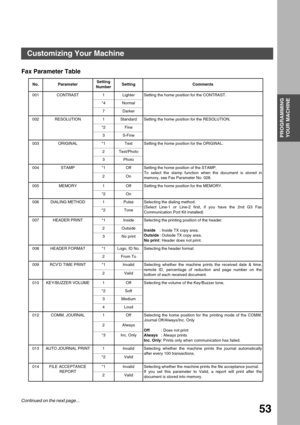

Fax Parameter Table
No. ParameterSetting
NumberSetting Comments
001 CONTRAST 1 Lighter Setting the home position for the CONTRAST.
*4 Normal
7Darker
002 RESOLUTION 1 Standard Setting the home position for the RESOLUTION.
*2 Fine
3S-Fine
003 ORIGINAL *1 Text Setting the home position for the ORIGINAL.
2 Text/Photo
3 Photo
004 STAMP *1 Off Setting the home position of the STAMP.
To select the stamp function when the document is stored in
memory, see Fax...

PROGRAMMING YOUR MACHINE
54
017 RECEIVE MODE 1 Manual Setting the reception mode to automatic or manual.
*2 Auto
022 SUBSTITUTE RCV 1 Invalid Selecting whether the machine receives to memory when the
recording paper runs out, toner runs out or the recording paper is
jammed. *2 Valid
024 PRINT REDUCTION 1 Fixed Selecting the print reduction mode.
Fixed: Reduce received document according to setting of
Parameter No. 025.
Auto: Reduce received document according to the length of
received originals. *2 Auto...

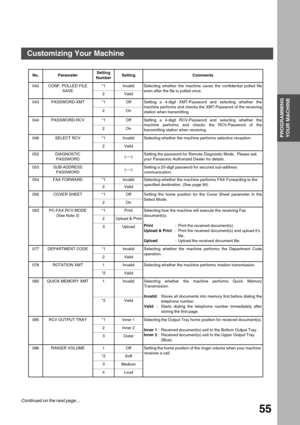

PROGRAMMING YOUR MACHINE
PROGRAMMING
YOUR MACHINE
55
042 CONF. POLLED FILE
SAVE*1 Invalid Selecting whether the machine saves the confidential polled file
even after the file is polled once.
2 Valid
043 PASSWORD-XMT *1 Off Setting a 4-digit XMT-Password and selecting whether the
machine performs and checks the XMT-Password of the receiving
station when transmitting.   2On
044 PASSWORD-RCV *1 Off Setting a 4-digit RCV-Password and selecting whether the
machine performs and checks the RCV-Password of...

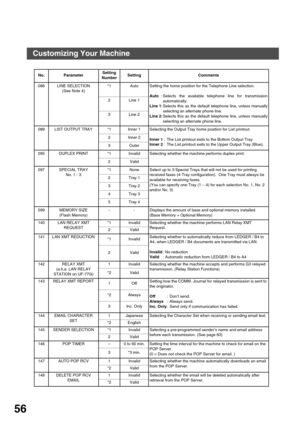

PROGRAMMING YOUR MACHINE
56
Customizing Your Machine
088 LINE SELECTION
(See Note 4)*1 Auto Setting the home position for the Telephone Line selection.
Auto: Selects the available telephone line for transmission
automatically.
Line 1: Selects this as the default telephone line, unless manually
selecting an alternate phone line.
Line 2: Selects this as the default telephone line, unless manually
selecting an alternate phone line. 2 Line 1
3 Line 2
089 LIST OUTPUT TRAY *1 Inner 1 Selecting the Output...

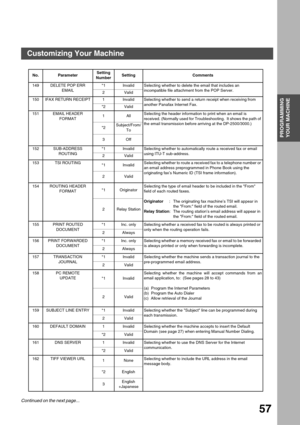

PROGRAMMING YOUR MACHINE
PROGRAMMING
YOUR MACHINE
57
149 DELETE POP ERR
EMAIL*1 Invalid Selecting whether to delete the email that includes an
incompatible file attachment from the POP Server.
2 Valid
150 IFAX RETURN RECEIPT 1 Invalid Selecting whether to send a return receipt when receiving from
another Panafax Internet Fax.
*2 Valid
151 EMAIL HEADER
FORMAT1AllSelecting the header information to print when an email is
received. (Normally used for Troubleshooting.  It shows the path of
the email...

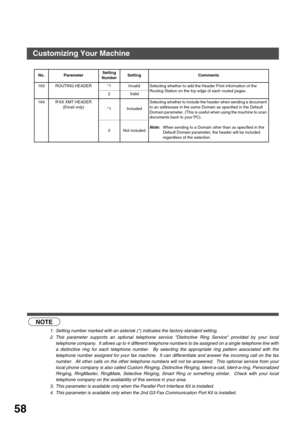

PROGRAMMING YOUR MACHINE
58
Customizing Your Machine
 (see Note 1)
 (see Note 2) (see Note 3) (see Note 4)
163 ROUTING HEADER *1 Invalid Selecting whether to add the Header Print information of the
Routing Station on the top edge of each routed pages.
2Valid
164 IFAX XMT HEADER
(Email only)
*1 IncludedSelecting whether to include the header when sending a document
to an addressee in the same Domain as specified in the Default
Domain parameter. (This is useful when using the machine to scan
documents...

BASIC
OPERATIONS
59

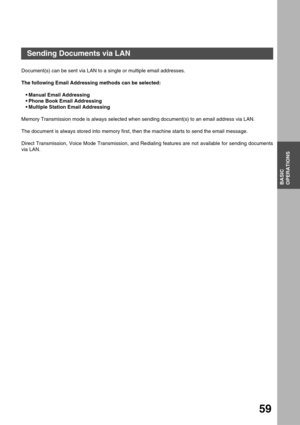

Basic Operations
Sending Documents via LAN
Document(s) can be sent via LAN to a single or multiple email addresses.
The following Email Addressing methods can be selected:
Manual Email Addressing
Phone Book Email Addressing
Multiple Station Email Addressing
Memory Transmission mode is always selected when sending document(s) to an email address via LAN.
The document is always stored into memory first, then the machine starts to send the email message.
Direct Transmission, Voice...

BASIC OPERATIONS
60

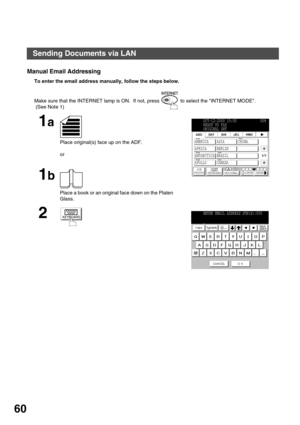

Manual Email Addressing
To enter the email address manually, follow the steps below.
Make sure that the INTERNET lamp is ON.  If not, press   to select the INTERNET MODE.
 (See Note 1)
1a
Place original(s) face up on the ADF.
or
1b
Place a book or an original face down on the Platen
Glass.
2
OCT-12-2000 15:00            00%
READY TO FAX
ORIGINAL SET
JOB
STATUSMEMORY XMTORIGINALLIGHTER DARKER
1/1
AMERICA ASIA CHINA
AFRICA BERLIN
ANTARCTICA BRAZIL
APOLLO CANADA
KEYBOARD...
