Panasonic Digital Copier Dp 2500/3000 Internet Fax Operating Instructions

BASIC OPERATIONS
BASIC
OPERATIONS

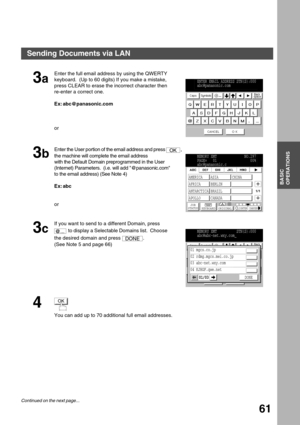

61
3a
Enter the full email address by using the QWERTY
keyboard.  (Up to 60 digits) If you make a mistake,
press CLEAR to erase the incorrect character then
re-enter a correct one.
Ex: [email protected]
or
3b
Enter the User portion of the email address and press  ,
the machine will complete the email address
with the Default Domain preprogrammed in the User
(Internet) Parameters.  (i.e. will add @panasonic.com
to the email address) (See Note 4)
Ex: abc
or
3c
If you...

BASIC OPERATIONS

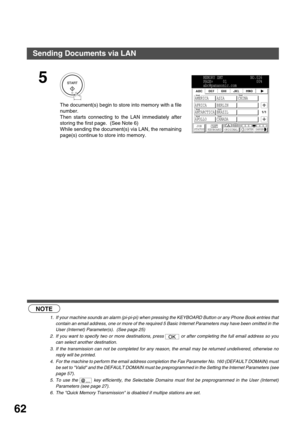

62
 (see Note 1) (see Note 2) (see Note 3) (see Note 4) (see Note 5)         (see Note 6)
5
The document(s) begin to store into memory with a file
number.
Then starts connecting to the LAN immediately after
storing the first page.  (See Note 6)
While sending the document(s) via LAN, the remaining
page(s) continue to store into memory.
NOTE
1. If your machine sounds an alarm (pi-pi-pi) when pressing the KEYBOARD Button or any Phone Book entries that
contain an email address, one...

BASIC OPERATIONS
BASIC
OPERATIONS
63
Phone Book Email Addressing
Phone Book Addressing allows you to send email(s) by entering the full email address with a single key.  To
use this method, you must first pre-program the email addresses into the Phone Book.
Make sure that the INTERNET lamp is ON.  If not, press   to select the INTERNET MODE.
1a
Place original(s) face up on the ADF.
or
1b
Place a book or an original face down on the Platen
Glass.
2
Press the appropriate Index Tab.
Ex:
3
Press the key...

BASIC OPERATIONS
64
 (see Note 1)
 (see Note 2)
 (see Note 3)
5

The document(s) begin to store into memory with a file
number.
Then starts connecting to the LAN immediately after
storing the first page.  (See Note 3)
While sending the document(s) via LAN, the
remaining page(s) continue to store into memory.
NOTE
1. If the transmission cannot be completed for any reason, the email may be returned undeliveredl; otherwise no
reply will be printed.
2. The unit will accept a combination of...

BASIC OPERATIONS
BASIC
OPERATIONS
65

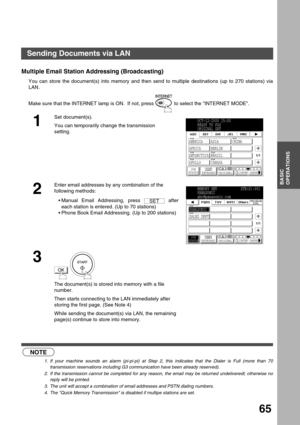

Multiple Email Station Addressing (Broadcasting)
You can store the document(s) into memory and then send to multiple destinations (up to 270 stations) via
LAN.
 (see Note 1)  (see Note 2) (see Note 3)             (see Note 4)Make sure that the INTERNET lamp is ON.  If not, press   to select the INTERNET MODE.
1
Set document(s).
You can temporarily change the transmission
setting.
2
Enter email addresses by any combination of the
following methods:
Manual Email...

BASIC OPERATIONS
66

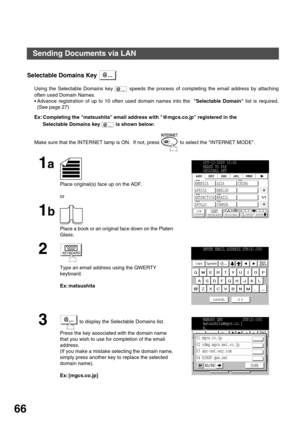

Selectable Domains Key
Using the Selectable Domains key   speeds the process of completing the email address by attaching
often used Domain Names.
Advance registration of up to 10 often used domain names into the  Selectable Domain list is required.
(See page 27)
Ex: Completing the matsushita email address with @mgcs.co.jp registered in the
Selectable Domains key   is shown below:
Make sure that the INTERNET lamp is ON.  If not, press   to select the INTERNET MODE.
1a
Place...

BASIC OPERATIONS
BASIC
OPERATIONS

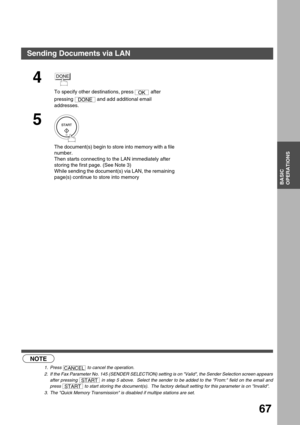

67
 (see Note 1)
 (see Note 2)            (see Note 3)
4
To specify other destinations, press   after
pressing   and add additional email
addresses.
5
The document(s) begin to store into memory with a file
number.
Then starts connecting to the LAN immediately after
storing the first page. (See Note 3)
While sending the document(s) via LAN, the remaining
page(s) continue to store into memory
NOTE
1. Press   to cancel the operation.
2. If the Fax Parameter No. 145...

BASIC OPERATIONS
68

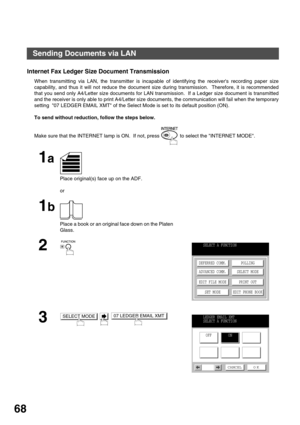

Internet Fax Ledger Size Document Transmission
When transmitting via LAN, the transmitter is incapable of identifying the receivers recording paper size
capability, and thus it will not reduce the document size during transmission.  Therefore, it is recommended
that you send only A4/Letter size documents for LAN transmission.  If a Ledger size document is transmitted
and the receiver is only able to print A4/Letter size documents, the communication will fail when the temporary
setting...

BASIC OPERATIONS
BASIC
OPERATIONS
69

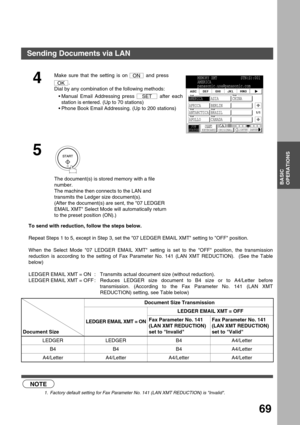

To send with reduction, follow the steps below.
Repeat Steps 1 to 5, except in Step 3, set the 07 LEDGER EMAIL XMT setting to OFF position.
When the Select Mode 07 LEDGER EMAIL XMT setting is set to the OFF position, the transmission
reduction is according to the setting of Fax Parameter No. 141 (LAN XMT REDUCTION).  (See the Table
below)
LEDGER EMAIL XMT = ON : Transmits actual document size (without reduction).
LEDGER EMAIL XMT = OFF : Reduces LEDGER size document...

BASIC OPERATIONS
70

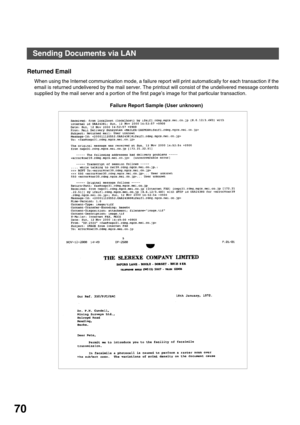

Returned Email
When using the Internet communication mode, a failure report will print automatically for each transaction if the
email is returned undelivered by the mail server. The printout will consist of the undelivered message contents
supplied by the mail server and a portion of the first page’s image for that particular transaction.
Failure Report Sample (User unknown)
Sending Documents via LAN
